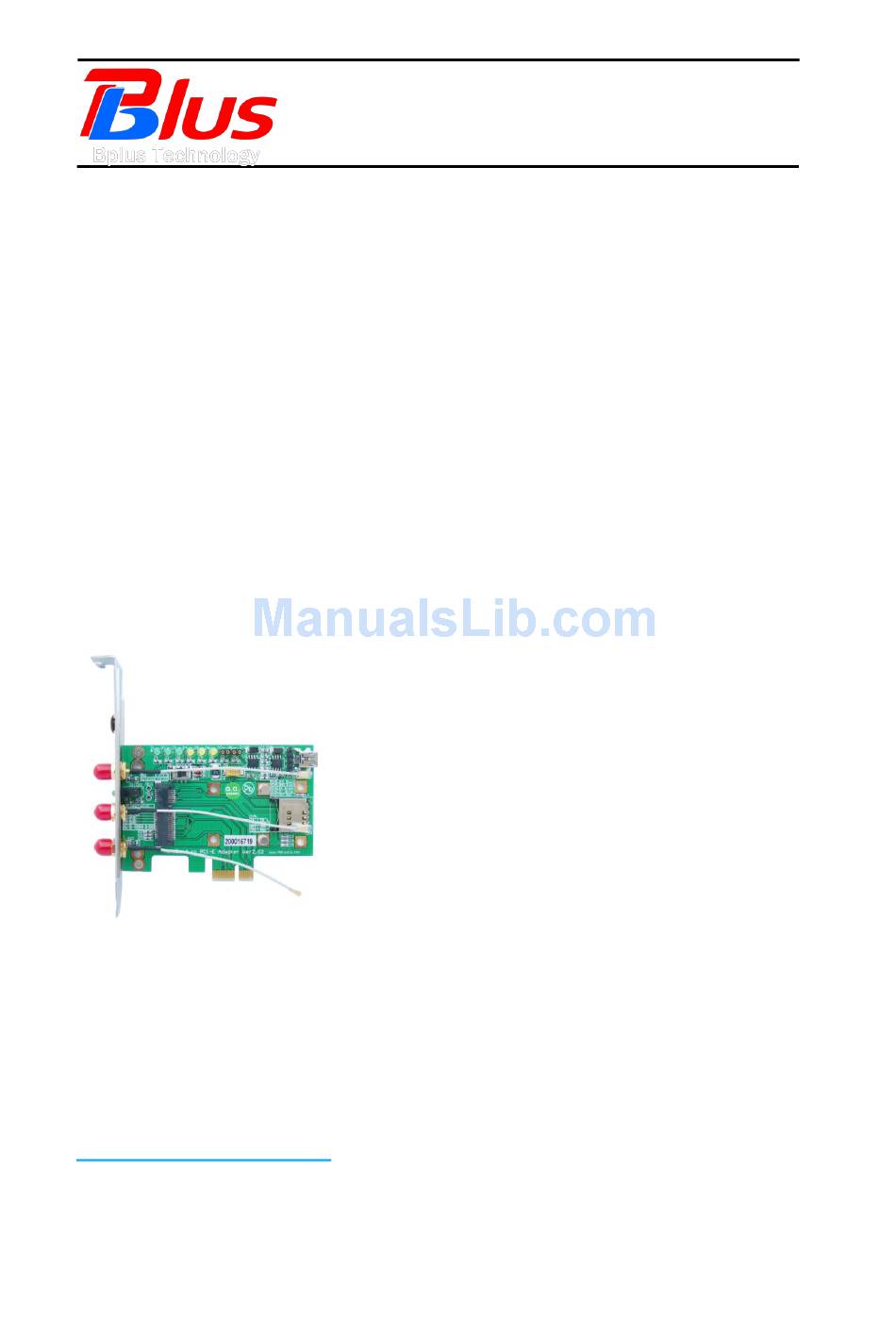

- Page 1 Mini PCI-E to PCI-E Adapter User’s Manual Preliminary Model: MP2A FAE2009MP2A_03 June 2009 Bplus Technology Co., Ltd. 5F, No.63, Zhou-Tzyy St., Nei-Hu, Taipei, Taiwan (886-2)77210550 TEL (866-2)87974200 FAX http://www.Bplus.com.tw...
-
Page 2: Table Of Contents
Mini PCI-E to PCI-E Adapter User’s Manual Page 1 CONTENTS Introduction ......................2 Interface ........................2 Features ........................5 Package contents ..................... 6 System requirement ..................7 Installation procedure ..................7 Caution ........................15 Maintenance ....................... 15 FAE2009MP2A_03 ©2009 Bplus Technology... -
Page 3: Introduction
Mini PCI-E to PCI-E Adapter User’s Manual Page 2 1.0 Introduction The MP2A passive adapter is designed for desktop PCs that convert Mini-Card to USB port or standard PCI-Express 1x slot. You can insert your USB type minicard to this adapter then plug to USB port through USB cable. - Page 4 LED State: 1. D4(LED Green) When PC is in energetic status and not turn on, plug MP2A into PCIE slot of MB. Now, if D4 is on, it shows normal working status. If not, the user needs to check the PCI-E slot and MB ok or not.
- Page 5 Activity proportional to Activity proportional to Blink transmitting/receiving transmitting/receiving transmitting/receiving speed speed speed For voice applications, turning off and on the intermittent blink based on the ring pulse cycle can indicate a ring event D5, D11 (W-LAN) FAE2009MP2A_03 ©2009 Bplus Technology...
-
Page 6: Features
Supports two primary system bus interface includes PCI Express and USB. Support all of Mini-Cards such as SSD, Turbo memory, 3G, CDMA, WLAN, WWLAN, HSPA MODEM Mini Card to desktop PC. Support SIM card connector. FAE2009MP2A_03 ©2009 Bplus Technology... -
Page 7: Package Contents
Mini PCI-E to PCI-E Adapter User’s Manual Page 6 4.0 Package contents Mini PCI-E / PCI-E adapter x1 Accessory: USB cable x1 Accessory: IPX to RP-SMA cable x3 FAE2009MP2A_03 ©2009 Bplus Technology... -
Page 8: System Requirement
Standard Height PCI express bracket x1(Default) 5.0 System requirement PCI-Express 1x slot or USB port Windows 2000, XP, Vista 32/64 Linux 6.0 Installation procedure MP2A supports two kinds of cards, which includes Half-Mini Card, Full-Mini Card. FAE2009MP2A_03 ©2009 Bplus Technology... - Page 9 Desktop PC Application _ Wireless LAN Card 1) Remove the caps on the two posts, 2) Plug mini card device such as wireless LAN card into mini PCI-E connector. The other side should be fixed by two screws. FAE2009MP2A_03 ©2009 Bplus Technology...
- Page 10 Mini PCI-E to PCI-E Adapter User’s Manual Page 9 3) Please ensure fix the antenna IPX CONN on mini card exactly. 4) Put the wireless antenna on the RP-SMA CONN. FAE2009MP2A_03 ©2009 Bplus Technology...
- Page 11 5) Before the user plugs PCI-E connector into PC M/B, please ensure cut off the PC power firstly, then continue plug-in. Finally, please ensure USB cable line or DuPont 5P to 5P cable line connect OK. For other kind of card, the user needs to change the post position FAE2009MP2A_03 ©2009 Bplus Technology...
- Page 12 Mini PCI-E to PCI-E Adapter User’s Manual Page 11 FAE2009MP2A_03 ©2009 Bplus Technology...
- Page 13 3. The support style of mini card decides the installation position for MP2A. If your card supports PCI-E mode, please plug MP2A into PCI-E slot. Or it supports USB mode, then MP2A should be connected by cable line rather than PCI-E slot connect.
- Page 14 Mini PCI-E to PCI-E Adapter User’s Manual Page 13 Mixed Mode USB Mode FAE2009MP2A_03 ©2009 Bplus Technology...
- Page 15 2. Install HSDPA module of Mini PCI-E slot ok and fix antenna ok. 3. Before plug MP2A into PCI-E slot, please ensure cut off the PC power firstly. Then, connect USB cable line or DuPont 5P to 5P cable line ok.
-
Page 16: Caution
Bplus reserves the right to modify the products in its line during the course of the year. 8.0 Maintenance There is no guarantee while PC power is on and MP2A is been removing. Please contact the distributer for more details. FAE2009MP2A_03...
