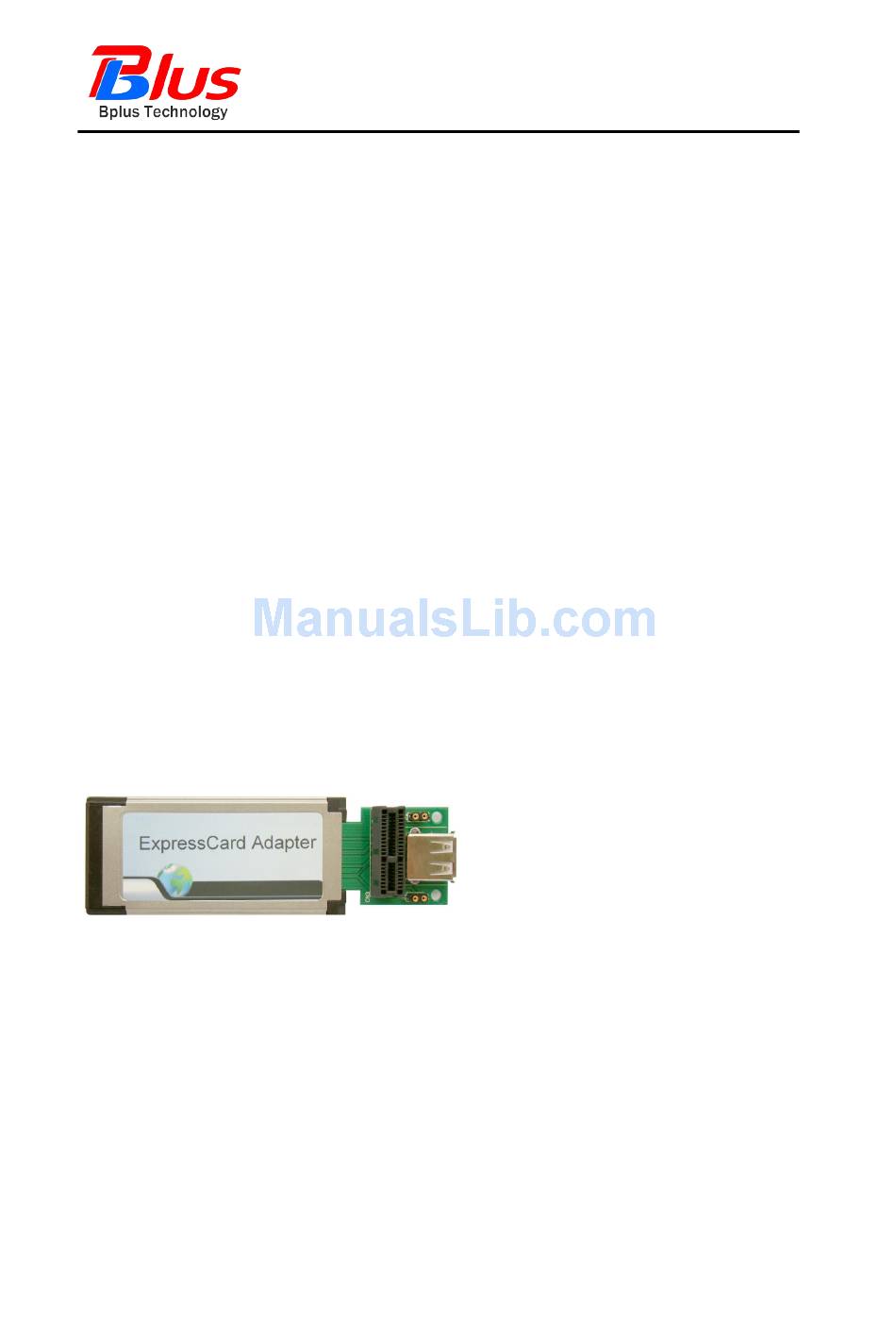

- Page 1 PCI-E and USB to ExpressCard Adapter User’s Manual Preliminary Model: PE3 FAE2009PE3_01 March 2009 Bplus Technology Co., Ltd 5F,NO.63,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C (+886)2-7721-0550 TEL (+886)2-8797-4200 FAX http://www.bplus.com.tw...
-
Page 2: System Requirement

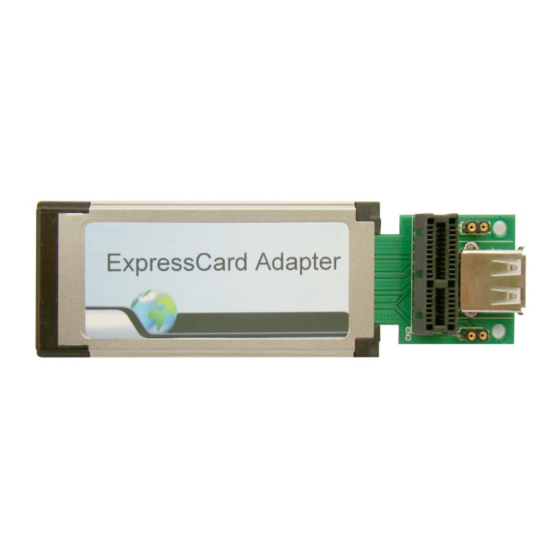

PCI-E and USB to ExpressCard Adapter User’s Manual Page 1 CONTENTS Introduction ......................2 Interface ........................2 Features ........................3 Working mode ....................... 3 System requirement ..................3 Installation procedure ..................4 Caution ........................7 Maintenance ......................7 FAE2009PE3_01 ©2009 Bplus Technology Co., Ltd... - Page 3 PCI-E and USB to ExpressCard Adapter User’s Manual Page 2 1.0 Introduction The PCI-E 1x and USB to ExpressCard /34 passive adaptor is a Debug tool for PCI-E interface card and USB 2.0 devices. This adapter allows you to use your existing PCI-Express Add-in-Card in the ExpressCard slot It's especially designed to save valuable labor and time in the production environment.
- Page 4 PCI-E and USB to ExpressCard Adapter User’s Manual Page 3 Figure-2 PCI-E and USB to ExpressCard Adapter (back) 3.0 Features Designed to USB specification vision 2.0 and PCI Express base specification vision 1.1 Supports PCI-Express Card 1x and USB 2.0 devices Compliant with multi-system of PC High quality connectors for long service life 4.0 Working mode...
- Page 5 PCI-E and USB to ExpressCard Adapter User’s Manual Page 4 6.0 Installation procedure PCI-E to ExpressCard Mode 1) Please plug the device with PCI-E 1×connector into PCI-E slot. As the following picture shows, the wireless card can be plug into PCI-E 1 ×slot.
- Page 6 PCI-E and USB to ExpressCard Adapter User’s Manual Page 5 Plug into exactly FAE2009PE3_01 ©2009 Bplus Technology Co., Ltd...
- Page 7 PCI-E and USB to ExpressCard Adapter User’s Manual Page 6 USB to ExpressCard Mode Attention: The device with USB connector supports Plug and Play function. User can plug it into USB slot directly. 1) Please plug PCI-E and USB to ExpressCard Adapter into ExpressCard slot 2) Then, plug the device with USB connector into USB slot FAE2009PE3_01 ©2009 Bplus Technology Co., Ltd...
- Page 8 PCI-E and USB to ExpressCard Adapter User’s Manual Page 7 7.0 Caution The device which holds PCI-E connector support Plug and DOES NOT DO NOT deal with it when energized. Play function. Jump J1 includes +5V and GND two signals for USB test. The Max. Load <<...
