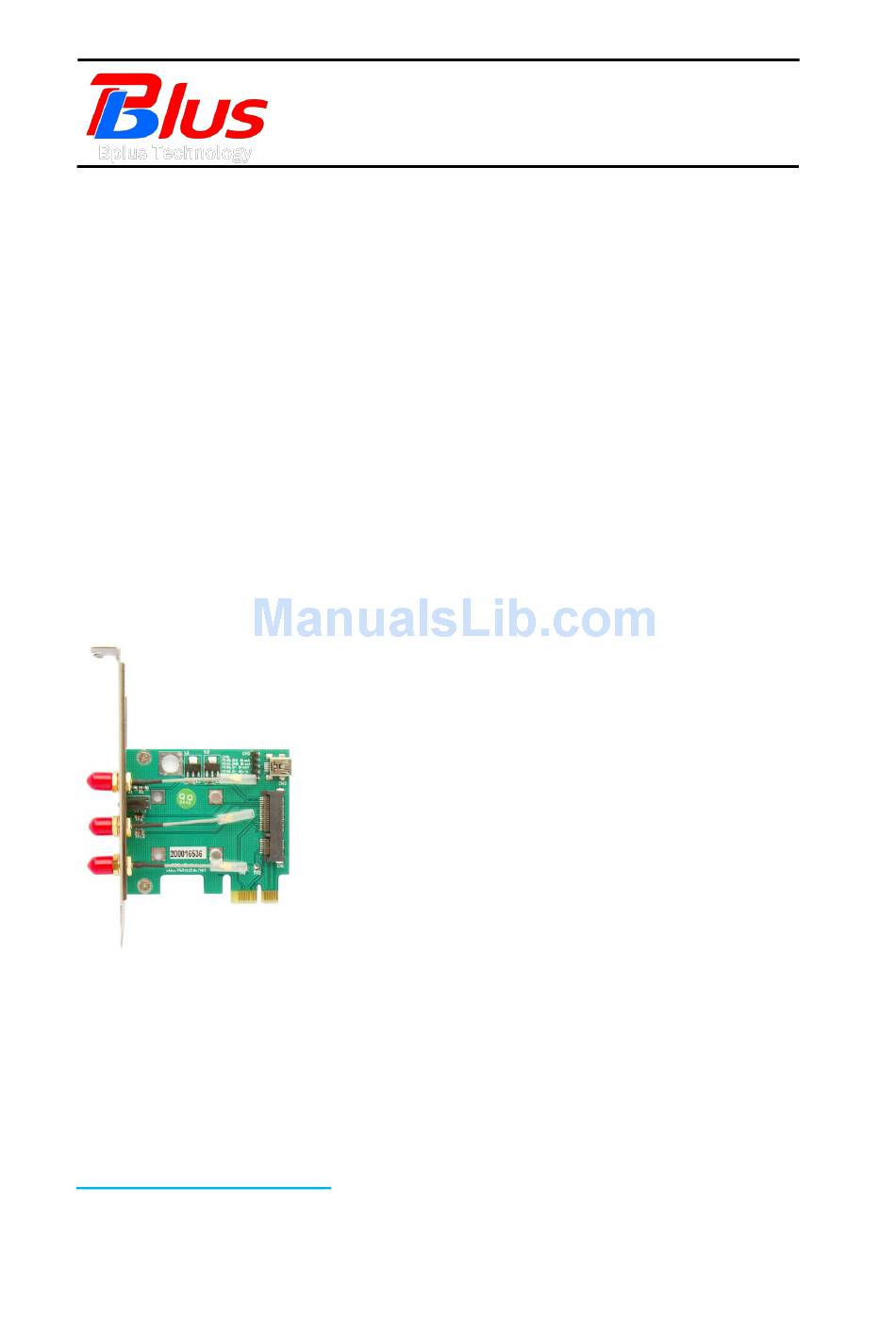

- Page 1 Mini PCI-E to PCI-E Adapter User’s Manual Preliminary Model: MP2W FAE2009MP2W_03 June 2009 Bplus Technology Co., Ltd. 5F, No.63, Zhou-Tzyy St., Nei-Hu, Taipei, Taiwan (886-2)77210550 TEL (866-2)87974200 FAX http://www.Bplus.com.tw...
-
Page 2: Table Of Contents
Mini PCI-E to PCI-E Adapter User’s Manual Page 1 CONTENTS Introduction ......................2 Interface ........................2 Features ........................4 Package contents ....................5 System requirement ..................6 Installation procedure ..................6 Caution ........................11 Maintenance ......................11 FAE2009MP2W_03 ©2009 Bplus Technology... -
Page 3: Introduction
You can insert your USB type minicard to this adapter then plug to USB port through USB cable. Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector. 2.0 Interface Mini PCI-E to PCI-E Adapter as shown, Figure-1 Mini PCI-E to PCI-E Adapter (heads) FAE2009MP2W_03 ©2009 Bplus Technology... - Page 4 It shows the mini card has been identified by system. When D1 flickers, it shows the device connectivity ok and it works normally. 2. D2 (Green): When LED D2 (G) is on, it shows the normal operating voltage of mini card. FAE2009MP2W_03 ©2009 Bplus Technology...
-
Page 5: Features
Supports two primary system bus interface: PCI Express and USB Supports all of Mini-Cards such as SSD, Turbo memory, 3G,CDMA, WLAN,WWLAN, MODEM Mini Card to desktop PC. Supports U.FL/IPX to RP- SMA pigtail WiFi RF cable adapter. FAE2009MP2W_03 ©2009 Bplus Technology... -
Page 6: Package Contents
Mini PCI-E to PCI-E Adapter User’s Manual Page 5 4.0 Package contents Mini PCI-E / PCI-E adapter x1 Accessory: DuPont 5P to DuPont 5P cable x1 Accessory: IPX to RP-SMA cable x3 FAE2009MP2W_03 ©2009 Bplus Technology... -
Page 7: System Requirement
PCI-Express 1x slot or USB port Windows 2000, XP, Vista 32/64 Linux 6.0 Installation procedure WARNING: Plug MP2W into PCI-E slot, NOT PCI slot. Wrong slot plug-in will lead to PC damage. For Full-Mini Card 1) Remove the caps on screws, FAE2009MP2W_03... - Page 8 Mini PCI-E to PCI-E Adapter User’s Manual Page 7 2) Plug mini card device such as wireless LAN card into mini PCI-E connector with inclined angle. The other side should be fixed by two screws. FAE2009MP2W_03 ©2009 Bplus Technology...
- Page 9 Mini PCI-E to PCI-E Adapter User’s Manual Page 8 3) Please ensure fix the antenna IPX CONN on mini card exactly. 4) Put the wireless antenna on the RP-SMA CONN. FAE2009MP2W_03 ©2009 Bplus Technology...
- Page 10 Mini PCI-E to PCI-E Adapter User’s Manual Page 9 When the user inserts DuPont 5P cable into MP2W, please check the correct position. Ensure red line points to PIN1.Vcc Red as identified on MP2W. Before the user plugs PCI-E connector into PC M/B, please ensure cut off Do not deal with it when the PC power firstly, then continue plug-in.
- Page 11 When the user inserts DuPont 5P cable into PC M/B, please check the correct position. Ensure red line points to No. “1” USB port . Please reference user’s manual of PC M/B. Not inverse it. For Half-Mini Card The installation is same to Full-Mini Card. FAE2009MP2W_03 ©2009 Bplus Technology...
-
Page 12: Caution
Bplus reserves the right to modify the products in its line during the course of the year. 8.0 Maintenance There is no guarantee while PC power is on and MP2W is been removing. Please contact the distributer for more details. FAE2009MP2W_03...
