Vido AU-DVRS-04LH User Manual

Digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AU-DVRS-04LH
User's Manual
DIGITAL VIDEO RECORDER

Advertisement

Table of Contents
loading

Related Manuals for Vido AU-DVRS-04LH

Summary of Contents for Vido AU-DVRS-04LH

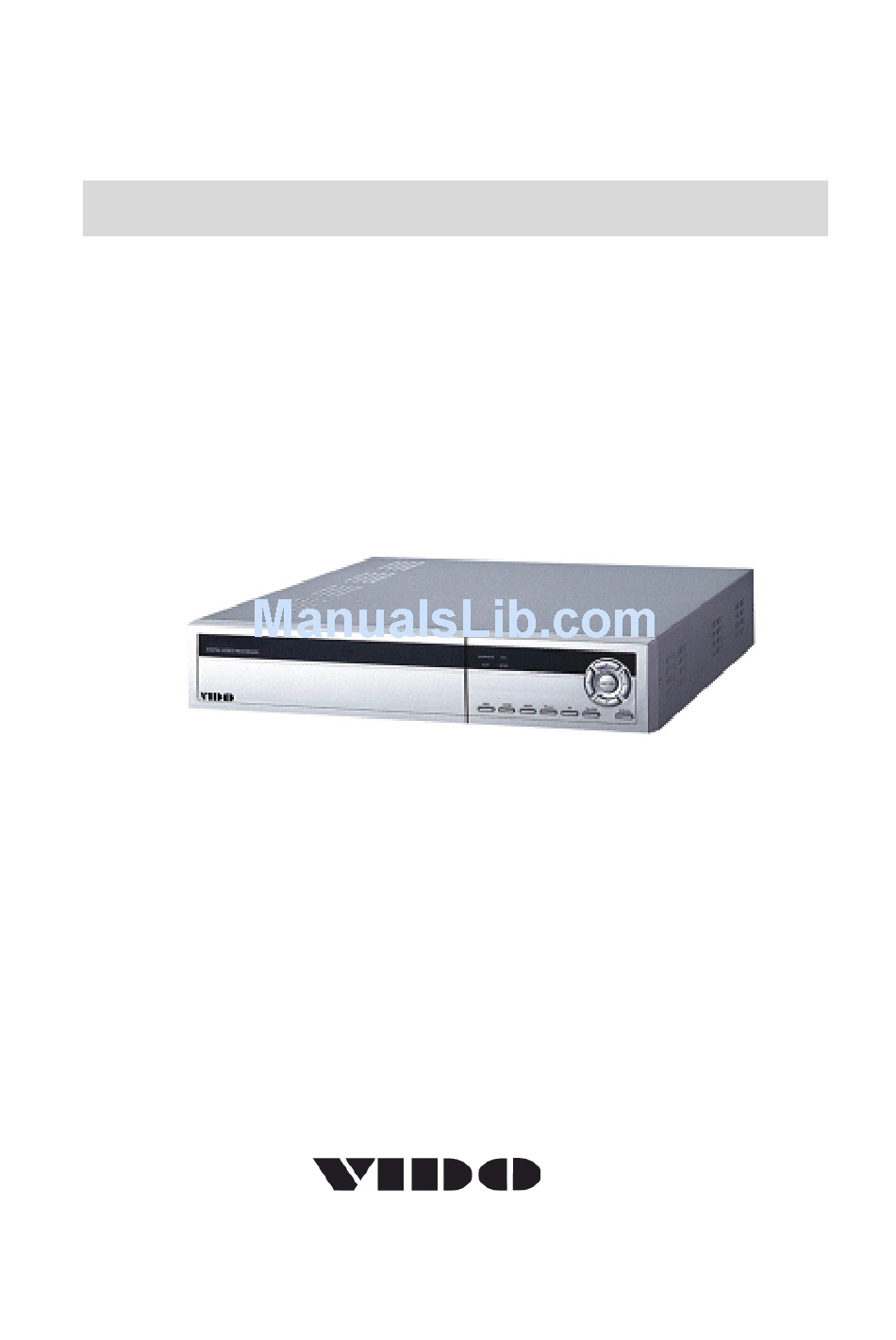

  • Page 1 AU-DVRS-04LH User's Manual DIGITAL VIDEO RECORDER...
  • Page 3 Installation and Precaution 1. Warning This unit is designed, to be used in indoor condition, to reduce fire and shock hazard, do not expose the unit to rain or moisture. Prevent any foreign object or liquid to enter the unit. In case, there is any foreign object or liquid go inside the unit, cut off the power immediately, and call for a qualified service person to inspect and test the unit, before putting the unit back to operation.
  • Page 4 Delivery Packing Checklist This unit is packed with the following accessories, please kindly check immediately after unpacking the box ： 1、 1 no. of power supply cord 2、 1 no. of operating manual 3、 1 no. of Infra-red remote controller 4、...

  • Page 5: Table Of Contents

    Index FRONT PANEL………………………………………………...6 REAR PANNEL……………………………………………….. 8 HARD DISK INSTALLATION..........9 VOLTAGE OUTPUT & SENSOR INPUT AND ALARM OUTPUT CONNECTION……………………………………..10 POWER ON AND OFF………………………………………...11 1.POWER ON……………………………………………………………………………. .11 2.POWER OFF…………………………………………………………………………… .11 SYSTEM SETUP………………………………………………12 1、T ......................12 O ENTER 2、 M ..............12 ENU AND SCREEN PROMPT OPERATION 3、...
  • Page 6 1.1-3Weekly ............17 1.2Event Recording ............ 18 1.2-1Motion Detection ..........18 1.2-2 Sensor Detection ..........19 1.3Repeat Recording............ 20 1.4Recording Speed (Frame Rate) ........20 1.5 Compression Rate (Recording Quality) ........20 1.6File Deletion ............21 1.7File Lock / Unlock ........... 21 HARDWARE SETTING ......
  • Page 7 4-2、USB Backup....................34 5．Status Indication ............ 35 6．SPOT Display ............35 7．Hard disk format ............ 35 NETWORK SOFTWARE OPERATION ....37 1、G ......... 37 RAPHIC USER INTERFACE INTRODUCTION 2、C ..........37 ONNECT AND ISCONNECT 2-1、Signing On ....................37 2-2、Disconnect....................38 3、L ............

  • Page 8: Front Panel

    Front Panel 1.Power Button Turn the unit on or off. 2.Digits Buttons Change time, password, and input IP address 3.Menu Button Go to the top level of the menu tree 4.Setup Button Other operation Menu 5.Channel Select Button Select the channel. Toggle the screen between QUAD, 1,2,3 or 4 6.SPOT Button Put the display mode to Spot Mode.
  • Page 9 18.Enter Button Confirm of the data input 19.Up Button Up action for menu tree navigation, pan/tilt etc.. 20.Left Button Left action for menu tree navigation, pan/tilt control etc.. 21.Right Button Right action for menu tree navigation, pan/tilt control etc.. 22.Down Button Down action for menu tree navigation, pan/tilt control etc..

  • Page 10: Rear Pannel

    Rear Panel 1. Power Input 2. Camera Input 1~4 3. Loop Out 1~4 4. Video Output 5. Audio Output 6. Audio Input 1 7. Audio Input 2 8. Sensor Input 1~4 9. Alarm Output 1~4 10. RS232 Port 11. RS485 Port 12.

  • Page 11: Hard Disk Installation

    Hard disk installation This unit is delivered without the hard disk by default. Please contact our local agent or regional representative, so they provide qualified service personnel to install hard disk to suit for your storage and video image retention requirement. The unit is not operational before installation of hard disk. The maximum number of IDE hard disks, which can be installed in this unit is four.

  • Page 12: Voltage Output & Sensor Input And Alarm

    Voltage Output & Sensor Input and Alarm Output Connection Sensor Input This unit has 4 numbers of isolated Sensor input to take voltage free relay outputs from peripheral alarm sensors. These Sensor inputs are protected from high voltage input from outside, by providing the opt-isolated design Sensor Input Setup ：...

  • Page 13: Power On And Off

    Power ON and OFF 1、Power On Before the first time of turning on the unit for operation, please make sure all points listed in the “Installation and Precaution” section has been studied and followed. Double check all connections to the unit is correct, and power supply connection to the unit is proper.

  • Page 14: System Setup

    System Setup The unit should be configured using the menu, to tailor suit the unit for specific site operation, if not, the unit will operate under ex-factory default settings. 1、To enter SETUP Press “Setup” button on remote controller or front panel to go into Setup Menu. 2、...

  • Page 15: System Setting

    The unit’s system password is a combination of numeric digital between 0 and 9. Numeric key on remote controller or front panel can be used to enter the password. On entering of the system password, for security reasons, the on-screen indication is represented by “*”. The ex-factory default system password is “0000”.

  • Page 16: Language Setting

    After inputting the new system password, the screen prompt will request to enter the new password again to reconfirm. 1.2Language Setting By highlighting “Language” item and press “Enter”, the screen prompt will be changed as follows: Korean English Chinese simplified Chinese traditional Spanish French...

  • Page 17: Time Indication Position Setting

    Select one of the date mode, and confirm by pressing “Enter”. Example) dd/mm/yy ---- Day/Month/Year 1.5Time Indication Position Setting (OSD format) After selecting this item, the screen prompt is as follows: 〔OSD〕 TTTT(W) TTTT(B) BBBB(W) BBBB(B) TTBB(W) TTBB(B) BBTT(W) BBTT(B) One of the eight modes of time indication position should be highlighted and confirmed by pressing “Enter”.

  • Page 18: Recording Setting

    Recording Setup 1、To enter the menu Press “SETUP” button on remote controller or front panel to go into SETUP Menu. 2、Menu and screen prompt operation After entering the menu, operator can navigate the items by using the up button and down button, either on front panel or remote controller, to highlight the items on the present level of the menu.

  • Page 19: Schedule Recording

    1.1Scheduled Recording Under this item, the screen prompt is as follows: One Time Daily Weekly 1.1-1One Time Under “One Time”, the screen prompt is as follows: 〔Start〕 mm/dd/yy 01/10/04 hh:mm 10:00 〔End〕 mm/dd/yy 01/10/04 hh:mm 19:55 Use numeric key to enter the start and end time and date for the one-shot scheduled recording period of time.

  • Page 20: Event Recording

    Sunday Monday Tuesday Wednesday Thursday Friday Saturday Select one of the day under a week, by highlight a day (e.g. Sunday) and press “Enter”. The screen prompt will be changed as follows: 〔Sunday〕 * Start (hh:mm) 09:00 * End (hh:mm) 11:30 * Start (hh:mm) 13:00...

  • Page 21: Sensor Detection

    〔Motion Detection〕 〔OFF〕 〔OFF〕 〔OFF〕 〔OFF〕 Press Up or down to select the camera number, and left or right to select the motion detection recording property. Motion Detection: The “Standard”, “Sensitive” or “Off” fields, is to indicate whether the motion detection for that camera is activated or not, if activated which level of sensitivity is set.

  • Page 22: Repeat Recording

    1.3Repeat Recording Under this “Repeat Record” item, the screen prompt is as follows: 〔Repeat Record〕 If the “Repeat Record” is activated, then the on-line hard disk space will be acting as an FIFO (First In First Out) buffer, old images will be erased automatically. No operator intervention will be required on hard disk being full.

  • Page 23: File Deletion

    〔Compression Rate〕 Standard High-1 High-2 Operator can select one of the three quality level and press “Enter” to confirm. For determination of quality of recording to be selected, operator should consider the hard disk space available and desirable retention period of video clips on local hard disk(s). Please refer to the following benchmarking to estimate one’s need on retention period and hard disk space.
  • Page 24 DATE TIME 〈PgUp/Dn〉 FILE NAME 01/10 11:30 UNLOCK S040110110000U 01/10 12:00 UNLOCK S040110120030U 01/10 12:31 LOCKED S040110123100U 01/10 13:05 UNLOCK E040110130540U 01/10 13:30 UNLOCK E040110133000L 01/10 15:00 LOCKED S040110150032U 01/10 15:31 UNLOCK S040110153150L 01/10 17:02 UNLOCK E040110170250U 01/10 17:09 UNLOCK S040110170920U 01/10 17:50...

  • Page 25: Hardware Setting

    Hardware Setup 1、To enter the menu Press “SETUP” button on remote controller or front panel to go into SETUP Menu. 2、Menu and screen prompt operation After entering the menu, operator can navigate the items by using the up button and down button, either on front panel or remote controller, to highlight the items on the present level of the menu.

  • Page 26: Ptz Camera Setting

    1.1PTZ Camera Setting Under this item, the screen prompt is as follows: 〔PTZ camera model〕 CNB-102N PELCO D protocol Operator can select the PTZ protocol to be employed by this unit to match with the PTZ camera connected. ☞ Note: the list of supported PTZ protocol will be expanding, please contact our local agent or regional representative for details.

  • Page 27: 1Sensor Type

    1.3-1Sensor Type Under this item, the screen prompt is as follows: 〔Sensor type〕 * Sensor 1 〔NO〕 * Sensor 2 〔NO〕 * Sensor 3 〔NO〕 * Sensor 4 〔NO〕 Use up and down keys to highlight individual alarm input, and use left or right keys to select the type of alarm input.

  • Page 28: 4Alarm Out Period

    Use up and down keys to highlight individual sensor input, and use left or right keys to select the condition of alarm output. Type of sensor input, can be NO (normally open) or NC (normally close). ☞ Default setting by factory “ON” 1.3-4Alarm Out Period Under this item, the screen prompt is as follows: 〔Alarm Period〕...

  • Page 29: 2Dynamic Internet Protocol

    If static IP is selected, then the screen prompt will be changed as follows: IP Address : 192.168.001.201 GATEWAY : 192.168.001.001 NETWORK : 255.255.255.000 Key in the static IP address, Gateway and Sub-Net address using the numeric keys on remote controller. This network setting is for client software operation over the network.

  • Page 30: Storage Setting

    Operator will be prompted to enter the new password again to re-confirm. 1.5Storage Setting Under this item, the screen prompt is as follows: Secondary FORMAT 〔NO〕 Third [NO] FORMAT Fourth [NO] FORMAT IEEE 1394 FORMAT 〔NO〕 This unit can support 4 numbers of internal hard disk in Maximum. For the first master hard disk, the formatting and recognizing will be started automatically.

  • Page 31: Recording Search / Operation

    Recording Search / Operation Recording search is one of the key functions of a digital video recorder. Video clip searching can be according to different kinds of information, like time, alarm and event. Search function can be accessed directly by pressing “Search” button on either front panel or remote controller, then the screen prompt will changed as follows: TIME SEARCH EVENT SEARCH...

  • Page 32: List Search

    Select file and press “Enter” key to confirm and start the searching. Press the “CH SEL” button to expand channel 1, channel 2, channel 3 or channel 4. Press 5times to return to the 4-split screen. Press the “EXIT” button to quit the search menu ☞...

  • Page 33: Playback Operation

    After correct password is entered by using numeric keys on front panel or remote controllers, then the recording of the unit is manually started. This can be actively confirmed by observing the “REC” indication on screen. LIVE If the operator need to stop recording, the “REC” button should be pressed again, then the prompt for system password will appear again as follows: Enter Password ：...

  • Page 34: Other Operation

    “After “Pause” is pressed, pressing the rewind key will switch the playback between x1/2, x1/4, x1/8 slow motion rewind playback mode. Pressing “stop” button will stop the playback (without freeze the screen on latest frame). Other Operation The “Other operation Menu” items is showed below ：...

  • Page 35: Audio Item

    1.2 Camera selection By pressing “Pan/Tilt” button on the remote controller or the “Enter” Key on the front panel, camera selection of CAM2,3 or 4 can be done. Once CAM2, 3 or 4 is selected, pan/tilt control can be achieved as per section 1.1.

  • Page 36: Backup

    4．Backup By selecting “Backup” item under the menu, the screen prompt will be as follows: 〔Backup〕 IEEE 1394 4.1. IEEE1394 Backup Select the IEEE 1394 item by pressing “Enter” when the item is highlighted. The screen prompt will be as follows: 〔IEEE 1394 Backup〕...

  • Page 37: Status Indication

    Press the numeric keys to input the start and end time and date of the period of data to be backed up to USB device. The USB backup will be started immediately, on completion of the backup, this menu item will be quitted automatically.
  • Page 38 ☞ If there is no hard disk installed yet, press “Exit” button. If there is hard disk installed already, press “Enter” to start formatting of the hard disk. WARNING : HDD does not exist, or, is not initialized !! If HDD does not exist, press EXIT 〈...

  • Page 39: Network Software Operation

    Network Software Operation Client software is provide with the unit for operator to operate the unit via remote network connection.， Remote operation via this client software can include remote monitoring, remote playback, remote control and remote backup etc.. The recommended minimal personal computer configuration is as follows: O/S : Windows XP or better CPU：...

  • Page 40: 2-2、Disconnect

    password (Network password as assigned on the DVR end). Click on OK to continue. Note: One DVR allow up to five user to log in simulataneously via the internet or LAN same time. 2-2、Disconnect Click on the disconnect button, the following dialogue box will pop up. Click “OK” to confirm disconnect.：...

  • Page 41: Backup File

    “▲” to control the direction, and use ZOOM, FOCUS“+”， “-”key to control the zoom in/out and focus near/far functions. Warning: If the camera control function is left idling for more than one minute, then the control privileges will be expired and handed over to other user. 5、Backup Press the “BACKUP”...

  • Page 42: Open File

    6、 Open File After clicking the “Open” button, the following dialogue box will pop up: Select the desired file Click “OK”. Playback will start automatically. Backed-up files are saved in the “Mpeg Files” folder, Choose the required file and press Open to open the file.

  • Page 43: Frame Rate Setting

    Frame Rate Setting If the display does not show live picture, or if the playback speed is not in real-time, please choose the original speed of the display or playback from this function...

  • Page 44: Specification

    SPECIFICATION Description 4ch Digital Video Recorder Signal Format PAL/NTSC Video input 1.0V p-p/75Ω，BNC，4ch Video output 1.0V p-p/75Ω，BNC 1ch，S-Video 1ch，Loop_out，BNC 4ch Audio input RCA，2ch Audio output RCA，1ch NO/NC sensor，4ch input Sensor input Alarm output Network interface 10/100 Base-T，Ethernet interface 360×288×4（PAL）,360×240×4（NTSC） Video resolution TV resolution ：250~550 lines Compression method MPEG-II...
