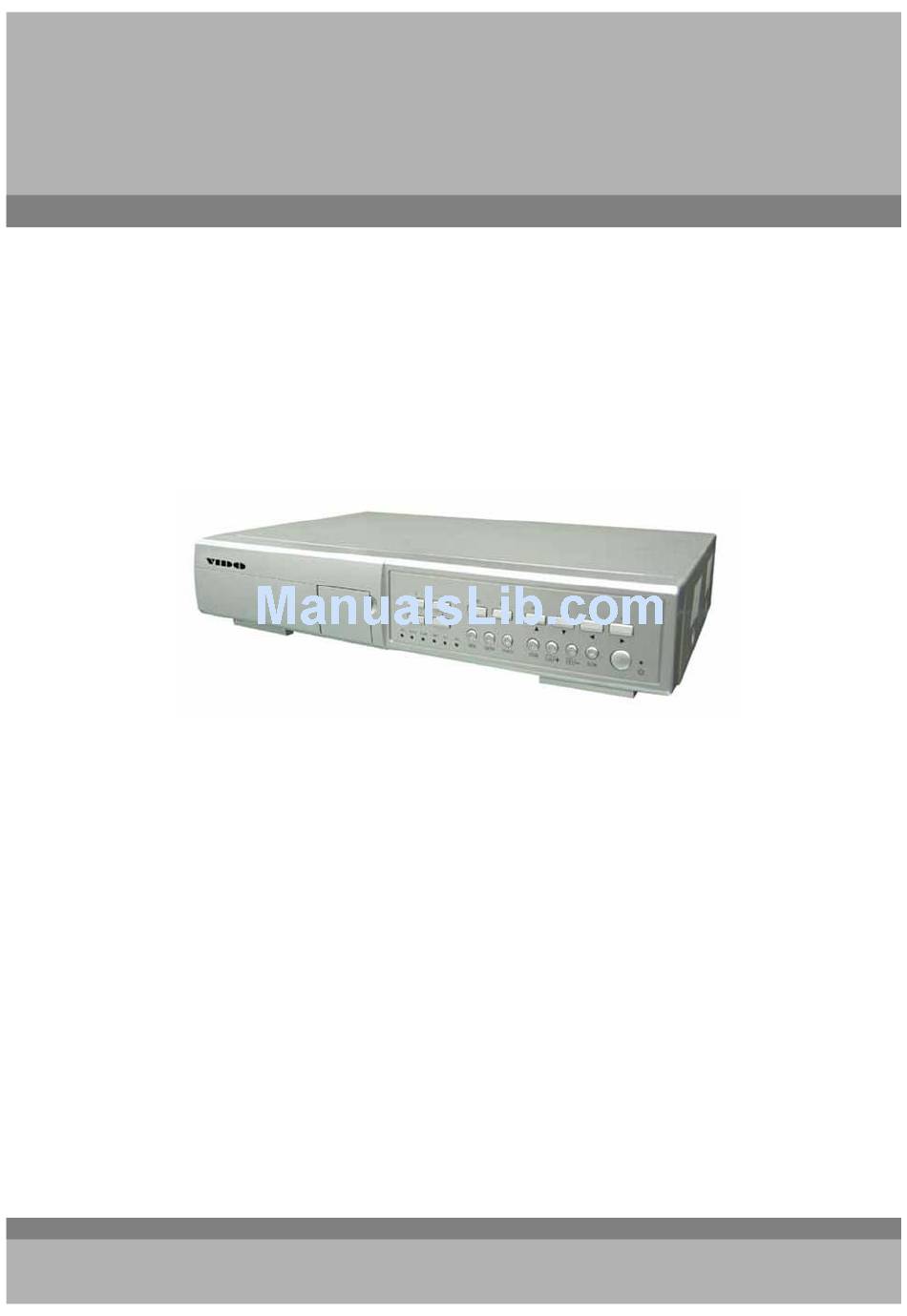

4 CH Digital Video Recorder
AU-DVRS-4A
4 Ch. DVR Stand Alone
User's Manual
Please read this instructions thoroughly before operation and keep the manual in a safe
place for further reference.
AU DVRS 4A V1.0

Advertisement

Table of Contents
loading

Summary of Contents for Vido AU-DVRS-4A

  • Page 1 4 CH Digital Video Recorder AU-DVRS-4A 4 Ch. DVR Stand Alone User’s Manual Please read this instructions thoroughly before operation and keep the manual in a safe place for further reference. AU DVRS 4A V1.0...
  • Page 2 WARNING All the safety and operating instructions should be read before operation. The improper operation may cause permanent damage. ‧ This adaptor is only for this machine. Do not use it for other electronic products or it will damage other products. ‧...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS What do you get What do you get ‧ FEATURES ---------------------------------------------------------------------------------------- ‧ PACKAGE CONTENT -------------------------------------------------------------------------- Before Operation Before Operation ‧ INSTALLATION GUIDE ------------------------------------------------------------------------ ‧ FRONT PANEL ----------------------------------------------------------------------------------- ‧ REAR PANEL ------------------------------------------------------------------------------------- Basic Operation Basic Operation ‧ GETTING STARTED------------------------------------------------------------------------------ ‧...
  • Page 4: What Do You Get

    What do you FEATURES get ? DVR Features • Wavelet compression format replaces Time-Lapse VCR + Multiplexer / Quad • 4 audio inputs / 2 audio outputs • On Screen Display and Remote Control via Video Server & PC • Picture-in-picture (PIP) and Picture-on-Picture (POP) function in live •...
  • Page 5: Before Operation

    Before Operation INSTALLATION GUIDE 1. Connect cameras and monitor to the DVR. 2. Shown below is an example of connecting the DVR to your existing Observation System. 3. Install HDD (The compatible HDD brands are listed in the following table.) Please refer to page.21 Appendix #1 for installation instructions.
  • Page 6: Front Panel

    FRONT PANEL 1. REMOVABLE HDD CARTRIDGE & KEYHOLE Please refer to page.22 Appendix #2. 2. CONTROL PANEL LED LIGHT The LED Light is ON under following condition. ‧HDD : HDD is reading or recording. ‧HDD Full : HDD is full ‧ALARM : To turn off the ALARM LED light, please refer to page.13 and set the ALARM mode as OFF.
  • Page 7 FF / ► FF : Play video fast forward. (Press FF button again to adjust speed ‧ from 1, 2, 4, 8, 16, 32 times) ‧ ► : Under setup mode, it works as Right button. REW / ◄ REW : Play video fast backward. (Press REW button again to adjust ‧...
  • Page 8: Rear Panel

    REAR PANEL MAIN CALL EXTERNAL I/O DC 19V 3 4 5 1. EXTERNAL I/O ‧Controlled remotely by an external device or control system such as Video Web Server or PC. ‧Alarm input, external I / O expansion. 2. VIDEO INPUT (1-4) Connect to video source, such as camera.
  • Page 9: Basic Operation

    Basic Operation GETTING STARTED Before using the DVR, please have a HDD installed ready, or it will function as 4 CH multiplexer (refer to Appendix #1 and Appendix #2 for installation or removal of a HDD). Connect the AC power cord and plug into an electrical outlet. The Red LED indicator light will be ON and the DVR is in Standby mode.
  • Page 10: Play Back

    PLAY BACK Press “PLAY ” button, the DVR will show the last recording. 1. FAST FORWARD (F.F.) & FAST REWIND (F.R.) You can increase the speed of Fast Forward and Rewind on the DVR. In the Play mode, press “ ► ” once to get 2X speed forward and press twice to get 4X speed,… and the maximum speed can reach 32X.
  • Page 11: Detailed Menu Setup

    Detailed Menu Setup MAIN MENU There are 12 options available in the Main Menu: (MENU) TIMER ---------- Program Timer Recording TIMER CAMERA ------- Camera Setup CAMERA RECORD ------- Recording Mode Setup RECORD ALARM --------- Alarm Setup ALARM DWELL --------- Dwell time Setup DWELL PIP --------------- Picture in Picture Setup MOTION -------- Motion Detection Setup...
  • Page 12 8. MESSAGE LATCH To select whether the DVR messages will disappear after 10 seconds or remain on screen. NO is the default setting which the (SYSTEM) messages will disappear after 10 sec. AUDIO INPUT NOTE : Video loss, Alarm and Motion messages will be shown BUZZER the same as Alarm Duration time.
  • Page 13 3. END (TIMER) Set the time to end the recording. DAY START END IPS QLT MODE DAILY 01:00 22:00 BEST Q-FR 00:00 00:00 BEST Q-FI 4. IPS (IMAGE PER SECOND) 00:00 00:00 BEST Q-FI NTSC-30、15、8、4、2、1 00:00 00:00 BEST Q-FR PAL-25、12、6、3、2、1 00:00 00:00 BEST Q-FR 00:00 00:00...
  • Page 14 4. BR (BRIGHTNESS) (MENU) Adjust the brightness of each channel. The level is from 0 to 63. TIMER CAMERA 5. CT (CONTRAST) RECORD Adjust the contrast of each channel. The level is from 0 to 63. ALARM DWELL 6. CL (COLOR) MOTION Adjust the color of each channel.
  • Page 15 4. QUALITY There are four quality settings during an ALARM : BASIC, BEST, HIGH, NORMAL. (MENU) 5. RECORD MODE TIMER CAMERA There are three recording settings : QUAD-FRAME, QUAD-FIELD, RECORD MULTIPLEX. ALARM DWELL DWELL MOTION DISPLAY 1. NORM REMOTE To set up the DWELL time period that each channel auto sequentially shows on call USER monitor.
  • Page 16: Motion Record

    5. AREA Press the ENTER button on this option to set the Pixel-based (MOTION) Motion Detection Area for each channel. Red targets represent MD-NUM RE DET where the target is (Figure 1-1). Green targets represent the CAM1 AREA CAM2 OFF AREA Motion Detection Area(Figure 1-2), and Purple targets represent CAM3 AREA...
  • Page 17 NOTE: The trigger recording time will depend on ALARM DURATION mode setting (Please refer to page.13 for ALARM DURATION) and it will record from the last trigger time. For example, when the alarm duration setting is 1 min, the recording time is from 9:00:00 to 9:01:00. If the motion detection trigged again at 9:00:40, the trigged recording time will from 9:00:00 to 9:00:40 and 9:00:40 to 9:01:40.
  • Page 18 USER 1. USER (MENU) To set up the user account for controlling. It TIMER allows 8 users setting. CAMERA (USER) RECORD Supervisor – Control all the functions. ALARM PASSWORD Other Users – View all functions except the DWELL menu setting and event list SUPERVISOR 0000 cleaning.
  • Page 19: Advanced Operation

    Advanced Operation OPERATION OPTIONS ZOOM Press ZOOM button to enlarge the display of main picture. It displays zoomed picture on main picture and a small window inserted. The inserted window contains a movable 1/4 view size of the appointed camera. The range is from 2X to 4X. •...
  • Page 20: Key Lock

    KEY LOCK For advanced security, you can “Lock” the buttons on your DVR. Key-Lock prevents other people from using the system. Press ENTER and MENU at the same time to enable Key Lock. Press ENTER and MENU at the same time and key in password (Default : 0000), then press “ENTER“ to disable Key Lock. NOTE: To switch to different USER, press “ENTER”...
  • Page 21: Specifications

    SPECIFICATIONS NTSC/EIA or PAL/CCIR Video format IDE type, UDMA 66, supported 250 GB HDD Hard disk storage Recording mode Manual / Alarm / Timer / Motion Camera Input Signal Composite video signal 1 Vp-p 75 Ω BNC, 4 channels Main Monitor Output Composite video signal 1 Vp-p 75 Ω...
  • Page 22: Appendix #1 - Install The Hdd

    APPENDIX #1 – INSTALL THE HDD Follow the steps carefully in order to ensure correct installation. The compartment located on the front panel of the DVR is the removable Cartridge, in which you insert the HDD. The various parts of the Cartridge are labeled for your reference. Step 1 Connect the connector with the HDD (refer to Picture 1).
  • Page 23: Appendix #2 - Replace The Hdd

    APPENDIX #2 – REPLACE THE HDD Step 3 Pull out the cartridge Step 1 Open the cap Step 2 Unlock the cabinet by turning the key Step 4 Loose all screws on the Cartridge anti-clockwise (locked) (unlocked) Step 5 Remove the HDD from Cartridge If you want to change the different HDD, you must remove the connector from HDD (refer to Note: 1.
  • Page 24: Appendix #3 - Pin Configurations

    APPENDIX #3 – PIN CONFIGURATIONS 15 pin com port ‧ ‧ ‧ ‧ 9 pin com port ‧ ‧ ‧ ‧...
  • Page 25 PIN 1. RS232-TX : RS-232 DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS- 232 serial communications signals. PIN 2. RS232-RX : RS-232 DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS- 232 serial communications signals.
  • Page 26: Appendix #4 - Recording Speed

    APPENDIX #4 – RECORDING SPEED The Record Time is different based on Recording Speed, Recording Quality and Recording Mode. Please refer to following table. The HDD capability is 250GB. NTSC SYSTEM Best 50hr 100hr 187hr 375hr 750hr 1500hr High 62hr 125hr 235hr 468hr...
  • Page 27: Appendix #5 - Network Application

    APPENDIX #5 – NETWORK APPLICATION Video Web Server Features • Compatible with most of CCTV Products; empower any video output device watching and controlling on the Internet or LAN • Auto Network Reconnection (ANR) • Upgrade firmware & AP from FTP site via Video Web Server •...
