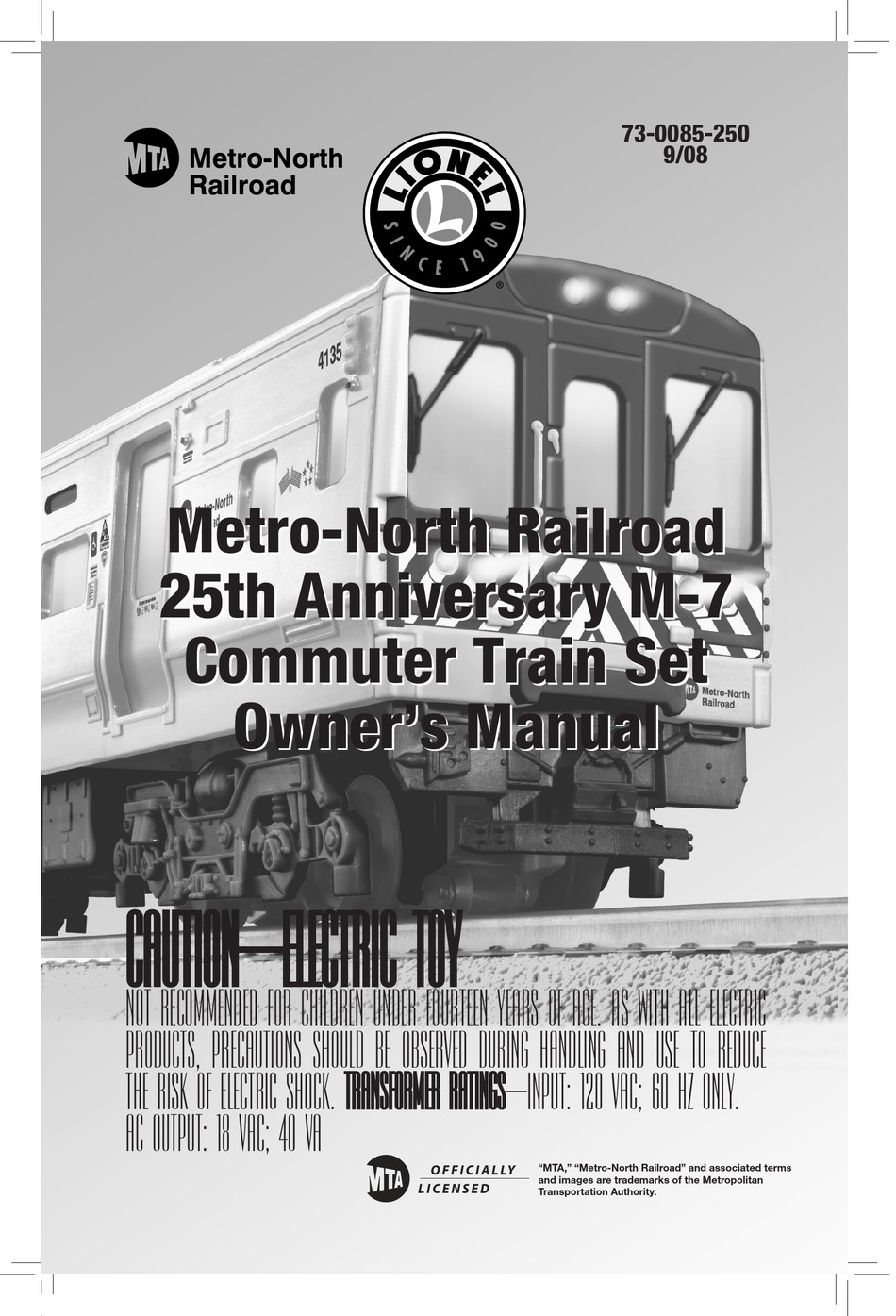

- Page 1 73-0085-250 9/08 Metro-North Railroad Metro-North Railroad 25th Anniversary M-7 25th Anniversary M-7 Commuter Train Set Commuter Train Set Owner’s Manual Owner’s Manual CAUTI O N—ELECTRI C TOY NOT RECOMMENDED FOR CHI L DREN UNDER FOURTEEN YEARS OF AGE. AS WI T H ALL ELECTRI C PRODUCTS, PRECAUTI O NS SHOULD BE OBSERVED DURI N G HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
-
Page 2: Fcc Statement
Explore the possibilities at your authorized Lionel dealer. Use this Owner’s Manual to learn how to set up, operate, and maintain your train set for years of reliable operation. -
Page 3: Table Of Contents
Limited Warranty/Lionel Service “MTA,” “Metro-North Railroad” and associated terms and images are trademarks of the Metropolitan Transportation Authority. The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel , TrainMaster... - Page 4 • Electronic horn on powered car • Operating headlights on powered car • Manually opening doors • Illuminated interiors in powered and non-powered cars Lionel M-7 Commuter Train Set Includes: One M-7 Powered car Three M-7 Non-powered cars Twelve Signs...
-
Page 5: Operating Your Powermax Plus Transformer Safely
• Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condi- tion exists, the transformer should not be used until it has been properly repaired. -
Page 6: Building Your Lionel Layout
Creating your layout Building your Lionel layout our set comes with eight curved, three straight, and one terminal section of track. Figure 1 provides some examples of layouts that you can build with these track sections. By adding more FasTrack track sections, you can create an endless number of exciting track arrangements for more fun, action, and variety. -
Page 7: Joining The Fastrack Track Sections
Creating your layout Joining the FasTrack track sections asTrack track sections join together easily. With interlocking roadbed sections and large rail tabs, the track fits together securely so you always get good electrical contact. Take a look at Figure 3 to see how to join the track sections. 1. -
Page 8: Wiring Your Powermax Plus Transformer
Creating your layout Wiring your PowerMax Plus Transformer onnect your FasTrack terminal section to the PowerMax Plus Transformer by using the wires that are already attached to the terminal section. Make sure that all connections are secure. Loose connections can produce extremely high temperatures. For this reason, do not touch the terminals or track connections during use. -
Page 9: Connecting The Cars
Running your train Connecting the cars our M-7 Commuter Set contains two matched pairs of cars. They are designed to be operated in the following order: 1. Place the powered car #4135 in the lead position on the track and connect it to the silver end of car #4145. -
Page 10: Running Your Train Set
Running your train Running your train set With track power off, place your train set on the track. See page 9 for connecting cars. Power up your locomotive with your transformer. Your powered car is designed to operate on 7-15 volts alternating current. -
Page 11: Experiencing The Features Of The Powermax Plus Transformer
Running your train Experiencing the features of the PowerMax Plus Transformer Refer to Figure 6 on page 12 for the location of the transformer features listed in this section. THROTTLE Push the throttle forward to increase track power. The markings on the throttle approxi- mate the percentage of full power. -
Page 12: Experiencing The Features Of The Powermax Transformer
Whistle Activates the whistle or horn sound Throttle effect in your Lionel locomotives. Controls your locomotive’s speed. Throw the throttle Press WHISTLE to begin the sound; forward to increase locomotive speed, backward to slow release the button to end it. -
Page 13: Powering Your Layout With The Powermax Plus Transformer
Running your train Powering your layout with the PowerMax Plus Transformer our PowerMax Plus Transformer provides a total output of 2.4 amps. Also, available voltage depends on how much load is on the output. Generally, track voltage is 0-16 volts (AC). You may momentarily approach or exceed the 2.4 amp limit of the PowerMax Plus Transformer when pulling illuminated cars, or fighting over grades with heavy loads. -
Page 14: Reverse Unit Procedure
Running your train Reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmission in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interruption. Power interruptions are the signal that tells the reverse unit to sequence to the next operational state. -
Page 15: Operating The Commuter Train Horn
Running your train Operating the commuter train horn he powered unit of your train set is equipped with horn sound. Horn To operate the horn, press the HORN button on your transformer. The sound will play for as long as you hold the button. The powered commuter car features a Horn ON/OFF switch. -
Page 16: Additional Features
Running your train Additional features our commuter train also includes realistic signs. Four of these signs can be customized with the stickers that are also included. Use the blank signs to add the sticker(s) of your choice. See Figure 9. Figure 9. -
Page 17: Lubricating Your Powered Commuter Car
Maintaining and servicing your set Lubricating your powered commuter car elp your Lionel locomotive lead a long and productive life on your railroad by maintain- ing it properly. We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. -
Page 18: Replacing Your Locomotive's Traction Tire
LEDs. During the course of normal operation, you may find that the lamps require replacement. Lamp replacement should be performed by an authorized Lionel Service Center or Lionel Service in Chesterfield, Michigan. -
Page 19: Advanced Connections: Powering Two Isolated Blocks With Two Transformers
Maintaining and servicing your set Advanced connections: powering two isolated blocks with two transformers s you expand your layout, you may decide to create two isolated blocks of track. Trains in each block are controlled by separate transformers. Before you operate your trains on this type of layout, be sure that your transformers are in phase. - Page 20 (requires proof of purchase from the Lionel Authorized Retailer* it was originally purchased). Any products on which warranty service is sought must be sent freight or postage prepaid (Lionel will refuse any package when postage is due). Transportation and shipping charges are not covered as part of this warranty.
