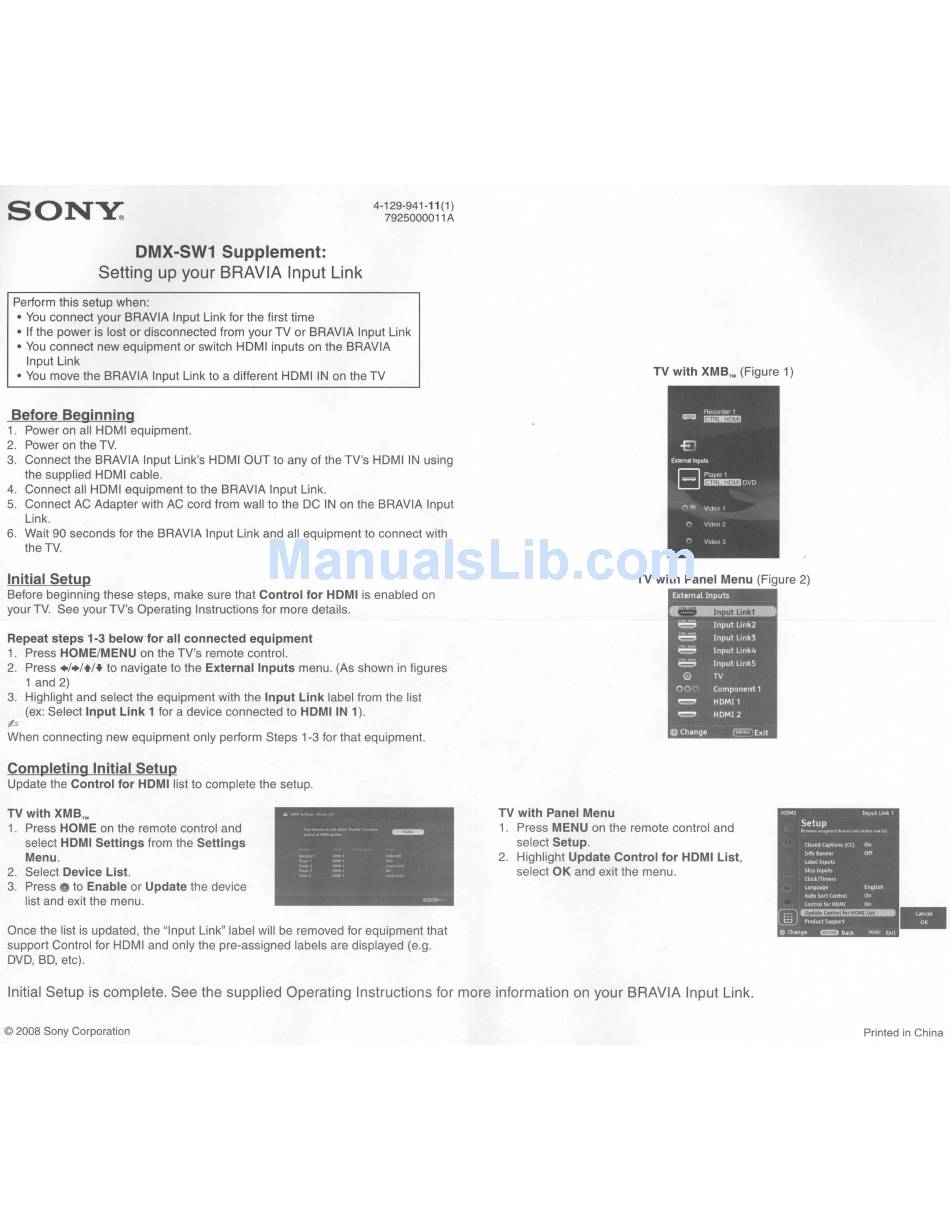

SONY:
DMX-SW1 Supplement:
Setting up your BRAVIA Input Link
4-129-941-11 (1)
7925000011A
Perform this setup when:
• You connect your BRAVIA Input Link for the first time
• If the power is lost or disconnected from your TV or BRAVIA Input Link
• You connect new equipment or switch HOMI inputs on the BRAVIA
Input Link
• You move the BRAVIA Input Link to a different HOMI IN on the TV
Before Beginning
1. Power on all HOMI equipment.
2. Power on the TV.
3. Connect the BRAVIA Input Link's HOMI OUT to any of the TV's HOMI IN using
the supplied HOMI cable.
4. Connect all HOMI equipment to the BRAVIA Input Link.
5. Connect AC Adapter with AC cord from wall to the OC IN on the BRAVIA Input
Link.
6. Wait 90 seconds for the BRAVIA Input Link and all equipment to connect with
the TV.
TV with XMB
TM
(Figure 1)
Ext
TV with Panel Menu (Figure 2)
" _ . ~ =
Input Link2
=
Input link3
=
Input Link4
=
Input linkS
<:>
TV
000 Component 1
I I : ' HOMI1
I I : ' HOMI2
Initial Setup
Before beginning these steps, make sure that Control for HOMI is enabled on
your TV. See your TV's Operating Instructions for more details.
Repeat steps 1-3 below for all connected equipment
1. Press HOME/MENU on the TV's remote control.
2. Press +/+/+/+ to navigate to the External Inputs menu. (As shown in figures
1 and 2)
3. Highlight and select the equipment with the Input Link label from the list
(ex: Select Input Link 1. for a device connected to HOMI IN 1).
P
When connecting new equipment only perform Steps 1-3 for that equipment.
Completing Initial Setup
Update the Control for HOMI list to complete the setup.
@Change
~Exit
TV with XMB
TM
1. Press HOME on the remote control and
select HOMI Settings from the Settings
Menu.
2. Select Device List.
3. Press. to Enable or Update the device
list and exit the menu.
Once the list is updated, the "Input Link" label will be removed for equipment that
support Control for HOMI and only the pre-assigned labels are displayed (e.g.
OVO, SO, etc).
TV with Panel Menu
1. Press MENU on the remote control and
select Setup.
2. Highlight Update Control for HOMI List,
select OK and exit the menu.
Input Link 1
Setup
Rt'move\r~(ognlleddeY1Ce~/lndcre.tt''' new
It..
t
ClosedCaptions(CC)
Info Banner Off
Label Inputs
Skip Inputs
ClocklTimers
Language English
Auto Sort Control On
ControlforHDMI On
(ID~
@Change cmDBack IoIEHlI Exit
Initial Setup is complete. See the supplied Operating Instructions for more information on your BRAVIA Input Link.
© 2008 Sony Corporation
Printed in China
