Ethernet Over Fiber Converter
1+1 PORT SLIMLINE DIN MOUNT
Introduction
The RLH 1+1 Port SlimLine Ethernet Over Fiber system is a
hardened, DIN mountable multifunction converter that supports
10/100M Ethernet communications over fiber optic cable. Fiber
optics not only provide the long distance Ethernet transmission
capability up to 74 miles (120km), but also provide immunity to
EMI/RFI and transient surges. They are ideal for data
communications near large electrical equipment or where radio
interference can be an issue.
The SlimLine converter is a compact unit that requires only
32mm of DIN rail space, and requires a local 12~36VDC power
to operate.
Key Features
•
Ideal for critical, high voltage, remote or un-manned
locations that must remain operating 24/7/365
•
IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
•
RJ45 UTP port with 10/100 auto-negotiation
•
MDI-II/MDI-X auto detection
•
Extends network span up to 1.2 miles (2km) on multimode and
up to 74 miles (120km) on single-mode fiber
•
Convenient LED status indicators
•
Dual and Single (bi-directional) fiber models available
•
Environmentally hardened to operate in -40˚F to +167˚F
(-40˚C to +75˚C) environments
•
DIN rail mount
•
Covered by our 5 year warranty
RLH Industries, Inc.
RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com
The leader in
rugged fiber optic
technology.
RLH Ethernet over fiber converter with DIN rail mount
Contents
Introduction
_________________________
_________________
___________________________
_________________________
__________________________
_______________________
______________________
__________________
_________________________
___________________________
_____________________
Specifications subject to change without notice.
2013A-0724
1
2
____________
2
3
4
4
5
6
6
7
8
8
Page 1
Advertisement
Table of Contents
Related Manuals for RLH Industries 1+1 PORT SLIMLINE
Summary of Contents for RLH Industries 1+1 PORT SLIMLINE
-
Page 1: Key Features

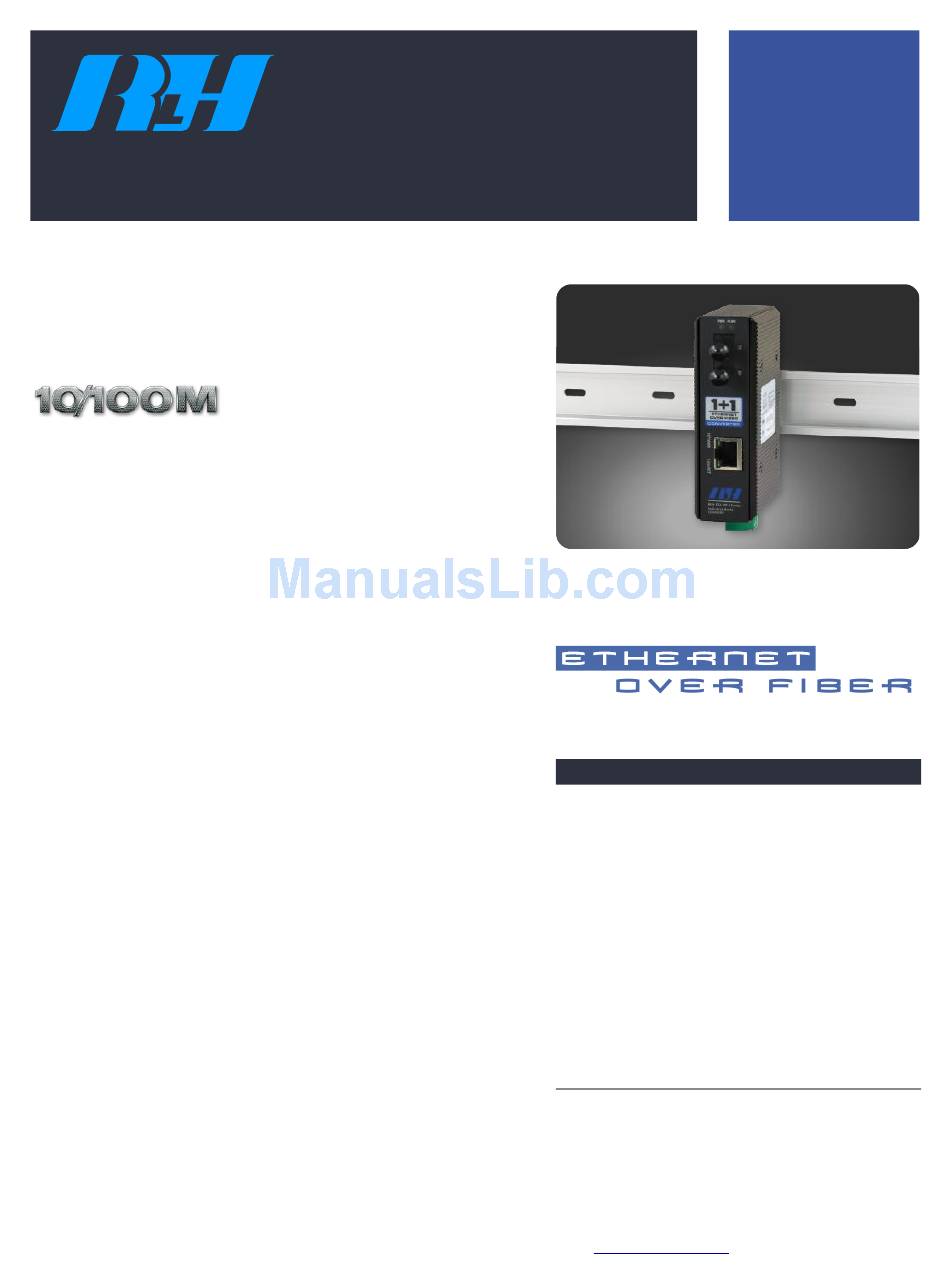

Ethernet Over Fiber Converter 1+1 PORT SLIMLINE DIN MOUNT Introduction The RLH 1+1 Port SlimLine Ethernet Over Fiber system is a hardened, DIN mountable multifunction converter that supports 10/100M Ethernet communications over fiber optic cable. Fiber RLH Ethernet over fiber converter with DIN rail mount... -
Page 2: General Safety Practices
Failure to follow ESD precautions may cause damage to the unit and prevent proper operation. Page 2 RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com... -
Page 3: Acronyms
EMI/RF interference, ground loops, and high voltage surges from lightning or ground faults, and is ideal in electrically noisy environments such as near large power sources, electrical motors, and radio communications equipment. RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page 3... -
Page 4: Installation
Connect a local 12~36VDC power supply to the power input terminals. Note: The power terminals are polarity sensitive. Attach the Positive DC wire to the V+ terminal. Page 4 RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com... -
Page 5: Led Indicators
If trouble persists, replace the unit and retest. If technical assistance is required, contact the RLH Industries, inc. technical support department: 800-877-1672 (6 am to 6 pm- PST), or call our 24/7 Technical/Customer Service: (714) 366-2503 or (714) 457-5740 RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page 5... -
Page 6: Ordering Information
Bidirectional single fiber models require a TX unit and a RX unit for a complete system Please contact your RLH sales representative for pricing and delivery information Specifications subject to change without notice. Page 6 RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com... -
Page 7: General Specifications
-49˚F to +185˚F (-45˚C to +85˚C) Humidity 10~95% non-condensing 10~95% non-condensing 10~95% non-condensing 10~95% non-condensing 10~95% non-condensing * Multimode bidirectional sing fiber optics available with SC connectors only RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page 7... -
Page 8: Specifications
This product is warranted to be free of defects in material and workmanship for up to 5 years of service. RLH Industries, Inc. will repair or replace these products that fail provided the defective part is returned to RLH freight prepaid.
