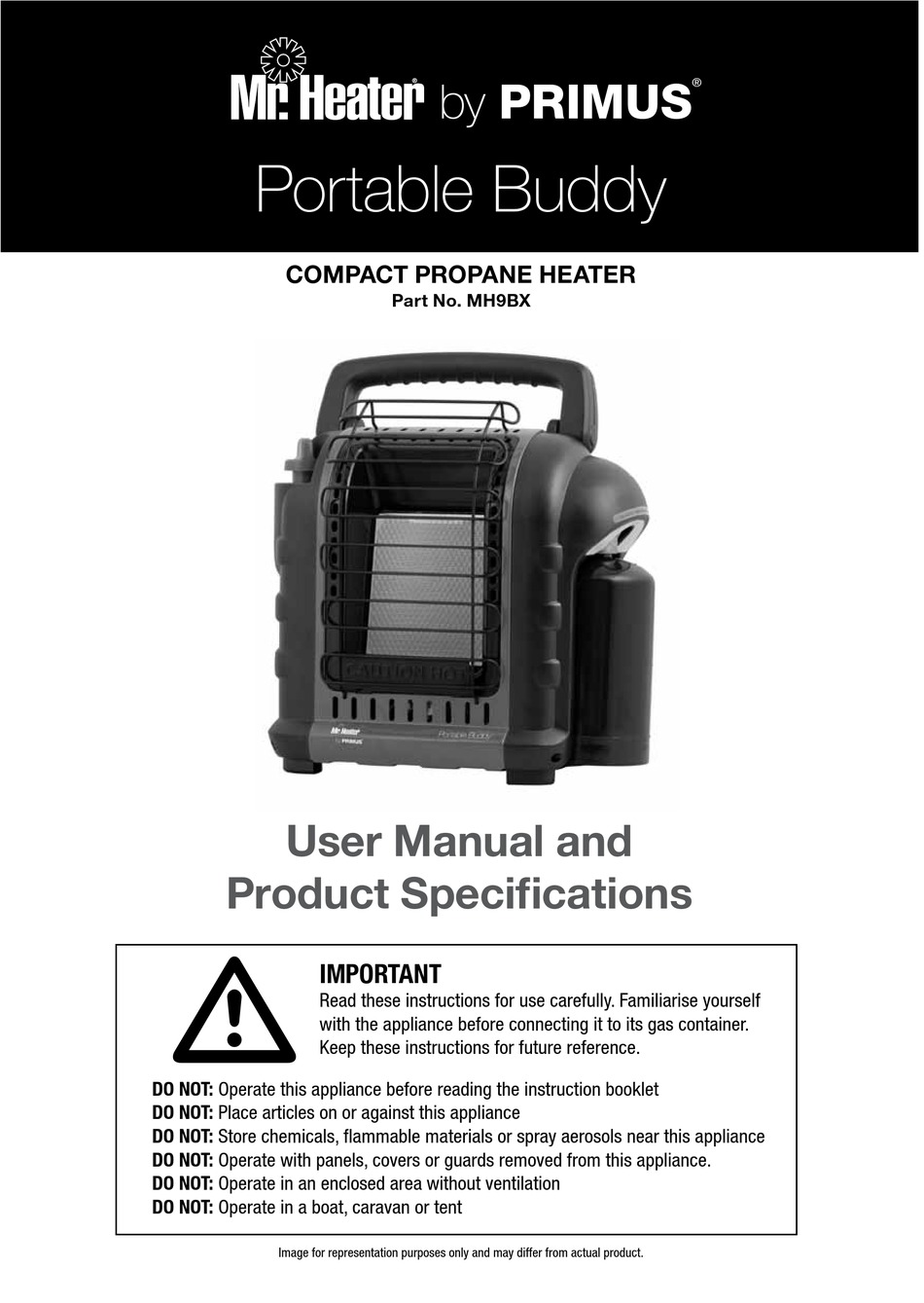

Portable Buddy
CompaCt propane Heater
User manual and
product Specifications
IMPORTANT
Read these instructions for use carefully. Familiarise yourself
with the appliance before connecting it to its gas container.
Keep these instructions for future reference.
DO NOT: Operate this appliance before reading the instruction booklet
DO NOT: Place articles on or against this appliance
DO NOT: Store chemicals, flammable materials or spray aerosols near this appliance
DO NOT: Operate with panels, covers or guards removed from this appliance.
DO NOT: Operate in an enclosed area without ventilation
DO NOT: Operate in a boat, caravan or tent
Image for representation purposes only and may differ from actual product.
by PRIMUS
part no. mH9BX
®
Advertisement
Table of Contents
Related Manuals for Mr. Heater Portable Buddy MH9BX
Summary of Contents for Mr. Heater Portable Buddy MH9BX
-
Page 1: Product Specifications
PRIMUS ® Portable Buddy CompaCt propane Heater part no. mH9BX User manual and product Specifications IMPORTANT Read these instructions for use carefully. Familiarise yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference. -
Page 2: Safety Instructions
Safety Instructions Important Important: read this instruction for use carefully. Familiarise yourself with the appliance before connecting it to the gas bottle. This 1. Please read all instructions carefully. appliance is for use with disposable propane 2. D ispose of all polythene packaging cartridges only. carefully and keep out of the hands of • D o not remove regulator, connect to young children. -
Page 3: Product Identification
Safety after installation Caution neVer assemble or operate the unit on The purpose of this section is to direct your attention to the possibility of accidents that can unstable or uneven ground. Always operate be avoided. in open and well-ventilated areas. • T his appliance is not to be used in enclosed neVer operate inside a tent, caravan, camper areas and must be operated away from any trailer vehicle or boat. type of flammable material or liquid. neVer leave the unit unattended • T his appliance must be operated a whilst operating. - Page 4 Safety Instructions This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of the following: (A) A n enclosure with walls on all sides, but with no overhead cover. (B) W ithin a partial enclosure that includes an overhead cover and no more than two walls. (C) W ithin a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: (1) A t least 25% of the total wall area is completely open.
-
Page 5: Lighting And Operating Instructions
Lighting and operating Instructions Step 1 WarnInG: Always inspect propane cylinder and heater propane connections for damage, dirt, and debris before attaching propane cylinder. Do not use if head of cylinder is damaged, punctured or deteriorated. • Use only LP Gas cylinders marked in accordance with the U.S. Dept. of Transportation (DOT). • Use only 468g disposable cylinders that mate with No. 600 valve connection. -
Page 6: Shutdown Instructions
Step 4 • After pilot lights, hold down for 30-60 seconds and then release knob. Knob should return to fully extended position. • To operate heater, slightly depress Control Knob and gently turn to lock in the “HI”. position to light burner tile. Leave on “HI” position until burner tile turns bright orange. -
Page 7: Maintenance
maintenance appliance is only to be serviced or repaired by an authorised service centre. return appliance to place of purchase or contact primus Customer Service (contact details on back cover). Always keep the heater area clear and free from combustible materials, gasoline and other flammable vapors and liquids. Keep the vent areas (slots in the bottom and the top at the front and rear of heater) clear at all times. -
Page 8: Replacement Parts List
32085 Housing, Left, Plastic, Black 33093 Panel, Front, Metal, Green 14. 32021 Reflector, Metal 75191 Panel, Back, Metal, 15. 33088 Tile, Replacement Kit, MH9BX w/32004, Red 16. 32032 Burner, Assy 75194 Panel, Back, Metal, 17. 33090 Housing, Right, Plastic, Gray... -
Page 9: Troubleshooting Instructions
troubleshooting Instructions problem remedy Check spark electrode; if defective, replace ODS (Oxygen Depletion Sensor). Check igniter wire is correctly attached to spark If Spark electrode does not produce electrode. spark. Check igniter wire; if damaged, replace. Check piezo igniter; if defective, replace control valve. No gas to heater – install disposable cylinder or connect hose and filter where required and turn on valve at remote cylinder. If Spark electrode produces spark but Check if “PILOT” position is properly aligned – turn pilot does not light. gas control knob to “PILOT” position and depress. Check is pilot is blocked from spider web or dirt – clean pilot, see MAINTENANCE. Check if control knob in “PILOT” position not completely depressed or held in long enough to purge air from lines. If Pilot flame does not stay lit when knob If pilot flame is not surrounding thermocouple – clean is released. pilot, see MAINTENANCE. Check if pilot assembly is defective – replace. Check if tip switch wires are disconnected – connect. Check if main burner orifice is blocked – clean If Main burner does not ignite. burner, see MAINTENANCE. Check if pilot is blocked – clean pilot, see MAINTENANCE. Tip over switch may have been activated from bumping heater. Re-light. If Heater keeps shutting “OFF” during normal operation. Check if regulator is defective - Replace regulator. -
Page 10: Specifications
Specifications Part No: MH9BX Dimensions: 330 x 204 x 343mm Net Weight: 3.69kg (excluding cylinder) Injector Size: 0.93mm Gas Consumption: 9.5 Mj/hr 189 g/hr this appliance - Must only be serviced by an authorised person - Suitable for camping use only - Shall NOT be exposed to moisture or rain - S hall only be used with a propane gas cartridge certified to: DOT2P, UN2037, EN417 - M ay be hazardous to attempt to fit other types of gas containers - Only be used in a well ventilated area - Can produce carbon monoxide which has no odor. - Page 12 Distributed by CUStomer SerVICe 1300 555 197 PRIMUS AUSTRALIA PTY LTD Bundoora Victoria 3083 enquiries@primusaustralia.com.au www.primusaustralia.com.au...
