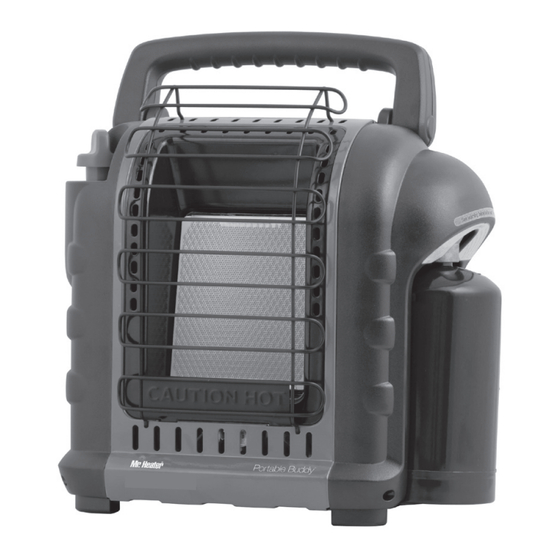

Mr. Heater MH9BX Operating Instructions And Owner's Manual
Portable buddy radiant heater, compact propane heater
Hide thumbs
Also See for MH9BX:
- User manual ,
- Operating instructions and owner's manual (24 pages) ,
- User manual and product specifications (13 pages)
Related Manuals for Mr. Heater MH9BX
Summary of Contents for Mr. Heater MH9BX

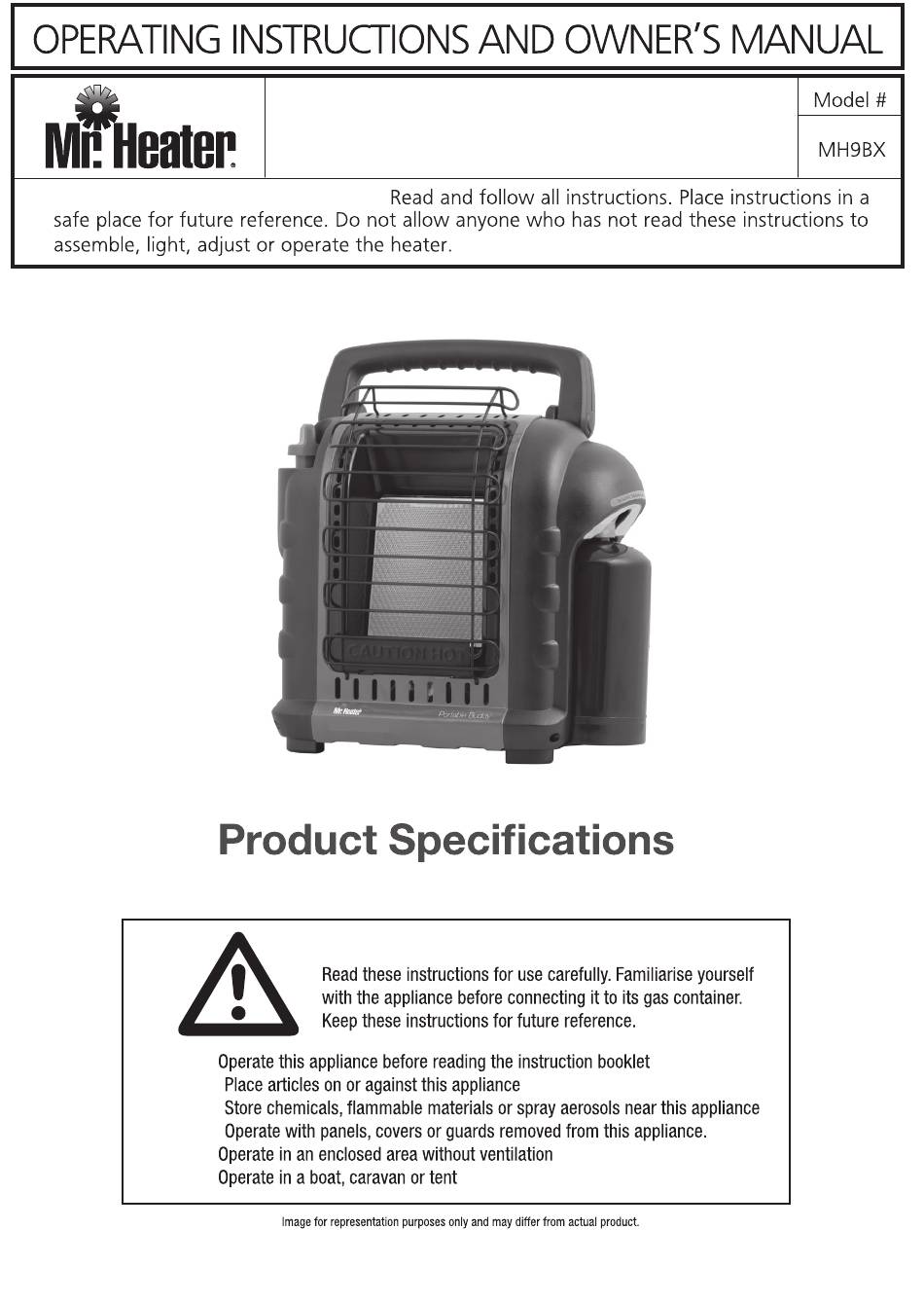

- Page 1 PORTABLE BUDDY RADIANT HEATER READ INSTRUCTIONS CAREFULLY: User Manual and COMPACT PROPANE HEATER Part No. MH9BX IMPORTANT DO NOT: DO NOT: DO NOT: DO NOT: DO NOT: DO NOT:...
-
Page 2: Safety Instructions
Safety Instructions Important IMPORTANT: read this instruction for use carefully. Familiari e yourself with appliance before connecting it to the gas 1. Please read all instructions carefully. bottle. This appliance is for use with l l a disposable propane c only. - Page 3 Safety after installation Caution The purpose of this section is to direct your NEVER assemble or operate the unit on attention to the possibility of accidents that can unstable or uneven ground. Always operate be avoided. in open and well-ventilated areas. NEVER operate inside a tent, caravan, camper •...
- Page 4 Safety Instructions This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of the following: s l l no overhead cover.
- Page 5 Lighting and Operating Instructions Step 1 WARNING: Always inspect propane c and heater propane connections for damage, dirt, and debris before attaching propane . Do not use if head of c damaged, punctured or deteriorated. • Use only LP Gas c marked in accordance with the U.S.
-
Page 6: Shutdown Instructions
Step 4 • After pilot lights, hold down for 30-60 seconds and then release knob. Knob should return to fully extended position. ¥ ¥ ¥ Warning: DO NOT OPERATE HEATER UNLESS CONTROL KNOB IS LOCKED IN POSITION MARKED “ PILOT”. NEVER SET CONTROL KNOB BETWEEN LOCKED POSITIONS. -
Page 7: Maintenance
Maintenance Appliance is only to be serviced or repaired by an authorised service centre. Return appliance to place of purchase or contact Customer Service (contact details on back cover). Always keep the heater area clear and free from combustible materials, gasoline and other Keep the vent areas (slots in the bottom and the top at the front and rear of heater) clear at all times. -
Page 8: Replacement Parts List
33094 Panel, Front, Metal, Yellow 32085 Housing, Left, Plastic, Black 33093 Panel, Front, Metal, Green 75191 Panel, Back, Metal, 15. 33088 Tile, Replacement Kit, MH9BX w/32004, Red 16. 32032 Burner, Assy 75194 Panel, Back, Metal, 17. 33090 Housing, Right, Plastic, Gray... -
Page 9: Troubleshooting Instructions
Troubleshooting Instructions Problem Remedy Check spark electrode; if defective, replace ODS (Oxygen Depletion Sensor). Check igniter wire is correctly attached to spark If Spark electrode does not produce electrode. spark. Check igniter wire; if damaged, replace. Check piezo igniter; if defective, replace control valve. - Page 10 Part No: MH9BX Dimensions: 330 x 204 x 343mm Net Weight: 3.6 kg (excluding cartridge) Injector Size: 0.96mm Gas Consumption: 9.5 Mj/hr 189 g/hr This Appliance Must only be serviced by an authorised person Suitable for camping use only Shall NOT be exposed to moisture or rain...
- Page 12 DO NOT REMOVE ® AUSTRALIA AND NEW ZEALAND GAS SAFETY CERTIFICATION...
