3. MODULES
Module Information
SIGNALISATION.
When the fader is open, and AB-switch is on, the fader start relay for the
channel will be closed when the channel is in LINE position. In MIC
position, the CUE1 or CUE2 signalling bus may be fed (jumper
dependant).
JUMPER SETTINGS.
The following jumper settings are available for the module.
•
INSERT option
•
CUE1 or CUE2 or no CUE when on air
•
AUX POST dependent/independent of AB-switch
•
PFL muted by ON AIR, or PFL independent of ON AIR

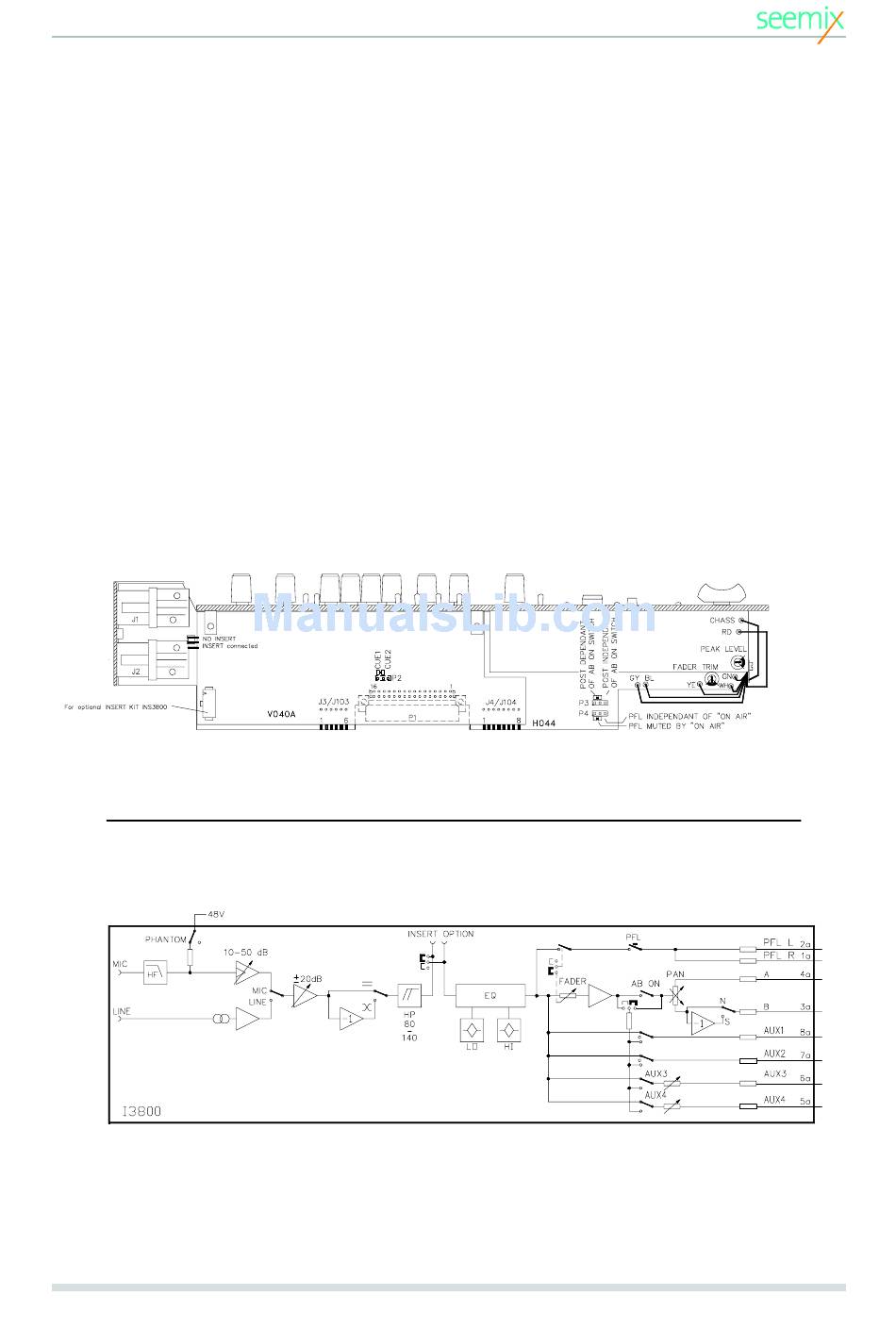

The positions of these jumpers are indicated in the diagram below.
Jumper settings
I3800 MODULE AUDIO BLOCK DIAGRAM
