3.
MODULES
3.6

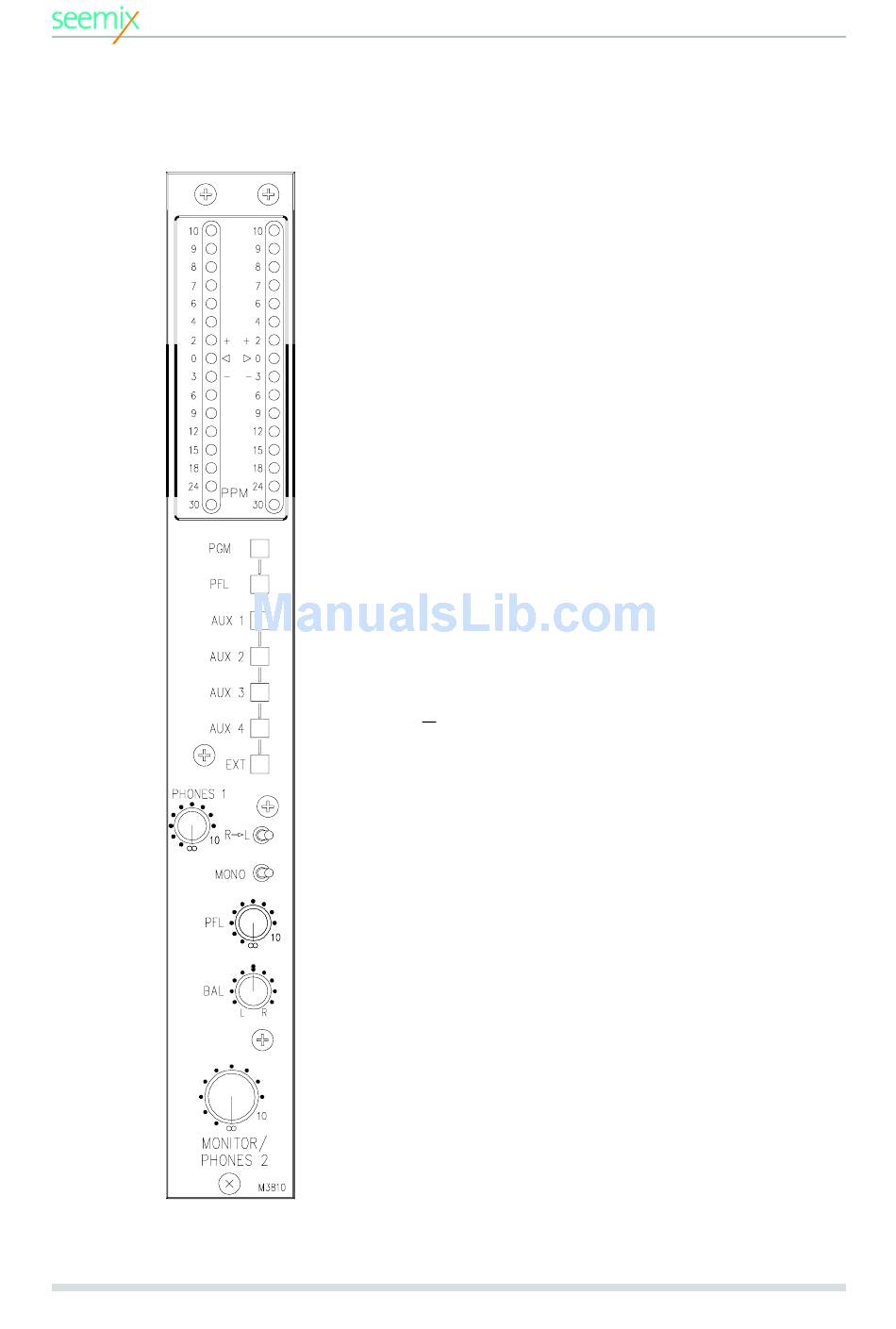

Monitor Module, M3810
STEREO PPM
Peak Programme Meter fitted with 16 LEDs.
Nordic scale: 0 dB on meter = 0 dBu output.
PGM
Sends stereo A/B sum to monitor output.
PFL
Sends stereo PFL sum to monitor output.
AUX 1 - AUX 4
Sends mono AUX1-AUX4 sums to both left and right moni-
tor outputs.
EXT
Sends signal from external stereo input (2 XLRs on back
panel), or from optional Y3802 module, to monitor output.
This routing is jumper selectable. See section 3.8 for infor-
mation on Y3802 module.
►
R
L
Sends right monitoring channel to both right and left moni-
toring outputs.
PHONES 1
Level control for the Phones 1 headphone output. The pho-
nes 1 output can be set to follow either the selected monito-
ring output, or always programme (jumper selectable). This
can be set individually for left and right outputs.
MONO
Sends mono sum of both monitoring channels to both out-
puts.
PFL
Potentiometer for adjusting level of PFL mono output.
BAL
Potentiometer for adjusting L/R balance of the stereo moni-
tor output.
MONITOR / PHONES 2
Level control for monitor/phones 2 output.
16
© Seemix Sound AS
