3. MODULES
3.11

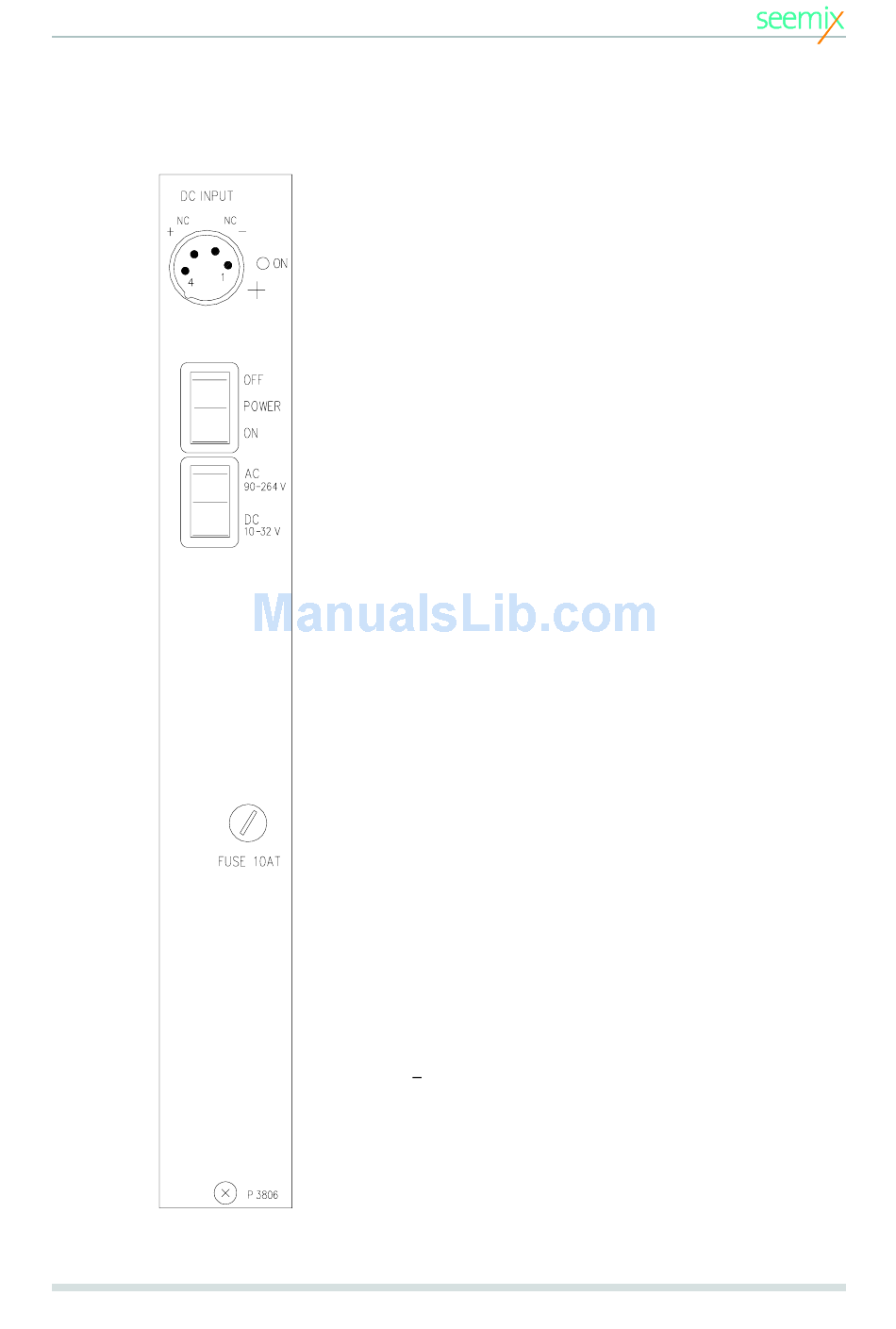

AC/DC Power Supply Module, P3806

Seeport 2 User Manual
DC INPUT
4-pole XLR connector for connecting DC power.
ON
An LED indicates that the unit is switched on.
POWER
Mains switch for switching the unit on and off
AC / DC SWITCH
Selects whether the mixer is to be fed from AC or DC supply.
FUSE 10AT
10 amp slow-blow fuse for protection of DC input.
Module Information
The module accepts all mains voltages between 90 and 264
V AC, or 10-32V DC. The output voltages generated internal-
ly are +15V and 48V.
