4.2 How to Use The Virtual IP Address

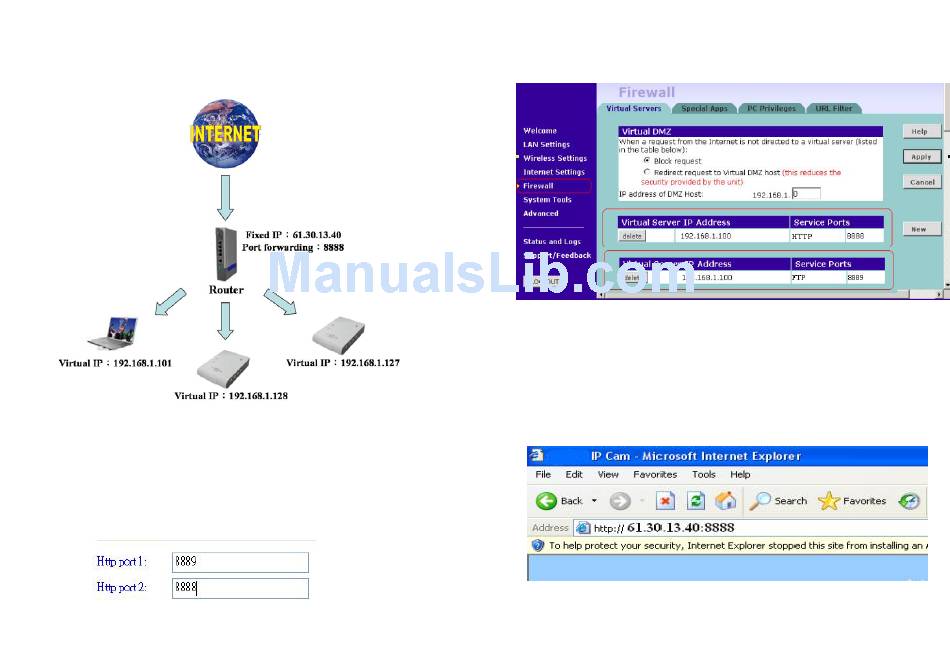

If your network Architecture supports the following figure, you will need to do port and local virtual
IP forwarding in the firewall or gateway setup.
Step 1：In this Page http://192.168.1.127/Ctl/index.htm?Cus?Audio/, please select "Configuration"
and "System" assign two different port numbers for the Http Protocols ( for example HTTP：8889,
HTTP：8888 )
(Please remember reboot the system)
6
Step 2：Setup your firewall or gateway, and assign a Local Virtual IP: 192.168.1.127 and open
a port 8888 and 8889 for the IP Video Server 4 Port, the following figure is just a example,
you need to ask your Internet Service Provider.
Step 3：In the Local PC, please open the Internet Explorer then key in the IP address：
http://192.168.1.127
Step 4：In the Remote PC, please open the Internet Explorer, then key in the IP address：
http://61.30.13.40:8888
