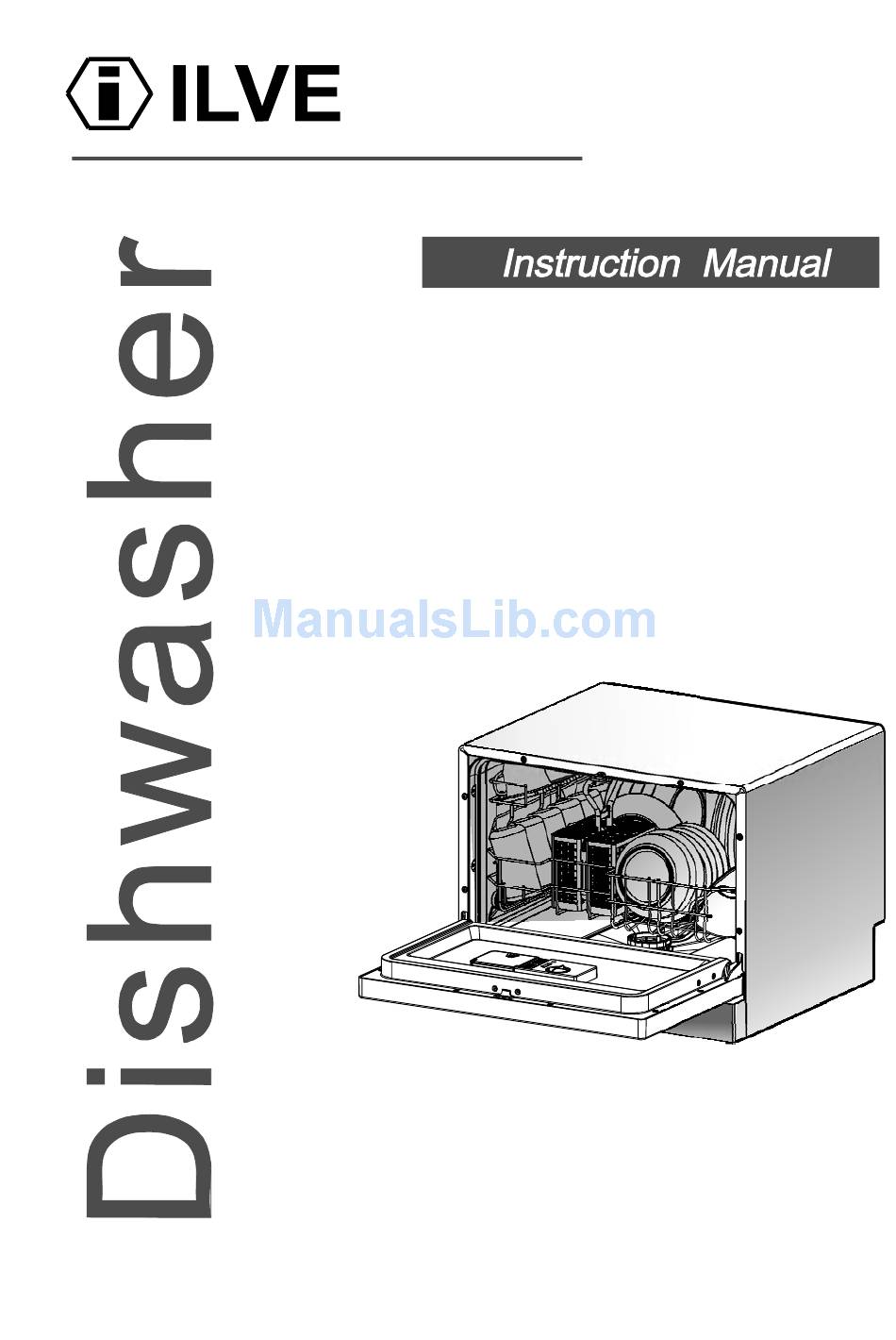

- Page 1 IVDFS645...
-
Page 2: Table Of Contents
Dear Customer, Please carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly. Keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. Control Panel...........3 Dishwasher Features........ - Page 3 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in a risk of electric shock. the risk of electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
-
Page 4: Control Panel
Dispo se of the dishwasher packaging material correctly. All pa ckaging materials ca n be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e .g. sheet wrapping material for polysty rene, e.g. padding material po lyoxymethylene, e.g. pla stic clips polypropylene, e.g. -
Page 5: Baskets
To get the best performance from your dishwasher, read all operating instructions before using it for the first time. PROG. Po wer Button: To turn on/off the power supply. Delay Button To press the button to delay time (0~24hours) Po wer Light : To be on when the ON/OFF Button is 3in1 function Button: To press the button When Pressed down. -
Page 6: Rinse Aid Dispenser
Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. -
Page 7: Adjusting Rinse Aid Dispenser
Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. -
Page 8: Amount Of Detergent To Use
Detergent Dispenser The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table . Your dishwasher uses less dete rgent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. - Page 9 Consider buying utensils which are ide ntified as dishwasher-proof. Use a mild detergent that is de scribed as 'kind of dishes'. If necessary, seek further information from detergen t ma nufacturers. For particular items, select a p rogramme with a s low a temp erature. To prevent damage, d o not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
-
Page 10: Cutlery Basket
Position the dishes and cookware so that they will not g et moved by the spra y of water. Cups Saucers Glasses Dessert dishes So up plate s Dinner plates Cutlery basket Plate racks of Basket The basket is fitted with plate racks which can be stowed horizontal if required. - Page 11 Cutlery should be pla ced in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at th e front o f the upper b asket as shown. 3 3 3 Soup spoons 2 Forks...
-
Page 12: When Load Bigger Dinner Plates
Plate racks of Basket When load bigger Dinner plates, please fold the rack to left picture showed location. The maximum plate can be loaded is 270mm(10 inches) diameter. Position the dishes and cookware so that they will not get moved by the spray of water. Cups Large serving bowl Saucers... - Page 13 Mean s: need to fill rinse into th e Rinse-Aid Dispenser. AS/NZS 2007. 1 : This program is the test cycle, the rins e-aid dispen ser setting is recommended to Position 6. Pre-wash 50 For the heaviest soiled loads, Wash (70 such as pots,pans,casserole Rinse 4/18.5g...
-
Page 14: Unloading The Dishwasher
Premise: You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "... -
Page 15: Fine Filter
The filter prevent larger remnants of food o r other o bje cts from getting inside the pump. The filter system con sists of a coarse filter, a flat (Main filter) and a micro filte r (fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a spe cial jet on the spray arm and washed down to drain. -
Page 16: Cleaning The Filter
Remarks: - Inspect the filters for blo cking e very time the dis hwa sher has been used. - By unscrewing the coarse filter.you can remove the filter sys tem.Remove any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week. -
Page 17: Cleaning The Spray Arms
Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. Grasp the middle of the spray arm, pull it upwards to remove it. - Page 18 Position the applianc e in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can b e positioned to the right or the left to facilitate proper installation. For personal safety: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
- Page 19 Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the spe ial plastic support that comes with the appliance. The free end of the hose must be at a height lower than 30cm and must not be immersed in water to avoid the back flow of it.
-
Page 20: Water Outlet
How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the exces s water in hoses cannot be drained directly into the sink. It will b e necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 21: Technical Problems
Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped. appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on. closed securely. -
Page 22: Wash Cycle Table
The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed. - Page 24 Warranty Card ilve.com.au Eurolinx Pty Limited A.B.N. 50 001 473 347 including but not limited to: trading as ILVE (“ILVE”) (a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);...
- Page 25 Warranty Card ilve.com.au 5. Proof of Purchase (i) replacing or repairing the defective part of the ILVE product; Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect (ii) paying the cost of replacing or repairing the of an ILVE product.
