Summary of Contents for iLive IVFID10

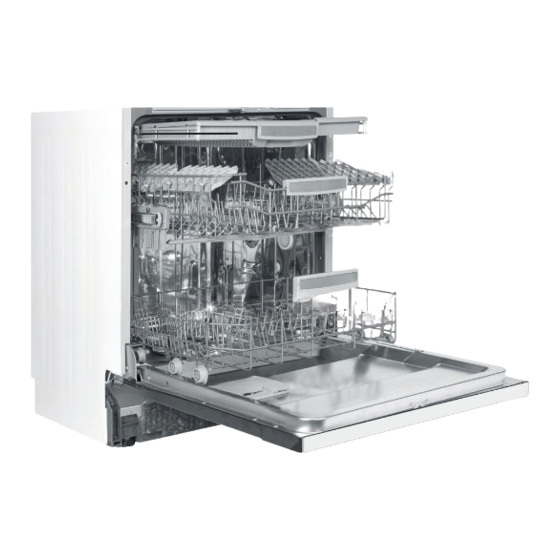

- Page 4 1. Upper basket with racks 2. Upper spray arm 3. Lower basket 4. Lower spray arm 5. Filters 6. Rating plate 7. Control Panel 8. Detergent and rinse-aid dispenser 9. Upper basket track latch 10. Upper Cutlery Basket 11. Ceiling Spray Arm: It provides a better wash for the dishes in the upper basket.
- Page 5 Technical specifications Capacity 15 place settings Height 820 mm - 870 mm Width 598 mm Depth 550 mm Net Weight 38 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power 30 W Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
-
Page 6: Safety Information And Recommendations
SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling. - Page 7 plate. • Be sure that the machine does not stand on the electricity supply cable. • Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after installation. • After installation, run it unloaded for the first time. •...
- Page 8 been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • Do not put into your machine those items which are not suitable for dishwashing.
-
Page 9: In Case Of Malfunctioning
• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine. • Be sure that your old machine does not pose any threat to your children. Children have been known to get themselves locked in old machines. -
Page 10: Installing The Machine
• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;... -
Page 11: Water Connection
ensures problem-free opening and closing of the door. If the door of machine does not close properly, check if the machine is stable on the floor; if not, adjust the feet and ensure its stable position. Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust... -
Page 12: Water Inlet Hose
Water inlet hose Do not use the water inlet hose of your old machine. Use the new one supplied with your machine instead. If you will connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection. - Page 13 When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician to carry out it.
- Page 14 authorised service or an authorised electrician only. Failure to do so may lead to accidents. For safety purposes, always make sure to disconnect the plug when a wash In order not to cause an electric shock, do not unplug when your hands are wet. When disconnecting your machine from the mains supply, always pull from the plug.
-
Page 15: Preparing The Machine For Use
PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the mac hine. •... - Page 18 Katlanabilir raflar Üst sepetteki katlanabilir raflar; ten- cereler, tavalar vb. büyük mutfak gereçlerini makineye daha kolay yerleştirebilmeniz için tasarlanmıştır. İsterseniz her parçayı ayrı ayrı veya beraber katlayıp daha fazla alan elde edebilirsiniz. Katlanabilir rafları yukarı doğru kaldırarak veya katlayarak kul- lanabilirsiniz.
-
Page 24: Getting Familiar With Your Machine
Getting familiar with your machine (10) - Page 27 (10)
- Page 29 (10)
- Page 30 Turning on the Inner Light Option Open the dishwasher door and press the Power On/Off touch button to turn on the machine. Press and hold both the ‘’Tablet/Energy Save’’and "Delayed start" touch buttons simultaneously for 5 seconds “IL0” will be shown on the display for 2 seconds to indicate that the “Normal Mode”...
- Page 31 (10)
-
Page 32: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. - Page 33 Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.
- Page 38 ILVE LIMITED WARRANTY Eurolinx Pty Limited A.B.N. 50 001 473 347 trading (a) damage through misuse (including failure to as ILVE (“ILVE”) maintain, service or use with proper care), neglect, Office: 48-50 Moore Street, Leichhardt N.S.W 2040 accident or ordinary wear and tear (including Post: Locked Bag 3000, Annandale, N.S.W 2038 deterioration of parts and accessories and glass P: 1300 MY ILVE (694 583)
- Page 39 ILVE LIMITED WARRANTY 6. Claiming under the Warranty You are entitled to a replacement or refund for a major Customers will bear the cost of claiming under this failure and for compensation for any other reasonably Warranty unless ILVE determines the expenses are foreseeable loss or damage.
- Page 42 H = 840 mm...
