User Manual
6

Start-up

6.1

Basic installation

Install the modem as follows:
1. Exit Microsoft Windows 9x or Windows 2000 and switch off the
computer.
2. Insert the GSM antenna in the SMB socket of the modem.

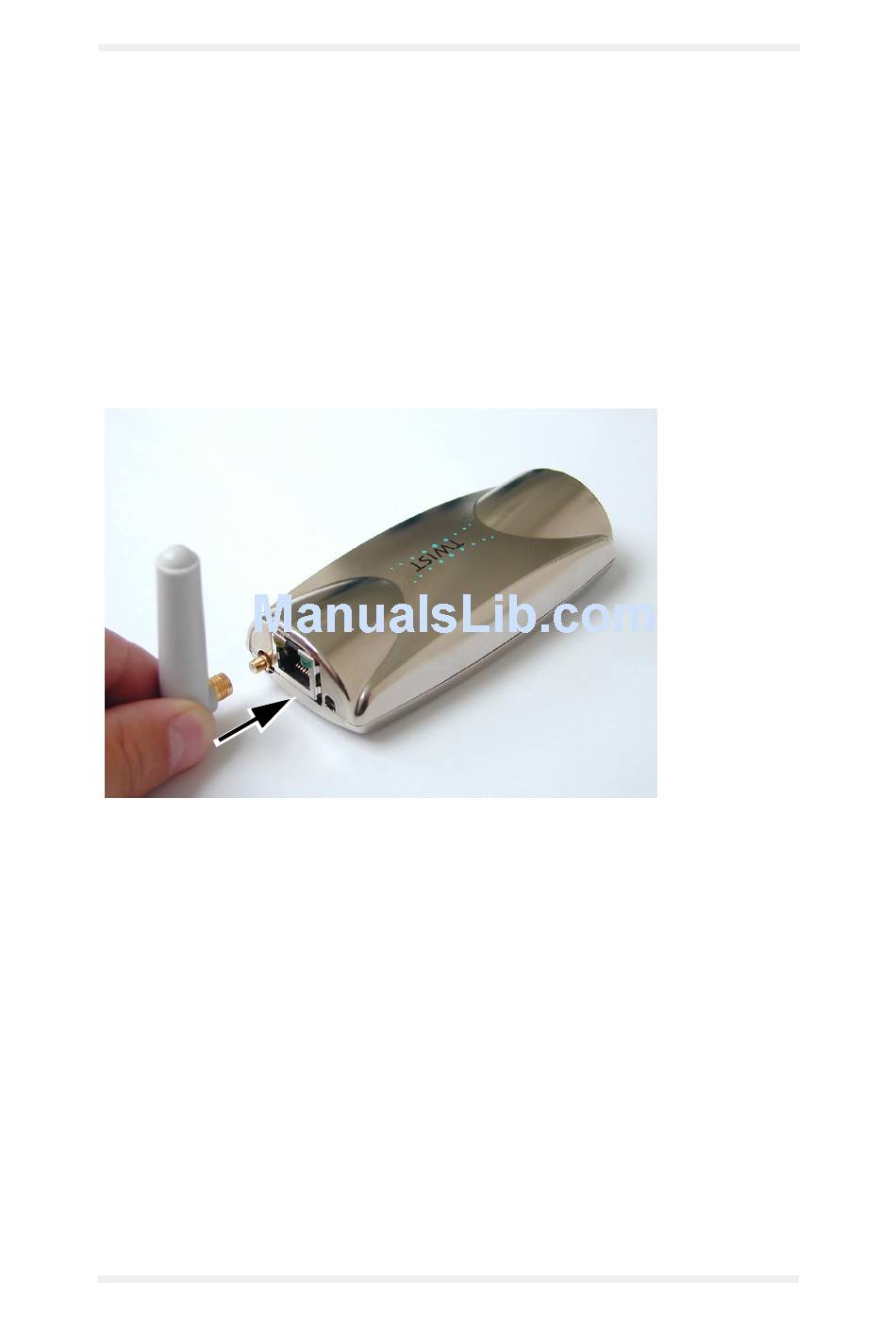

Fig. 3: Installing the GSM antenna
3. Connect the data cable to the 9-pole COM1 or COM2 port
(depending on which COM is available) of the computer and
tighten the screws hand-tight with a screwdriver (see Fig. 4).
Connect the other end of the data cable to the serial port of the
modem and tighten the screws hand-tight with a screwdriver (see
Fig. 5).
TWIST GSM-Modem Version 1.00
Start-up
Page 21
