Summary of Contents for Qtx UH5

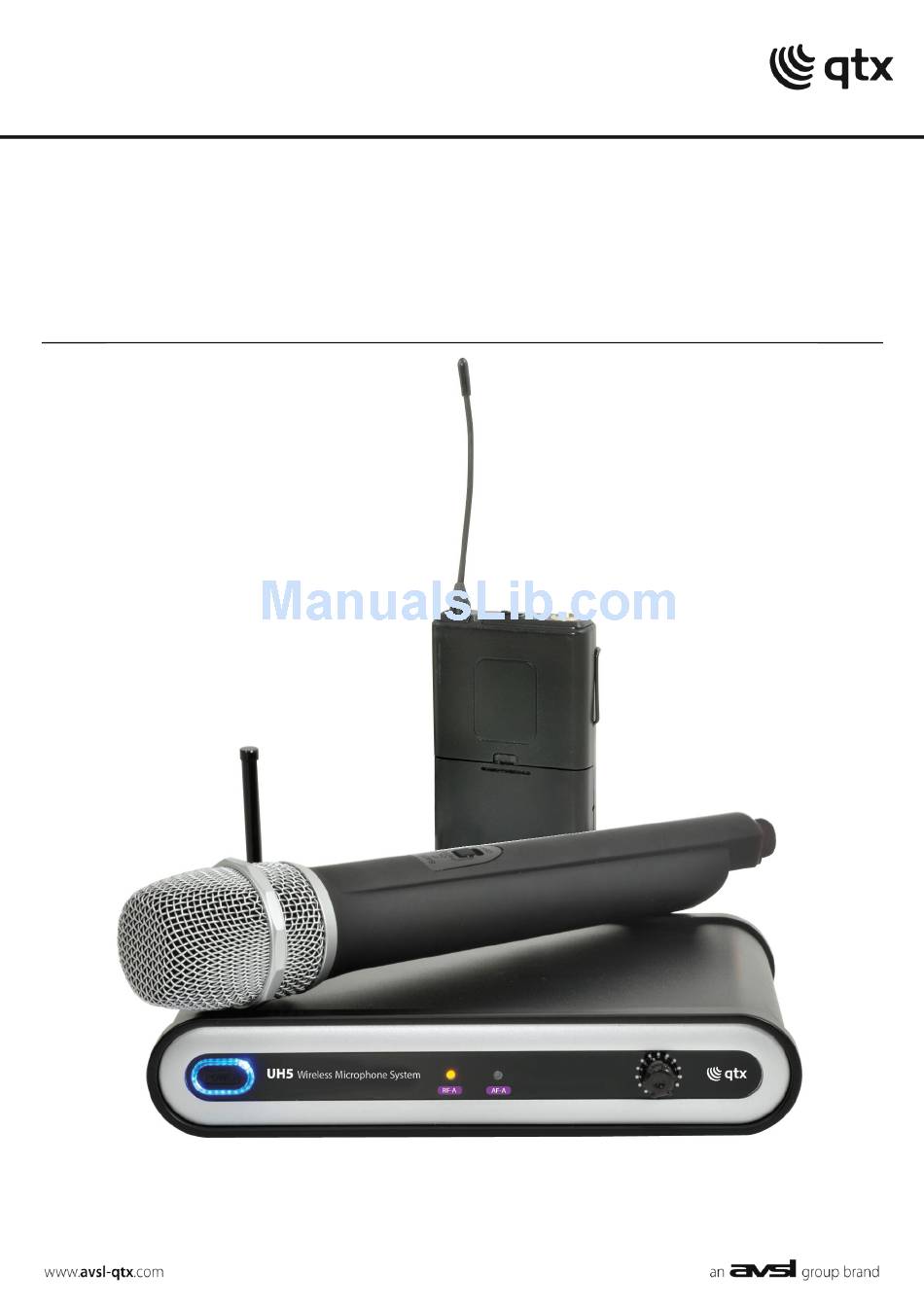

- Page 1 UH5, UN5 UHF Wireless Systems User Manual 171.802UK, 171.803UK Version 1.0...
- Page 2 Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing this QTX Sound UHF wireless system. This professional wireless set provides a high quality microphone with UHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
- Page 3 Handheld Transmitter Bodypack Transmitter Receiver Front Panel 10. Power ON/OFF switch 11. RF carrier indicator 12. AF audio level indicator 13. Output level control Receiver Rear Panel 4. Antenna 14. Unbalanced jack output 1. Windshield 5. RF indicator 15. Balanced XLR output 2.
-
Page 4: Specifications
In these circumstances, it may be better to move the transmitter switch to the “MUTE” position, which maintains the radio frequency carrier signal but mutes the microphone input. When this switch is moved back to the “ON” position, the sound will be immediately restored. If the wireless system is not to be used for longer periods, it is preferable to slide the transmitter switch to the “OFF”...
