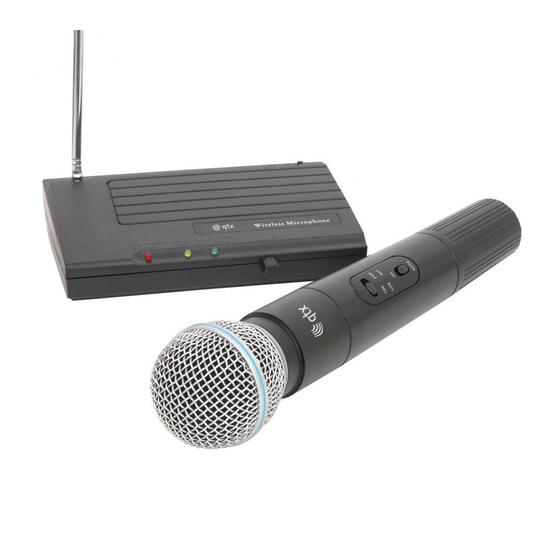

Item ref: 171.801UK
VH45B
WIRELESS MICROPHONE SYSTEM
User Manual
Version 1.2
Thank you for your purchase of the VH45B wireless microphone system. Please read the following
instructions carefully before using this product to ensure best results and to avoid damage through
misuse.
Note – no user serviceable parts inside, refer all servicing to a qualified technician.
Advertisement
Table of Contents
Related Manuals for Qtx VH45B
Summary of Contents for Qtx VH45B

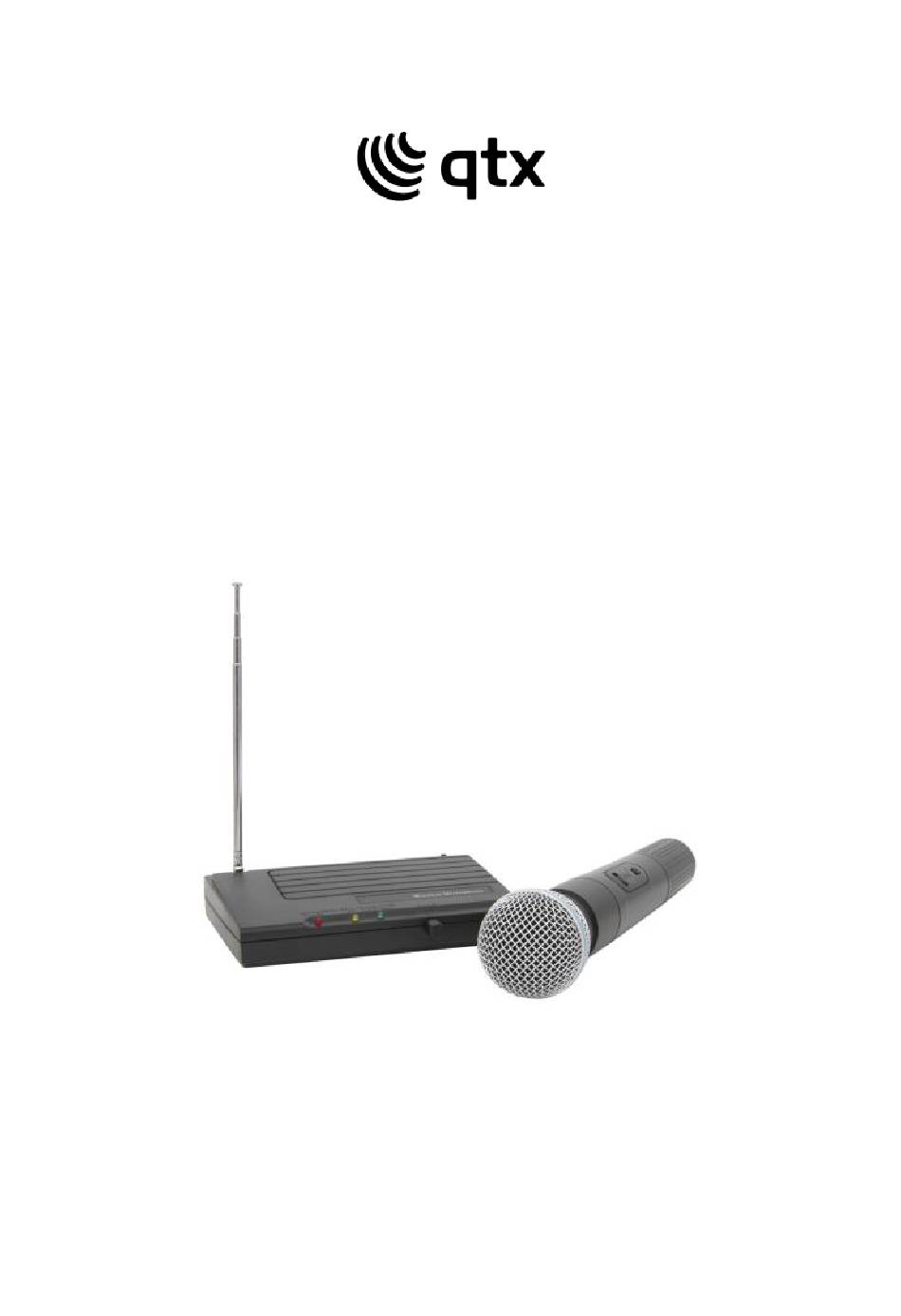

- Page 1 WIRELESS MICROPHONE SYSTEM User Manual Version 1.2 Thank you for your purchase of the VH45B wireless microphone system. Please read the following instructions carefully before using this product to ensure best results and to avoid damage through misuse. Note – no user serviceable parts inside, refer all servicing to a qualified technician.
- Page 2 Safety Connect the D.C. adapter to the wireless receiver and ensure the correct mains voltage and that the D.C. adapter and lead is intact before plugging into the mains outlet. Ensure that the handheld transmitter has a 9V battery (PP3) installed which is in good condition with adequate charge (alkaline type is recommended) Avoid contact with moisture for any of the system components and keep all parts clear of dust and foreign objects.
- Page 3 Product layout Receiver POWER LED – illuminated when power to receiver is on RF LED – illuminated when receiver detects RF carrier signal AUDIO PEAK LED – illuminates to indicate audio reaching peak level VOLUME – rotate clockwise to increase output level ANTENNA –...
- Page 4 With the VOLUME control turned fully down (anticlockwise), connect the DC adapter to the receiver unit and then into the mains outlet, making sure that the adapter and lead are in good condition. Switch on the POWER on the handheld transmitter and check that the RF LED is illuminated on the receiver.
