Tube Complement - K&M Analog Designs Two-Rock Topaz Owner's Manual

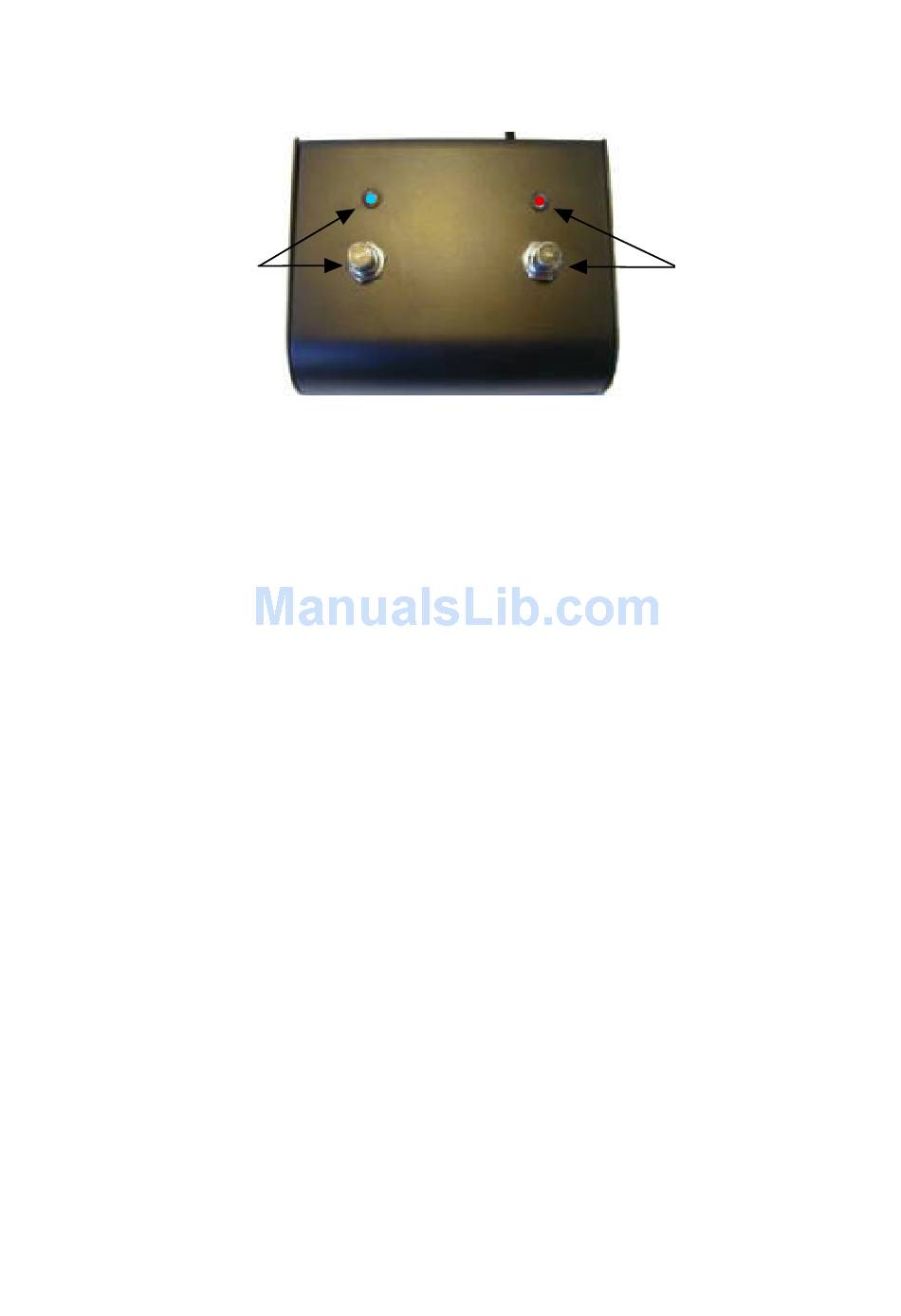

FOOT SWITCH
Lead
Bypass
(Blue LED)
(Red LED)

TUBE COMPLEMENT

V1- 12AX7, Rhythm channel
V2- 12AX7, Lead channel
V3- 5751, Reverb driver
V4- 12AX7, Reverb / effects
V5- 12AX7, Phase inverter
V6, V9- 7581, Output
V7, V8- 7581, Output (100 Watt only)
Tubes are numbered from right to left as you face the rear of the amp.
Each fine production tube is tested and matched to our exacting
specifications. Individual bias controls are provided for each output, as well
as phase-balance adjustment. This ensures maximum tube life, power, and
performance.
NOTE: Please do not attempt to adjust tube bias or phase balance. Refer service
to qualified service person only.
LINE CORD- For your safety, connect to grounded A/C receptacle only.
