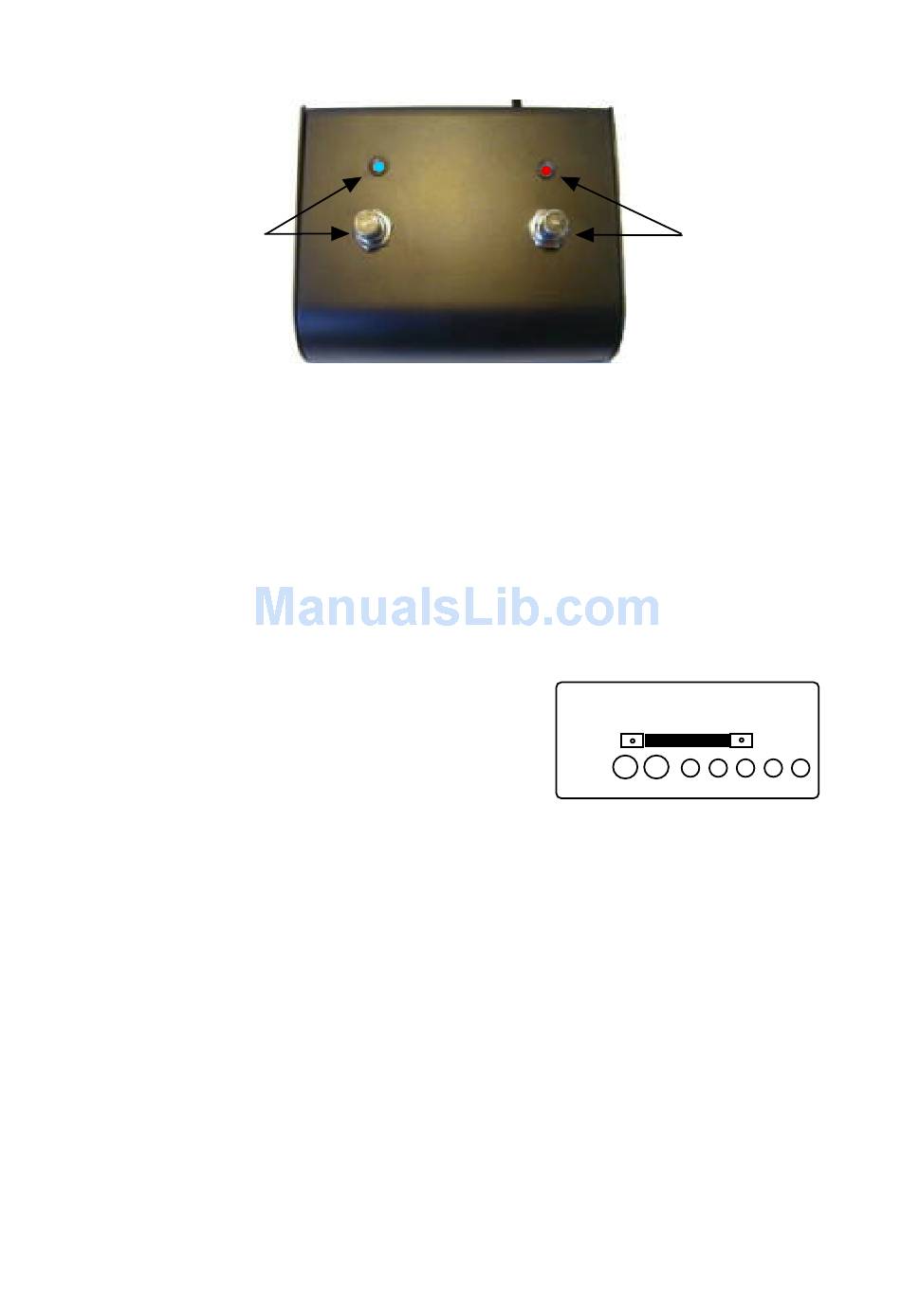

FOOT SWITCH

Lead
Boost
(Blue LED)
(Red LED)

TUBE COMPLEMENT

The Tube Location
V1- 12AX7, Rhythm channel
Front
V2- 12AX7, Lead channel
V3- 5751/12AT7, Reverb driver
V4- 12AX7, Reverb / effects
V7 V6
V5 V4 V3 V2 V1
V5- 12AX7, Phase inverter
Rear
V6, V7- 7581, Output
Each fine production tube is tested and matched to our exacting
specifications. Individual bias controls are provided for each output, as well
as phase-balance adjustment. This ensures maximum tube life, power, and
performance.
NOTE: Please do not attempt to adjust tube bias or phase balance. Refer service
to qualified service person only.
LINE CORD- For your safety, connect to grounded A/C receptacle only.
Page 5
