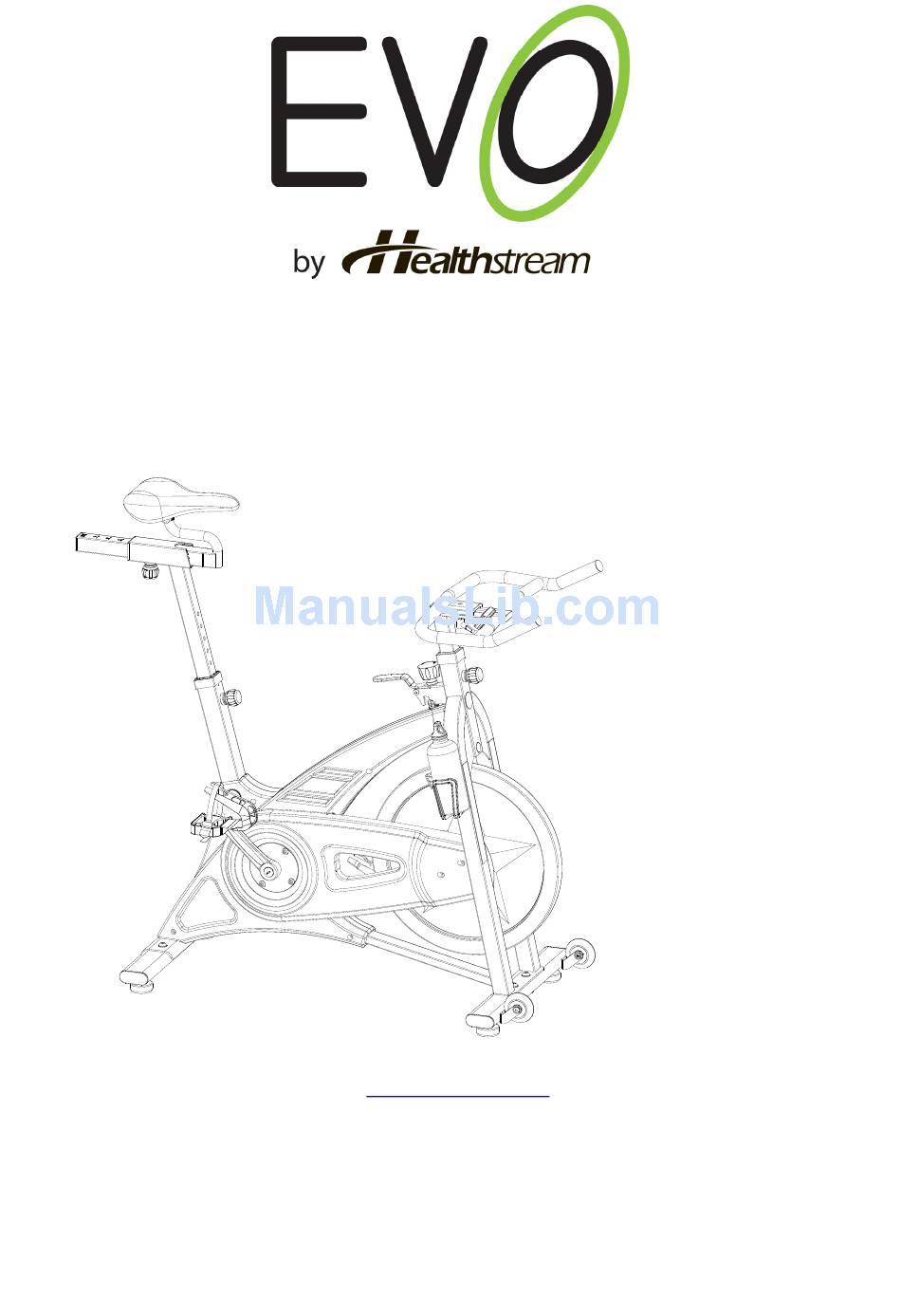

- Page 1 Spin Bike 300SB User Manual For all service enquiries go to www.evofitness.net.au or call toll free 1300796636...
- Page 2 CONTENTS SAFETY & MAINTENANCE INSTRUCTIONS……………….…….…….1 GENERAL KNOWLEDGE …………..………...……..………..…………..2 ASSEMBLY INSTRUCTIONS……..……………………….…….………….3-12...
- Page 3 SAFETY & MAINTENANCE INSTRUCTIONS 1. Once assembled fully, please ensure that all parts such as bolts, nuts and washers are positioned and tightened correctly. 2. Inspect the safety chain guard of the bike regularly to ensure that all screws and bolts are tight.
- Page 4 GENERAL KNOWLEDGE 1. This cycle should always be placed on a level surface for use. You may raise or lower the bike by adjusting the four leveling bolts (16). 2. Adjust Seat (22) to a suitable position by adjusting Seat Sliders (3) and Seat Post (2). And please adjust height of Handlebar (4) according to your body size.
- Page 5 Item Description Specification Main Frame Seat post 35*460*t2 Seat Slider 35*280*t2 Handlebar Post 35*280*2T Handlebar Ø28*998*t2 Tension Bracket Back Stabilizer Flat elliptical 30*70*2T*498L Front Stabilizer Flat elliptical 30*70*2T*498L Brake-handle Felt Pad Ø10xØ25xT5 Tension Knob M10*P1.25*60 Cover (right) Cover (Left) Belt Cover A Belt Cover B Leveler Plastic Sheath –...
- Page 6 Clamp Brake Holder T4.0*M10*P1.25 Flat washer Ø10.2-Ø25*T1.5 6001 black plastic shuck 6001 ABEC-5 6004 black plastic shuck 6004 ABEC-5 C shape axes snap spring Φ10 C shape axes snap spring Φ20 Spring nut Φ4.8*T0.8 Cross big flat head ST4.8*15 tapping screw Hexagon flange nut M12x1.0 M12 nut cap...
- Page 7 Small exploded diagram...
-
Page 9: Installation
Installation Step 1: Assemble base of bike Attach the front stabilizer (8) and rear stabilizer (7) to the main frame (1) with inner hexagon flat round head M10x25L (34), flat washer φ20*φ10*1.5T (33) (4 Pcs / item) using tools. Step 2: Assemble left and right pedals. Connect the right and left pedals (35) to their appropriate crank arms, then tighten using open spanner 15#. - Page 10 Step 3: Assemble the adjustable handlebar post Loosen the adjusting knob (23), and slide the handlebar post (4) into the handlebar post housing on the main frame, then tighten the adjusting knob (23). Step 4: Assemble the handlebar Assemble the handlebar (5) onto the handlebar post and tighten it with adjusting handle (77) and flat washer (76).
- Page 11 Step 5: Assemble the seat post Loosen the adjusting knob (23) and slide the seat post (2) to the seat post housing on the main frame, then tighten the adjusting knob (23). Step 6: Assemble the seat. Loosen the adjusting knob (23) and slide the seat slider (3) into the seat post (2), then tighten the adjusting knob (23) and fix the seat (22) to the seat slider (3).
- Page 12 Step 7: Assemble water bottle cage and water bottle Tighten the water bottle holder (72) to main frame (1) using enclosed tools and put in the water bottle (71). Step 8: Assemble the computer Tighten the computer sensor base (78) under the water bottle holder, facing the flywheel. Attach the computer shelf (75) and put in the computer (74).
- Page 13 Step 9: When installation is finished, please carefully re-tighten all the screws and nuts. Note Inspect all the nuts, nut caps and pedals regularly and inspect the equipment periodically. If you find any defective parts, replace them immediately. 2. Please pay attention to the friction brake pad (41) as over time this part may wear or become worn.
- Page 14 3. Please inspect the pedals before use to ensure they are tight. 4. Please adjust the hexagon nut by using the open spanner if the seat (22) is loose. 5. If you need to transport the bike, please grasp the handlebar (5) and roll forward or backwards using transport wheels (21)
-
Page 15: Console Instruction
Console instruction 1. MODE Speed, time, distance, temperature, pulse, average speed, max speed, total distance and scan. 2. SET a) RESTORATION: restoration of distance, time, average speed and max speed. b) Data adjustment Speed unit, wheel perimeter, time setup 1. Clear the data, KM/H will flash, enter speed unit. 2. - Page 16 Start the Spin Bike Computer After installation is complete of every mode according to the instructions and all data is set-up, then you can use the spin bike computer. 1. Before operation, clear all the previous data, this is when the degree is zero, press “SET” for two seconds, clear the data of “DST”, “RTM”, “AVS”, “RES”...
- Page 17 2. Press “MODE” to change the display, see diagram Q Diagram Q a) Top data is current speed: 20.2KM/H b) Bottom is riding speed: 5.6KM. 3. Press “MODE” key to change display, see diagram R. Picture R a) The top data is current speed b) Bottom data is riding time, if it exceeds six seconds with no signal, it will stop calculating the time.
- Page 18 5. Press “MODE” key to change display, see diagram T, Diagram T a) The top data is the current speed b) The bottom data is the temperature e.g.: 24 degrees. 6. Press “MODE” key to change the display, see diagram U, Diagram U a) Finger symbol shows current speed, AVS expresses average speed, e.g.
- Page 19 Common malfunction solutions Malfunction sign Reason Solution Computer can not receive Installation location is not Reinstall according information correct requirement. Sensor or computer battery Install battery correctly or Installation error replace with new battery Speed, distance display not Wheel perimeter Reset wheel perimeter correct incorrectly...
