Trojan Telecom NRX EVoIP 1 User Manual

Trojan telecom nrx evoip 1 user guide
Hide thumbs Also See for NRX EVoIP 1:
Table of Contents

Advertisement

Quick Links

Download this manual
D i t d o c u me n t wo r d t u a a n g e b o d e n d o o r T e l e c o mH u n t e r . D é z a k e l i j k e T e l e c o m we b s h o p .
T 0 8 8 7 4 6 3 4 4 4 | @ s a l e s @T e l e c o mH u n t e r . n l | www. T e l e c o mH u n t e r . n l
NRX EVoIP 1

USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRX EVoIP 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Trojan Telecom NRX EVoIP 1

Summary of Contents for Trojan Telecom NRX EVoIP 1

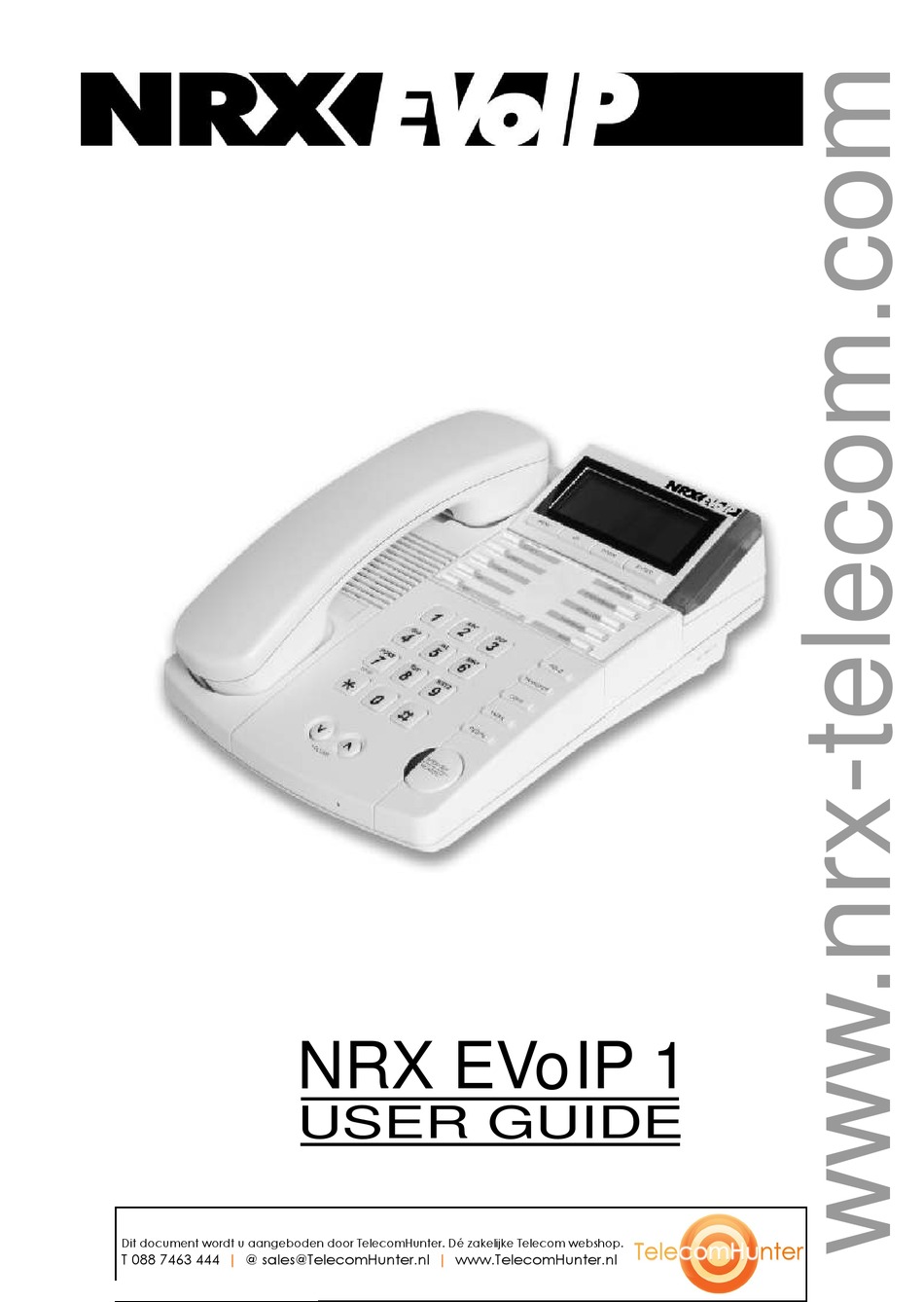

  • Page 1: User Guide

    NRX EVoIP 1 USER GUIDE D i t d o c u me n t wo r d t u a a n g e b o d e n d o o r T e l e c o mH u n t e r . D é z a k e l i j k e T e l e c o m we b s h o p .
  • Page 2 The layout of your NRX EVoIP 1 MENU ENTER DEL/MUTE PHONEBOOK CALL LOG FORWARD HOLD TRANSFER Tel No: CONF EXT: PQRS WXYZ VMAIL D i t d o c u me n t wo r d t u a a n g e b o d e n d o o r T e l e c o mH u n t e r . D é z a k e l i j k e T e l e c o m we b s h o p .

  • Page 3: Table Of Contents

    Call log. Figure A. ADSL Connections with NAT Router for NRX EVoIP 1 D i t d o c u me n t wo r d t u a a n g e b o d e n d o o r T e l e c o mH u n t e r . D é z a k e l i j k e T e l e c o m we b s h o p .

  • Page 4: Quick Start Guide

    Quick Start Guide Step 2: Configurations from Keypad Keypad Settings for Password and SIP Account: Press MENU , 7 , 4 and the LCD panel will show Password: Enter password (Default: admin) i.e. press 2 two times, 3 two times, 6 two times, 4 four times, 6 three times, then press ENTER.
  • Page 5 Quick Start Guide 6. You need to set up the following web configuration: Phone, Network WAN/LAN Settings, SIP Settings. Remember to submit, save and reboot for new configuration. 7. For WAN settings: DHCP: This is for Dynamic IP address and is commonly selected for WAN IP address when NAT is selected.

  • Page 6: Step 4: Making Point-To-Point Sip Calls

    Quick Start Guide SIP Account Number Selections: With 3 SIP account registered numbers, the NRX EVoIP telephone may receive all the incoming calls from the 3 SIP servers. Realm 1, 2, and 3 are used to configure the registered numbers for the 1st, 2nd, and 3rd SIP servers, respectively.

  • Page 7: Standard Compliances

    Standard Compliances • Dial Plan Settings • Speaker Phone, Voice Mail (VMS) for incoming IP calls • Call Forward/Transfer/Waiting/Hold, and 3-Way Conference Call features • Auto Configurations by TFTP, HTTP, or FTP server • Remote Firmware Upgraded with HTTP or TFTP server by Web PC •...

  • Page 8: Installations & Sip Configuration

    Installation & SIP Configuration 6. Installations & SIP Configurations Connect the NRX EVoIP RJ45 WAN port to NAT Router using a Category 5 LAN cable. Connect RJ45 LAN port to your PC using a Category 5 LAN cable. Connect RJ11 Headset port to a headset if available. Connect DC Power Adaptor.
  • Page 9 Configuration by Web Browser 8.2. Please enter the username and password into the blank fields. The default settings are: Username: admin Password: admin 8.3. Click the "Login" button to enter the System information page for web configuration. Whenever you change the setting in each Web page, you need to click the "Submit" button on the page, and then click "Save Change"...
  • Page 10 Configuration by Web Browser Configuration by Web Browser Speed Dial Phone List 8.11. You can add/delete Speed Dial number up to maximum 10 entries in Speed Dial Phone List. 8.12. If you need to add a phone number into the Speed Dial list, you need to enter the position, the name, and the URL.
  • Page 11 Configuration by Web Browser Phone Setting Call Forward Setting: 8.14. You can select the forward mode and enter the forward URL. All Forward: All incoming call will forward to the URL you choose. Busy Forward: The incoming call will forward to the URL when you are busy and on the phone.
  • Page 12 Configuration by Web Browser Volume Settings 8.17. You can setup the Handset Volume/Gain, Ringer Volume, and Speaker Volume/Gain in this page. Handset/Speaker Volume is to set the volume hearing from the handset/Speaker. Handset Gain is to set the volume send out from the handset. Speaker Gain is to set the volume send out from the microphone at the front of the NRX EVoIP.
  • Page 13 Configuration by Web Browser Dial Plan Settings 8.20. Dial plan and auto dial timer settings can be set on this page. The dial plan allows you to map the dialing into an easy-to-remember phone number system. The auto dial timer specifies the elapse time between the dialing digits.
  • Page 14 Configuration by Web Browser Call Waiting Setting: 8.25. When call waiting is set ON, you will hear an interrupt tone over the phone to remind that there is an incoming call from the third party. Soft Key Setting: 8.26. You can configure the VMS key (Voice Mail) setting to work with an IP PBX on this page. Configuration by Web Browser When registered with an IP PBX with an incoming voice message, the LED VMS will start flashing.
  • Page 15 Configuration by Web Browser Network 8.33.You can check the Network status, and configure the WAN, LAN, DDNS, and VLAN settings in this section. Network Status: 8.34. You can check and show the current Network setting in this page. Configuration by Web Browser WAN Settings: 8.35.
  • Page 16 Configuration by Web Browser LAN Settings: 8.41.The default IP address is 192.168.123.1 for the NRX EVoIP phone, with Net Mask 255.255.255.0., and DHCP Server enabled. The IP addresses for DHCP are from 150 to 200. 8.42.Connect your PC to the PC port, set your PC as DHCP Client mode, and then the PC will get an IP address from the NRX EVoIP automatically.
  • Page 17 Configuration by Web Browser VLAN Settings: 8.45. There are two parts for VLAN settings. One is to set for VoIP packets related to the NRX EVoIP, and the other is for the VLAN setting in the NAT Mode. 8.46.There are two kinds of destination packets coming to the WAN port, one is VoIP packets for NRX EVoIP, and the other will go through the WAN port to the LAN port.
  • Page 18 Configuration by Web Browser Virtual Server: 8.53. The Virtual Server IP and Port numbers can be configured in this page. Configuration by Web Browser PPTP Setting: 8.54. The PPTP Server can be set ON/OFF in this page. D i t d o c u me n t wo r d t u a a n g e b o d e n d o o r T e l e c o mH u n t e r . D é z a k e l i j k e T e l e c o m we b s h o p . T 0 8 8 7 4 6 3 4 4 4 | @ s a l e s @T e l e c o mH u n t e r .
  • Page 19 Configuration by Web Browser SIP Settings: Service Domain Settings 8.55.You can setup the Service Domain, Port Settings, Codec Settings, RTP Setting, RPort Setting and Other Settings for SIP Proxy Server registrations on this page. 8.56.You may register up to three SIP Servers for three Realms in the NRX EVoIP telephone. You can receive the incoming calls from all the three SIP Servers.
  • Page 20 Configuration by Web Browser Port Settings: 8.67.The SIP Port and RTP Port numbers are default at 5060 and 60000, respectively. The RTP port number must be even number. If you have more than one VoIP phones under the same NAT router, it is recommended that different RTP port numbers be assigned to each of IP Phones.
  • Page 21 Configuration by Web Browser Codec ID Settings: 8.69.You can set the Codec ID to meet the other device's requirement. When you finished the setting, please click the Submit button. Configuration by Web Browser DTMF Settings: 8.70. You can setup the options for DTMF function in this page. The options include RFC2833 (Outband DTMF), Inband DTMF, and Send DTMF SIP info.
  • Page 22 Configuration by Web Browser RPort Function: 8.71.You can enable/disable the RPort in this page. To change this setting, please follow your ISP information. When you finished the setting, please click the Submit button. Other Settings: 8.72.You can setup the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these settings please following your ISP information.
  • Page 23 Configuration by Web Browser NAT Transversal: STUN Setting 8.73.You can Enable/Disable and configure STUN Server IP address in this page. This function helps IP Phone working properly behind NAT. To change these settings please follow your ISP information. When you finished the setting, please click the Submit button. Configuration by Web Browser Auto Configuration Setting: 8.75.Auto Configuration function can be used to download a configuration file stored on a TFTP, HTTP,...
  • Page 24 Configuration by Web Browser MAC Clone Setting: 8.76.The MAC Clone function is to clone the MAC when only one MAC is available from ITSP. This is to share with the PC using the same MAC. When you finished settings, please click the Submit button.
  • Page 25 Configuration by Web Browser System Authority: 8.79. The user login name and password can be changed in this page. Save Change: 8.80.If you want to save the changes you have made for new setting in the NRX EVoIP Phone, You have to click the Save button. After you click the Save button, the phone will automatically restart and the new setting will implemented.
  • Page 26 Configuration by Web Browser Auto Update Settings: 8.85. The IP Phone provides two methods, HTTP or TFTP, to update new firmware as the following steps: Configuration by Web Browser Restore Default Settings: 8.86.You can restore the NRX EVoIP to factory default on this page.

  • Page 27: Menu Shortcuts

    Menu Shortcuts MENU shortcuts: To use the menu shortcuts press the 'MENU' button followed by the keypad numbers shown. 1. Phone Book 1.1 Search: Search Phone Book. 1.2 Add entry: Add new phone number to phone book. 1.3 Speed dial: Add speed dial phone number to speed dial list. 1.4 Erase all: Erase all phone number from Phone Book.
  • Page 28 Menu Shortcuts 3.7 Auto Dial: Auto Dial time selection from 3~9 seconds. 4. Network 4.1 WAN Setup: 4.1.1 IP Type: 4.1.1.1 Fixed IP client 4.1.1.2 DHCP client: 4.1.1.3 PPPoE client: 4.1.2 Fixed IP setting: 4.1.2.1 Host IP 4.1.2.2 Subnet mask 4.1.2.3 Gateway IP 4.1.3 PPPoE setting: 4.1.3.1 User name...

  • Page 29: Voip Application Examples

    Menu Shortcuts 5.3 RTP Setting: 5.3.1 Outband DTMF: Outband DTMF Enabled/Disabled. 5.3.2 Duplicate RTP 5.3.2.1 No duplicate: No resend voice packets. 5.3.2.2 One duplicate: Resend voice packets once. 5.3.2.3 Two duplicate: Resend voice packets twice. 5.4 RPort Setting: RPort Enabled/Disabled. 5.5 Hold by RFC: Hold by RFC3261 Enabled/Disabled.
  • Page 30 Voip Application Examples B. ADSL Connections with NAT Router for NRX EVoIP Example 1: SIP-to-SIP Calling/Answering Application: The SIP-to-SIP calling works when both calling and answering parties are registered to SIP server with given registered phone numbers. The ADSL connections can be as in either Diagrams A or B. Both parties are registered to SIP server under NAT router.

  • Page 31: Voip Application Examples

    Voip Application Examples 2. Select "ON" in "STUN setting" page, if Outbound Proxy is NOT available. 3. Upon successful SIP registration, the LCD will show registered <phone number>. Calling: 4. Press Speakerphone key, and you should hear a dial tone. 5.

  • Page 32: Trouble Shooting For Web Configurations

    Voip Application Examples Example 5: 3-Way Conference Call, Call Transfer, Call Waiting, Hold Application: The Call Transfer and 3-Way Conference Call applications are for calls among Parties A, B, and C. Three parties are registered to SIP server with either fixed real IP or private IP. There are two kinds of call transfer;...

  • Page 33: Trouble Shooting

    Trouble Shooting 11.3. CONFIGURE PC'S IP SETTINGS FOR EMBEDDED NAT FUNCTION? If you don't have a router to connect both your PC and NRX EVoIP for sharing the only one IP address from ADSL/Cable modem, you should enable the embedded NAT function inside the NRX EVoIP phone. You need to change your PC's IP settings to recognize the NRX EVoIP as the default gateway.

  • Page 34: Warranty

    1) Where we find a genuine warranty failure, Trojan Telecom will replace the faulty instrument with a one-for-one replacement. 2) It is the responsibility of the user to return the faulty telephone to Trojan Telecom. We ask you to cover this cost and we will return your replacement telephone at our expense.
  • Page 35 Ist Floor Amphenol Complex Thanet Way Whitstable Kent CT5 3JF ENGLAND Tel: (+44) (0)1227 275357 Fax: (+44) (0)1227 272932 e-mail: info@trojantel.com D i t d o c u me n t wo r d t u a a n g e b o d e n d o o r T e l e c o mH u n t e r . D é z a k e l i j k e T e l e c o m we b s h o p . REF: NRXEVO350140607 T 0 8 8 7 4 6 3 4 4 4 | @ s a l e s @T e l e c o mH u n t e r .
