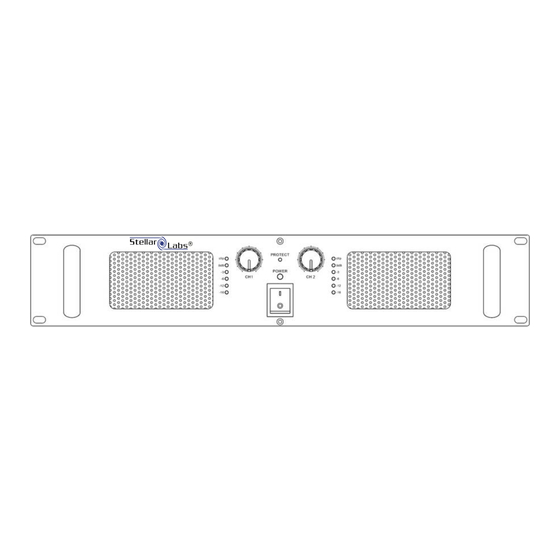

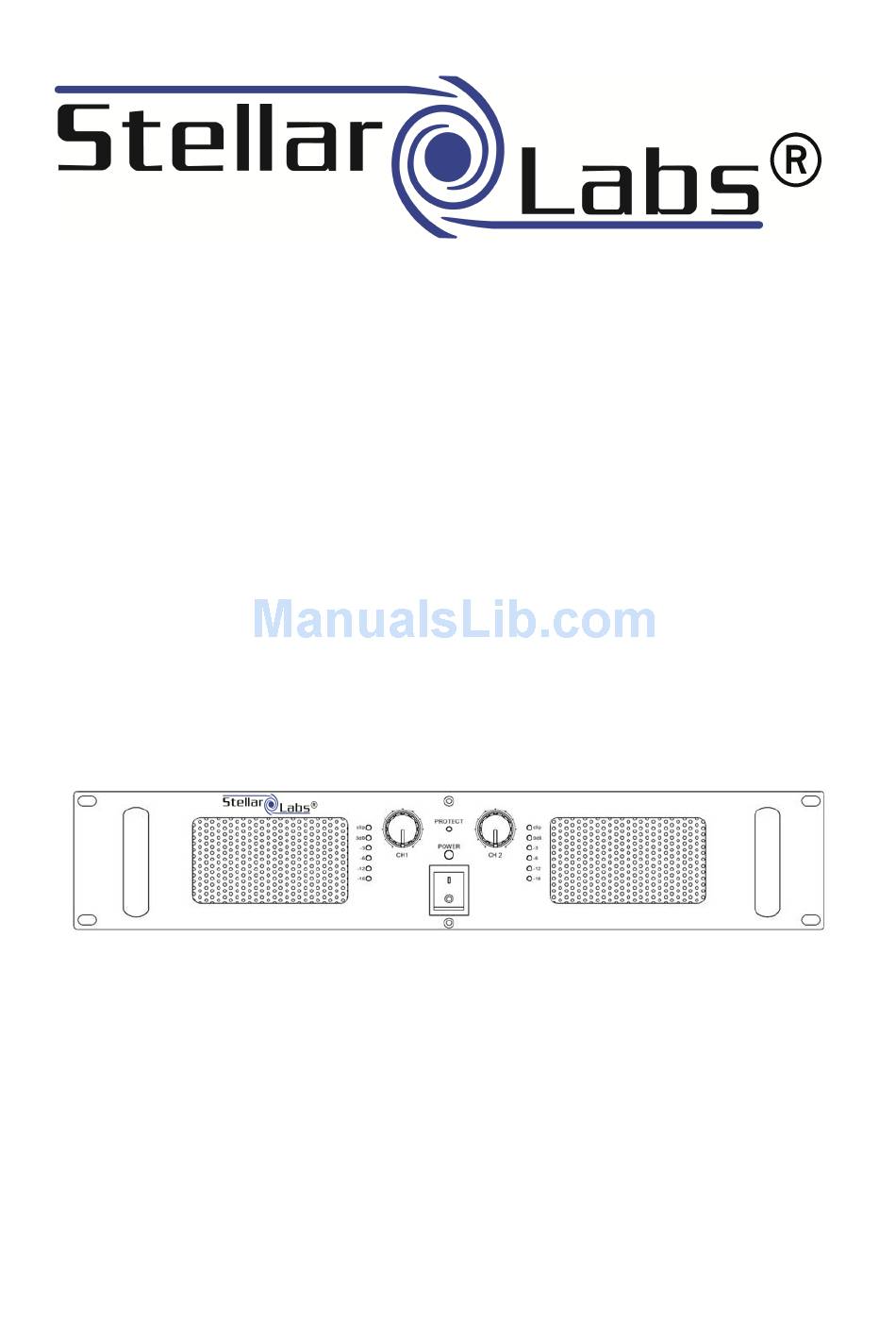

- Page 1 Stereo Power Amplifiers Models: PLA300, PLA500 & PLA900 www.mcmelectronics.com...
-
Page 2: Safety Information
Safety Information The lightning bolt To reduce the risk of electric The exclamation point within a triangle is shock, do not remove cover within a triangle is intended to alert the of this device. There are no intended to alert the user to the presence user serviceable parts user to important... -
Page 3: Specifications
Please take the time to read this document completely prior to installation of this product. Should you have questions regarding installation or operation of this unit, please contact the MCM Electronics Technical Support Department. Features ... -
Page 4: Connections & Controls
Connections / Controls Channel 2 speaker output via locking speaker socket. (Use terminals 1+1- only, minimum speaker impedance 4Ω) Signal input for Channel 2, via unbalanced 6.35mm (1/4”) jack. Air ventilation port – DO NOT BLOCK. Channel 1 speaker output via locking speaker socket. (Use terminals 1+1- for Channel 1, and terminals 2+2- for Channel 2, minimum speaker impedance 4Ω... - Page 5 Choose speaker cables carefully – please use cables with cores of minimum 1.5mm and under 10m in length to prevent power loss. Check all cables (speaker, signal and mains) for damage, loose terminals or potential short circuits on regular occasions. ...
- Page 6 Stellar Labs and its affiliate companies are not responsible for any damages related to the use of this item. For warranty service or replacement, please contact your Stellar Labs dealer. For questions or specific information regarding warranty replacement or repair, contact: Stellar Labs Distributed exclusively by: MCM Electronics www.mcmelectronics.com...
