stellar labs 30-2471 User Manual

User Manual
CATV / Antenna Drop Amplifier 1×4 Splitter with Passive Return
Model #30-2471

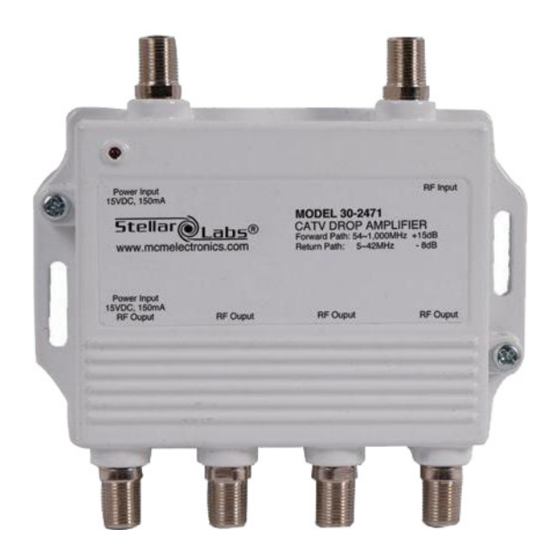

CATV Drop Amplifier
Overview:
This cable drop amplifier is designed for sending
CATV signals to up to four television sets, and has
an internal 15dB signal amplifier to compensate
for losses caused by the split as well as the
additional cable length.
It also provides a passive return path, ensuring
compatibility with current digital and interactive
and broadband cable systems.
Power is supplied either directly through the
power port (#1), via the supplied AC adapter or
may be inserted into the existing signal cable
connected to one of the output ports (#3) as
shown.
While designed for CATV use, this device is
perfectly suitable for use with standard TV
antennas. The housing and "F" ports are all sealed
for permanent installation outdoors.
Note the included AC adaptor must be located
inside.

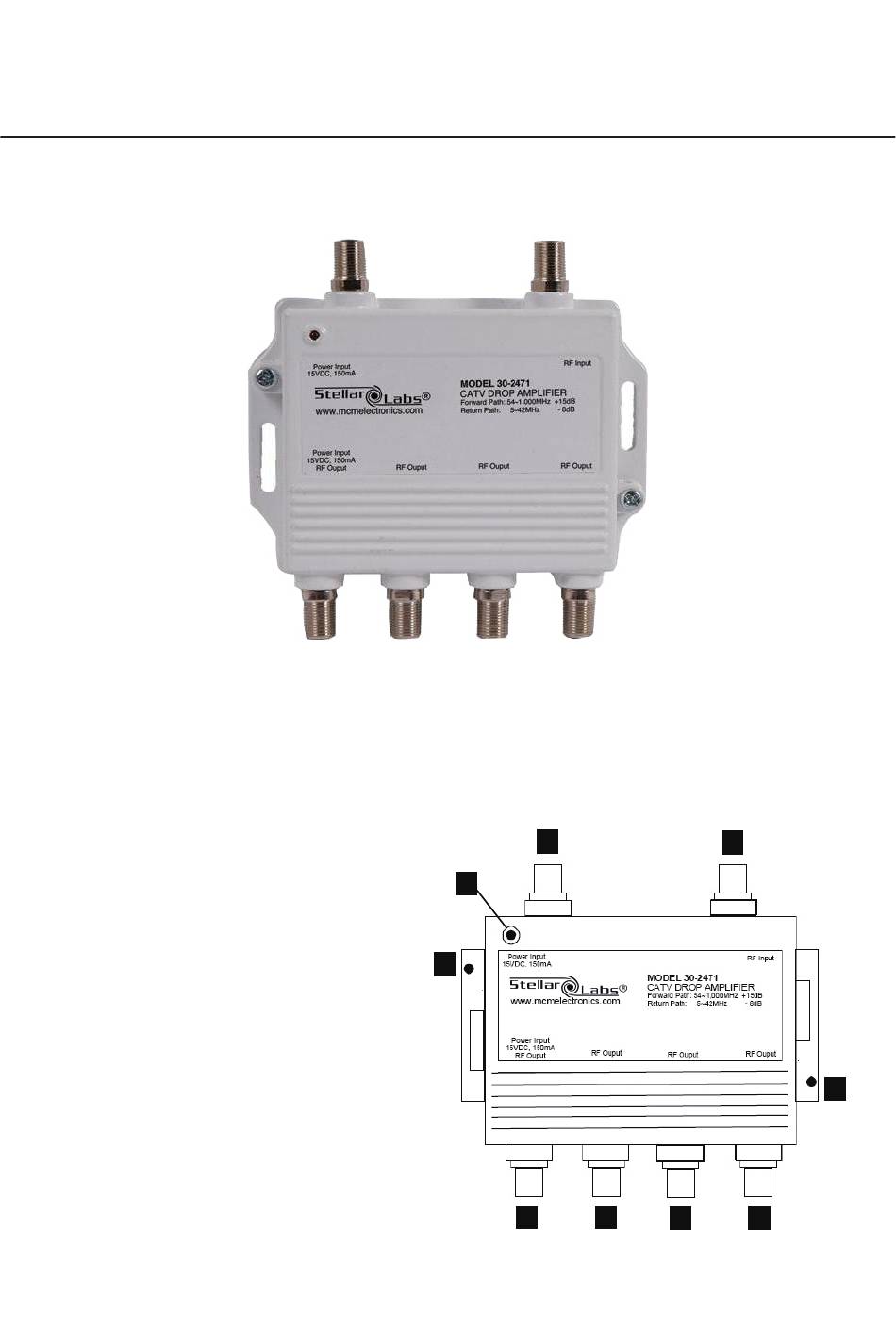

Connections/Indicators:
#1 Power input - Accepts 15VDC from supplied
AC adapter. An "F" jumper is provided for short
distances, the maximum distance for this cable
is 200'
#2 RF input - Accepts signal from cable company
or external antenna.
Part Number: 30-2471
6
5
Page <1>
Specifications:
Maximum signal gain:
Effective bandwidth:
1 1
3
4 4
+15dB forward, -8dB return
54MHz ~ 1,000MHz (forward path)
2
5
4
09/01/19 V1.0
