Using The Ac Adapter (Optional) - Pentax K-30 Operating Manual

48

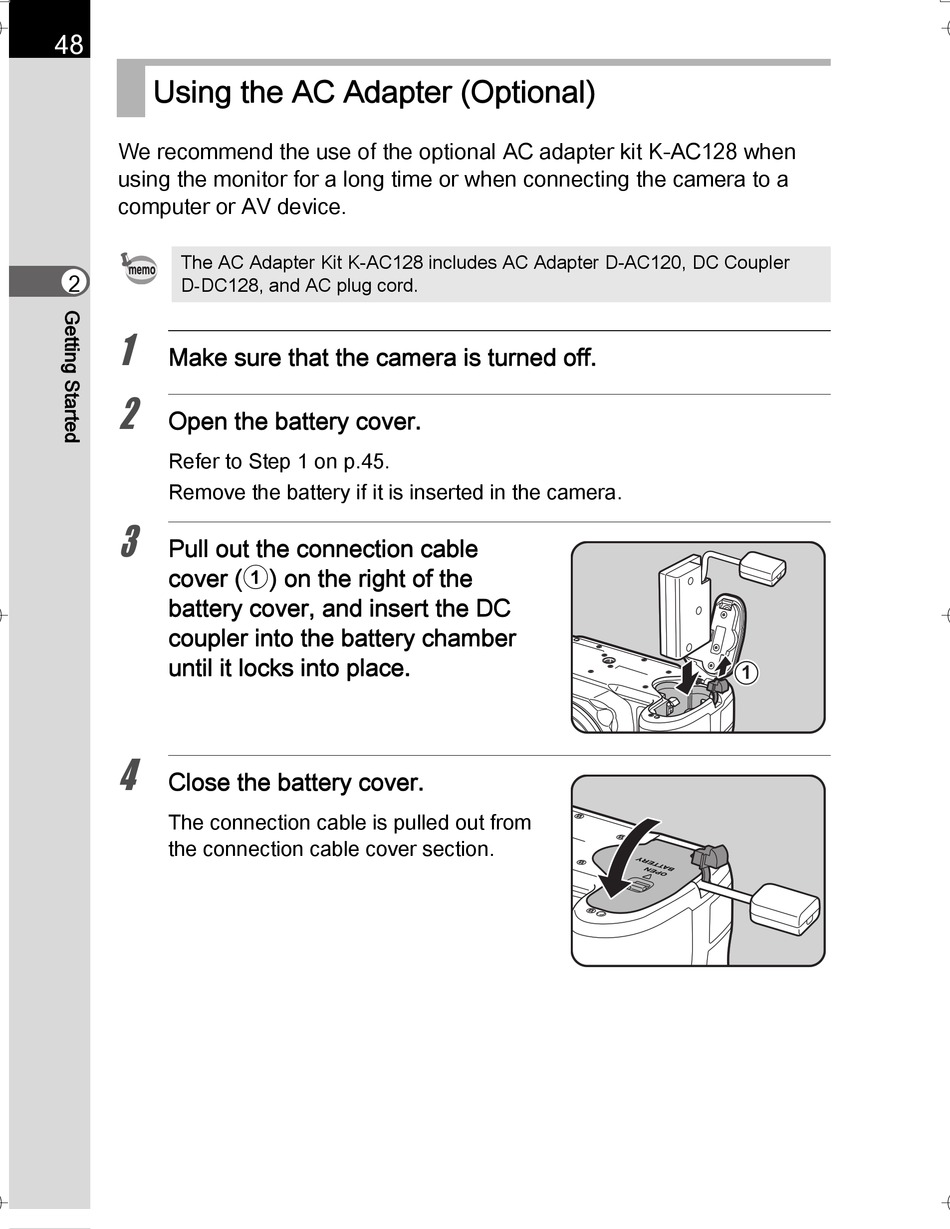

Using the AC Adapter (Optional)

We recommend the use of the optional AC adapter kit K-AC128 when
using the monitor for a long time or when connecting the camera to a
computer or AV device.
The AC Adapter Kit K-AC128 includes AC Adapter D-AC120, DC Coupler
2
D-DC128, and AC plug cord.
1
Make sure that the camera is turned off.
2
Open the battery cover.
Refer to Step 1 on p.45.
Remove the battery if it is inserted in the camera.
3
Pull out the connection cable
cover (1) on the right of the
battery cover, and insert the DC
coupler into the battery chamber
until it locks into place.
4
Close the battery cover.
The connection cable is pulled out from
the connection cable cover section.
1
