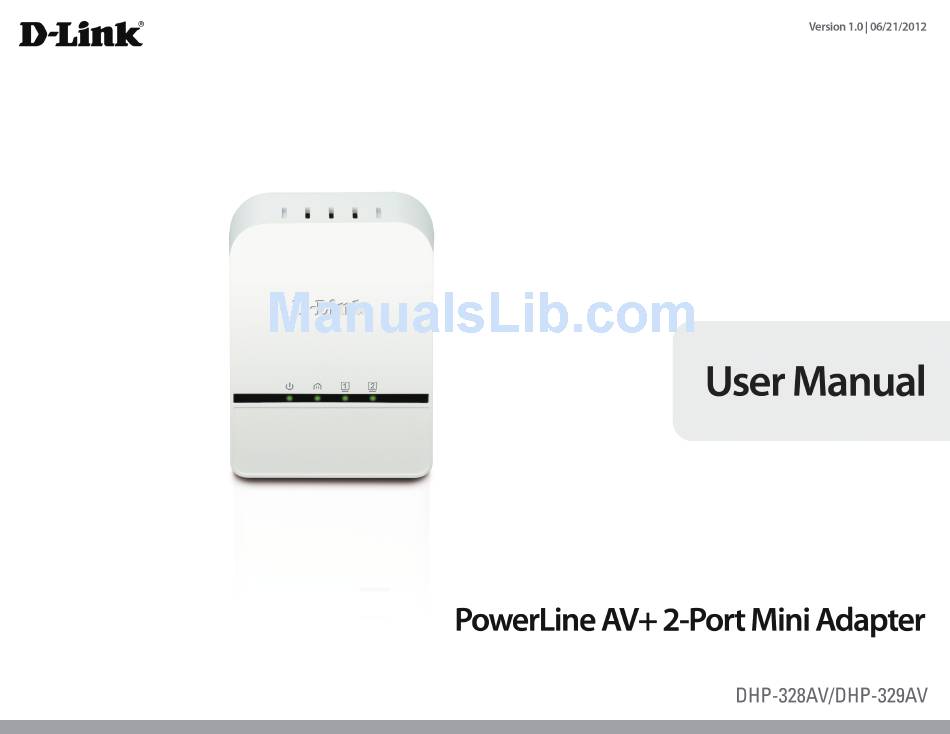

D-Link DHP-328AV User Manual

Powerline av+ 2-port mini adapter
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Also See for D-Link DHP-328AV

  Related Manuals for D-Link DHP-328AV

  Summary of Contents for D-Link DHP-328AV

  • Page 2: Preface

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description July 07, 2012 • Initial release for hardware revision A1...
  • Page 3: Table Of Contents

    System Requirements ..............4 Introduction ................... 5 Features .................... 5 Hardware Overview ..............6 LEDs ................... 6 Connection ................7 Hardware Installation ...............8 Push Button Security ..............9 Powerline Installation Considerations ........12 Troubleshooting ..............14 Technical Specifications ............15 D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 4: Product Overview

    • D-Link DHP-328AV PowerLine AV+ 2-port Mini Adapter • Ethernet Cable • CD-ROM with User Manual • Quick Install Guide DHP-329AV • D-Link DHP-328AV PowerLine AV+ 2-port Mini Adapter X2 • Ethernet Cable X2 • CD-ROM with User Manual • Quick Install Guide System Requirements •...
  • Page 5: Introduction

    Section 1 - Product Overview Introduction D-Link announces a fast, 500Mbps* PowerLine AV+ 2-port Mini Adapter which allows you to connect your home computers, networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines - and share Internet connections, printers, transfer files, play games, and more.
  • Page 6: Hardware Overview

    • Off. The device is not receiving electrical power. Ethernet LED • Solid. The Ethernet port is linked. • Off. There is no Ethernet connection. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 7: Connection

    Simple Connect Button Press to secure your network or reset your device back to the factory default settings. Refer to page 9 for more information. Ethernet Port Connect Ethernet cable to your PC or Ethernet device. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 8: Hardware Installation

    Power Plug in the DHP-328AV into an AC wall outlet or power strip. Note: Power source is confirmed when the Power LED on the DHP-328AV is illuminated. Connect the Ethernet Cable Connect the included Ethernet cable to the network cable...
  • Page 9: Push Button Security

    Press Simple connect button of the first adapter for no more than three seconds. The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption key that each PowerLine AV+ 2-port Mini Adapter will use. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 10 Note: Both Simple connect buttons must be pressed within two minutes. After above network security setup steps, your Powerline network will be securely configured with the same network encryption key. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 11 Section 2 - Installation ROOM C DHP-328AV ROOM A ROOM B ROOM C DHP-328AV DHP-328AV DHP-328AV Internet Router EXISTED PLC NETWORK D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 12: Powerline Installation Considerations

    5. To help prevent against electrical shock, be sure to plug the power cables into properly grounded electrical outlets. 6. The Powerline device is equipped with a three-pronged plug to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from the cable. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 13 7. Do not cover or block the vents on the device. 8. Make sure that the device has adequate room for ventilation. 9. Avoid placing the device near a heater or radiator. 10. The device should be located only where sufficient ventilation can be ensured. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 14: Troubleshooting

    • I’m having a lot of problems configuring my network: If you are having many problems configuring the network with two or more PowerLine AV+ 2-port Mini Adapter, please make a reset to all of the Network adapters and start configuring the adapters again. D-Link DHP-328AV/DHP-329AV User Manual...
  • Page 15: Technical Specifications

    Humidity • Operation: 10% ~ 90% RH • Compatible with IEEE1901 • Storage: 5% ~ 90% RH • Homeplug AV • CE Class B / FCC Safety • CE LVD / UL Encryption • 128-bit AES D-Link DHP-328AV/DHP-329AV User Manual...

This manual is also suitable for:

Dhp-329av
