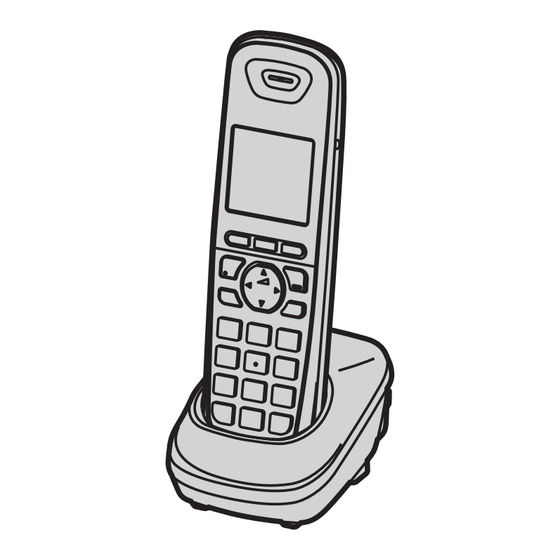

Installation Manual Additional Digital Cordless Handset KX-TGA651 Model No. Thank you for purchasing a Panasonic product. This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG4011/KX-TG4021/KX-TG4031/KX-TG4051/ KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6541/ KX-TG6581/KX-TG7531 You must register this handset with your base unit before it can be used.
Note: L Use only the supplied Panasonic AC adaptor PQLV219. L The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) L Make sure that the wall is strong enough to support the weight of the unit.
Panasonic Ni-MH battery performance (supplied batteries) Operation Operating time In continuous use 13 hours max. (If Eco mode is on.) Not in use (standby) 11 days max. (If Eco mode is on.) Controls A Charge indicator Ringer indicator Message indicator...
Original handset (printed key name) KX-TGA651 soft keys {OK} {SELECT}{SAVE} L Some KX-TGA651 soft key names are different to the button names described in your base unit’s operating instructions. Registering a handset to a base unit Base unit: N KX-TG4011/KX-TG6511 series Press and hold {LOCATOR} for about 5 seconds.
Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each. Example: For 9:30, enter {0}{9}{3}{0}. {AM/PM}: Select “AM” or “PM”. i {SAVE} i {OFF} Belt clip N To attach N To remove For assistance, please visit http://www.panasonic.com/help...
Page 7
For KX-TG4031/KX-TG4051/KX-TG7531 series users There are some differences in the specification of your original handset and the KX-TGA651. The feature differences are described in the chart below. Main feature differences KX-TG4031/ KX-TG7531 Feature KX-TGA651 KX-TG4051 series handset series handset Display size 1.8 inches...
Page 8
For KX-TG4011/KX-TG4021 series users There are some differences in the specification of your original handset and the KX-TGA651. The feature differences are described in the following chart. Main feature differences KX-TG4011/ Feature KX-TGA651 KX-TG4021 Page series handset Display size 1.8 inches 1.4 inches...
Page 9
Finding and calling a phonebook entry: Searching by group {C} i {GROUP} {V}/{^}: Select the group you want to search. i {SELECT} L If you select “All groups”, the unit ends the group search. {V}/{^}: Select the desired entry. i {C} For assistance, please visit http://www.panasonic.com/help...
Page 10
{C} i {MENU} i {V}/{^}: “Erase all” i {SELECT} {V}/{^}: “Yes” i {SELECT} {V}/{^}: “Yes” i {SELECT} i {OFF} Chain dial During an outside call, press {MENU}. {V}/{^}: “Phonebook” i {SELECT} {V}/{^}: Select the desired entry. i {CALL} For assistance, please visit http://www.panasonic.com/help...
Page 11
Important: L If you stored the voice mail access number (page 14), the message indicator also flashes for newly recorded voice mail messages. {MENU} i {#}{3}{4}{0} {V}/{^}: Select the desired setting. i {SAVE} i {OFF} For assistance, please visit http://www.panasonic.com/help...
Page 12
To complete the transfer: Press {OFF}. To establish a conference call: Press {CONF}. L To leave the conference, press {OFF}. L To put the outside call on hold, press {HOLD}. To resume the conference, press {CONF}. For assistance, please visit http://www.panasonic.com/help...
Page 13
Deregistering a handset {MENU} i {#}{1}{3}{1} {V}/{^}: Select the handset you want to cancel. i {SELECT} {V}/{^}: “Yes” i {SELECT} i {OFF} Features only available for KX-TGA651 Alarm An alarm sounds at the set time for 3 minutes once or daily. Important: L Set the date and time beforehand (page 6).
Page 14
Soon after you hang up a call or after the phone stops ringing, your unit checks the phone line to see if new voice mail messages have been recorded. The default setting is “On”. Turn this feature off when: – You do not subscribe to voice mail service. For assistance, please visit http://www.panasonic.com/help...
Page 15
“Caller ID auto”. To turn this feature off, select “Manual”. The default setting is “Caller ID auto”. To use this feature, set the date and time first (page 6). {MENU} i {#}{2}{2}{6} {V}/{^}: Select the desired setting. i {SAVE} i {OFF} For assistance, please visit http://www.panasonic.com/help...
L Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211- PANA (1-800-211-7262).
L This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product. For assistance, please visit http://www.panasonic.com/help...
– Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. For assistance, please visit http://www.panasonic.com/help...
Page 19
à la législation locale. LEste producto está diseñado para usarse en los Estados Unidos de América. La venta o el empleo de este producto en ciertos países puede constituir violación de la legislación local. For assistance, please visit http://www.panasonic.com/help...
