Assembly - Jack LaLanne's Power Juicer Operating Manual

ASSEMBLY

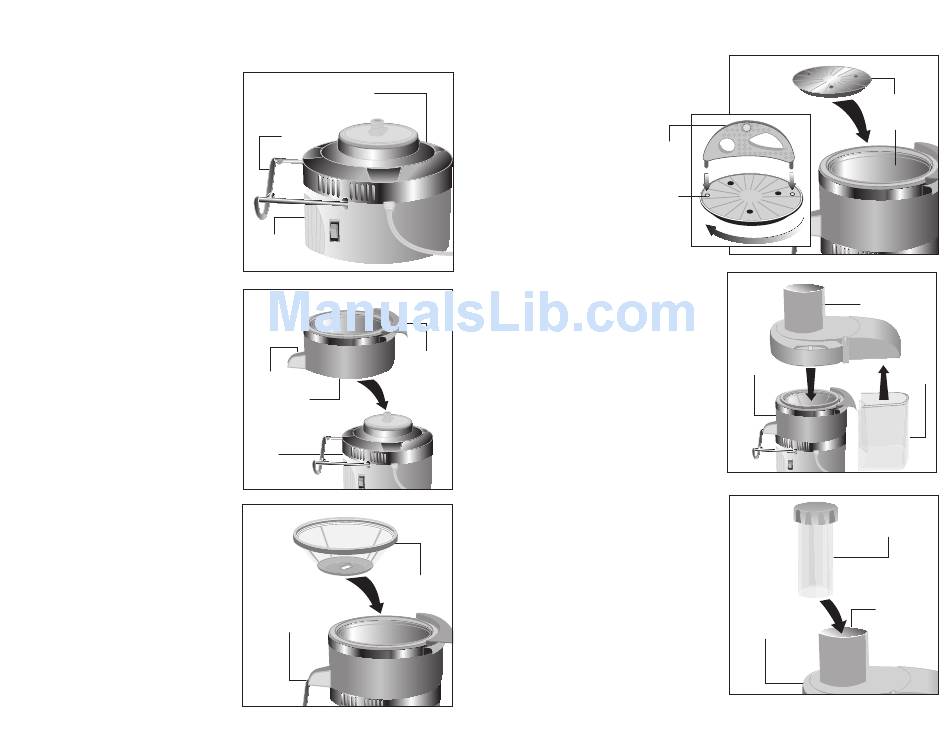

Assemble as shown
STEP 1:
Place base on a dry flat surface with
locking bar in down position as shown.
In front of the machine (spout side).
STEP 2:
Place receptacle on the base,
with juicer spout facing direction
of locking bar. Settle receptacle
into alignment.
STEP 3:
Place filter inside receptacle,
matching the opening on
its bottom to the screw peg
connected to the base.
6
1
Base
Locking
Bar
Front of
Machine
(Spout side)
2
Lip
Juice Spout
Receptacle
Base
3
Filter
Receptacle
ASSEMBLY
STEP 4:
Place blade inside filter, centered
over screw peg. Using orange
crescent tool, place its pegs
into the holes in the blade
and turn clockwise
Crescent
until tightened.
Tool
IMPORTANT: Do not
over tighten as the
Blade
screw peg will break.
Holes
Remove crescent tool
and set aside.
CAUTION: Do not
leave tool inside juicer.
STEP 5:
Place lid with built-in pulp guard attached
on top of receptacle, making certain it is
snugly aligned with the pulp guard facing
in the opposite direction of the juice spout.
Lock lid into place by lifting locking bar
up until it clicks into grooves located
on both sides of the lid. Make sure
locking bar is in the full upright,
locked position.
IMPORTANT: The unit will not start
until this bar is properly locked in place.
STEP 6:
Insert pusher into chute.
Always use pusher to feed fruits
and vegetables into unit. Push gently,
never force. The blade will do the work.
(CONT.)
4
Blade
Filter
5
Lid with built-in
Pulp guard
Pulp
Receptacle
Collector
6
Pusher
Chute
Lid with built-in
Pulp Guard
7
