First Choice For Security Professionals

Quick Start Guide

NVR

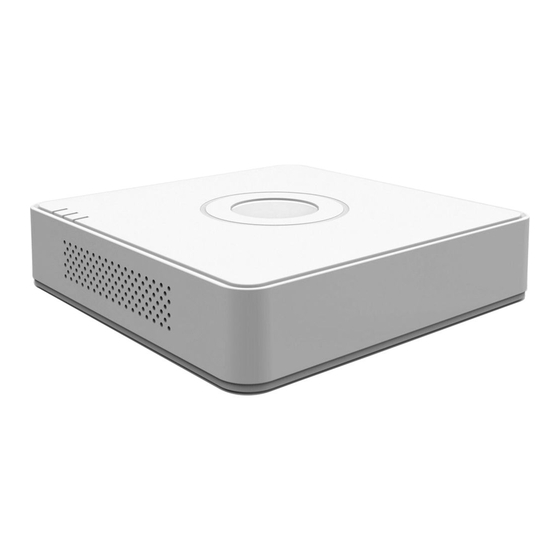

DS-7104NI-SL/W NVR
NOTE: For more detailed information, refer to the User's Manual on the
CD-ROM. You must use your PC or MAC to access the files.
www.hikvision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-7104NI-SL/W and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-7104NI-SL/W

Summary of Contents for HIKVISION DS-7104NI-SL/W

  • Page 1: Quick Start Guide

    First Choice For Security Professionals Quick Start Guide DS-7104NI-SL/W NVR NOTE: For more detailed information, refer to the User’s Manual on the CD-ROM. You must use your PC or MAC to access the files. www.hikvision.com...

  • Page 2: Quick Start

    First Choice For Security Professionals Quick Start 1. Overview 2. Connection 3. Startup/Shutdown 4. Formatting a Disk 5. Setting Date & Time 6. Network Connection 7. Wi-Fi configuration 8. Adding IP Cameras 9. Recording 10. Playback 11. Backup NOTE: For more detailed information, refer to the User’s Manual on the CD-ROM.

  • Page 3: Network Video Recorder

    Network Video Recorder 1. Overview BEFORE STARTING: Connect VGA or HDMI monitor and mouse (mouse supplied). Check that your package includes the following: Mouse Power Adaptor Power Cord Screws Hard Drive (PreInstalled) HDD Cables Quick Start Guide Manual/Software CD Top Panel Description: Status Indicators: 1.

  • Page 4: Startup And Shutdown

    The Power indicator LED on the top panel will turn red. 2. Connect a VGA or HDMI monitor and mouse into the NVR. NOTE: Monitor and mouse need to be plugged in before starting. NOTE: Default password is 12345 www.hikvision.com...

  • Page 5: Formatting A Disk

    First Choice For Security Professionals 3. Startup and Shutdown (cont.) To Shut down Your DVR: 1. Enter the Shutdown menu by going to Main Menu > Maintenance. 2. Click the Shutdown button to access the Shutdown menu. 3. Select the Shutdown button.

  • Page 6: Setting Date And Time

    Network Video Recorder 4. Formatting a Disk (cont.) 3. Click the Init button. 4. A confirmation message will appear on the screen. Click the OK button to continue the formatting process. 5. The status column will show the Initialization progress. After the disk has been formatted, the status of the disk will change to Normal.

  • Page 7: Network Connection

    Network Connection Using Web Browsers All Hikvision products use the default IP address of 192.0.0.64 1. Connect a CAT5 or CAT6 cable from the NVR to a PC or Laptop computer. Note your laptop or PC computers existing address, such as: 192.0.0.62...
  • Page 8 Network Video Recorder 7. Wi-Fi Configuration Wi-Fi Configuration 1. Enter the WiFi Settings interface. Main Menu > System Configuration> Network > WIFI 2. Configure the following parameters:  SSID: SSID is short for Service Set Identifier, and it is displayed as the WIFI name when you search the available WIFI hotspots via other devices with WLAN function.

  • Page 9: Adding Ip Cameras

    First Choice For Security Professionals 8. Adding IP Cameras Adding IP Cameras Quick add： 1. Click the button in Live Feed menu to pop up the Add IP Camera interface. 2. You can edit the IP address, protocol, management port, and other information of the IP camera to be added.
  • Page 10 7. Select the Apply button to save the schedule settings and click to return to the previous menu. Clicking without clicking Apply will go out of the menu without saving settings. NOTE: Event recordings are recordings that are triggered from motion detection and/or from an external alarm. www.hikvision.com...
  • Page 11 First Choice For Security Professionals 10. Playback Playback from Search: 1. Enter the Playback menu by going to Main Menu > Playback. 2. Select the camera and date you want to search. 3. The search results will be shown on the timeline with blue bars designating recorded files.
  • Page 12 Network Video Recorder 11. Backup Backup Recorded Files (Export): 1. Enter the File Management menu by going to Main Menu > File Management 2. Place a check next to the cameras you want to search files for backup. Select the recording type, date and time range you want to backup.

This manual is also suitable for:

Ds-7104ni-slDs-7104ni-w
