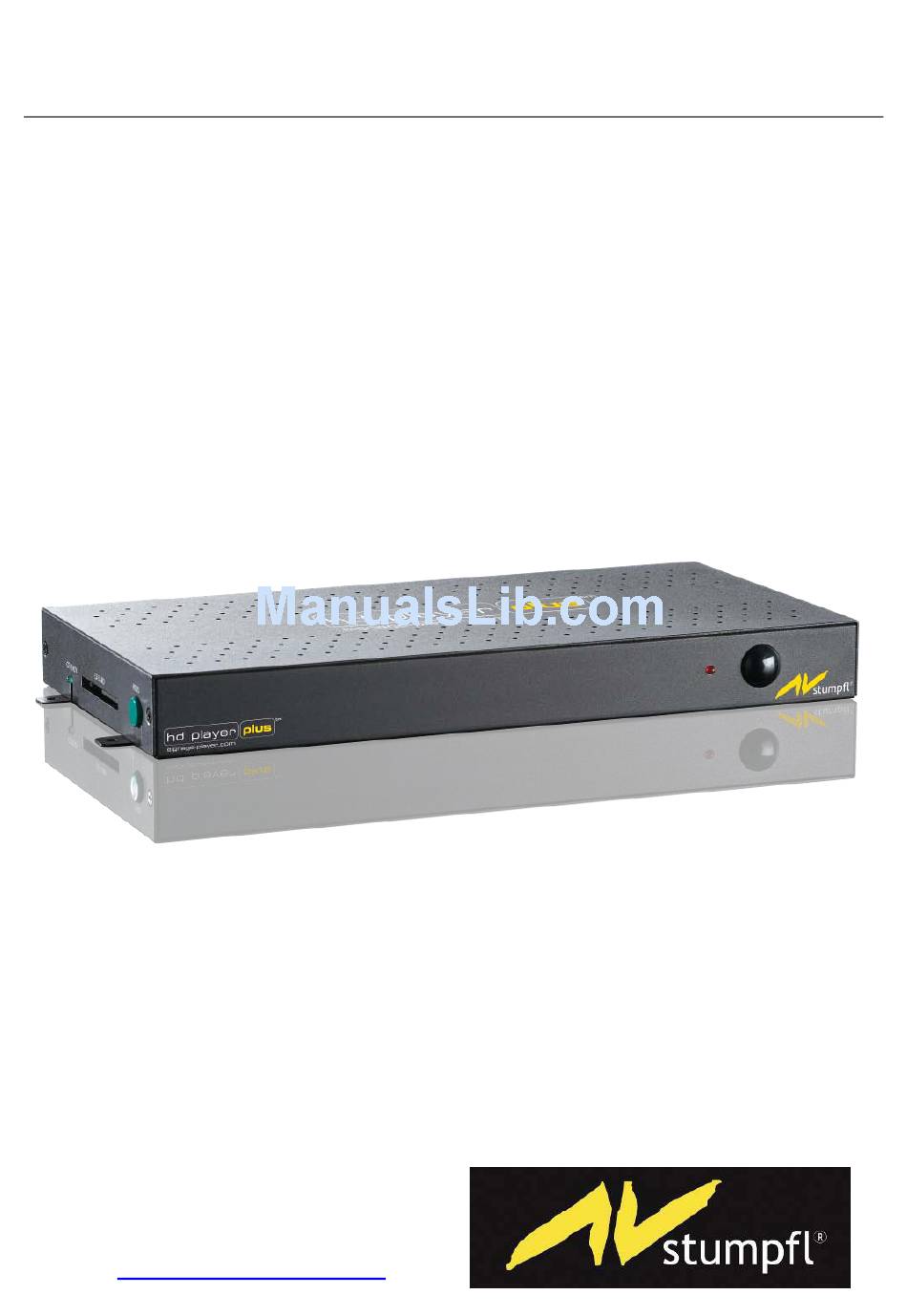

Page 1: User Manual
User Manual HD Player Plus AV Stumpfl GmbH Mitterweg 46 A-4702 Wallern Tel.: +43-7249-42811 Fax: +43-7249-428114 E-Mail: AVstumpfl@AVstumpfl.com Internet: http://www.AVstumpfl.com... - Page 2 FCC Notices It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
10. Schedule Function……………..…..……………..………….. 36 10.1 Install the Schedule Software…….……..……………….. 36 10.2 Set Up the Schedule Software…..………..…….……….. 36 10.3 Apply the Schedule on the HD Player plus.……..… 41 11. Optional Auxiliary Equipment……..……..………………..….. 42 11.1 Play-Button Box………………..………………………….. 42 11.2 IR Cable……………………………..……….…………….. 42 11.3 PIR Sensor………………………..………..…………….. -
Page 4: Package Contents
Schedule Software 2. INTRODUCTION The HD Player plus is a digital media player that plays media files (supports MPEG-2 AND HD WMV9 format) from CF memory card without a computer. The HD Player plus supports High Definition movie hardware decode acceleration, presents for you the smoother and clearer picture, it supports high resolution video output such as 1080P / 1080i / 720P for movie theater quality video on a big screen. - Page 5 Supports HTTP command function. Exports the Configuration Value: You can export the configuration value to the CF card. The configuration can be modified on your PC, and can be applied to the HD Player plus or others. Compatible with Windows Media Player 11: Play media files stored in a network computer.
-
Page 6: Hardware Overview
Video Connector: Connects to device that support Video input. (HDTV、projector) “CF READY” LED: Steady green confirms that the CF card is inserted correctly. CF Card Socket: For CF memory card. “RESET” Button: To restart the HD Player plus. -
Page 7: Remote Control
5. REMOTE CONTROL Power on/ off Select the output mode Numeric Key Delete last entry Select a function or to play the selected file Open the setup menu Mute sound OSD display function on/ off Auto-play function on/ off Mute sound Volume up/ down Move the cursor Confirm the selection/ entry... -
Page 8: Start The Hd Player Plus
Status 1: If the “AUTOPLAY (Movie, Picture or MultiLayer)” function is enabled and there are movie or picture files in the CF card, the HD Player plus will auto play movie or picture files on the CF card after power on. -
Page 9: Setting Up
IP Assigned by DHCP: If you have a DHCP-enabled router, please select “On”, and then the router will automatically assigns an IP address to the HD Player plus. If you don’t have a DHCP –enabled router, select “Off” and type the network information in “Assign IP Address”. - Page 10 7.1 NETWORK SETUP (continued) Assign IP Address: If the HD Player plus is connected to a network without a DHCP server or you want to use Local FTP Server function, enter the fixed IP address, Mask, Gateway and DNS for the HD Player plus.
-
Page 11: Ftp Setup
Local FTP Server: Turn on/ off the HD Player plus server. (If you use the HD Player plus server, please disable the DHCP function and input a fixed IP address, Mask, Gateway and DNS of the HD Player plus) ... - Page 12 NOTE: GMT and applied regions Time Zone Region Time Zone Region (GMT-12:00) Eniwetok, Quazalen (GMT+02:00) Helsinki, Riga, Tallinn (GMT-11:00) Midway, Ireland, Samoa (GMT+03:00) Nairobi Moscow, Saint Petersburg, (GMT-10:00) Hawaii (GMT+03:00) Volgograd (GMT-09:00) Alaska (GMT+03:00) Baghdad Pacific GMT (U.S. & Canada); (GMT-08:00) (GMT+03:00) Kuwait, Raid...
-
Page 13: Video Setup
Local HTTP Server: Enable/ Disable the HTTP command function. Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the HD Player plus. (The Default Port: 80, User ID: root, Password: admin) NOTE: Press the “SETUP” button on the remote control to save the settings, and it will auto exit the settings screen, then restart the HD Player plus. -
Page 14: Other Setup
SlideShow Interval Times: Set the time each photo is shown to 10, 15, 30 or 60 seconds. Lock Remote Controller: Enable/ disable the auto key lock function. (The HD Player plus will auto lock when there is no further input for 1 minute.) ... - Page 15 HD Player plus, the HD Player plus will apply the new settings automatically. Play Button: Only for used with play buttons. The HD Player plus supports two options (Repeat Default / Repeat All) when the demo file finishes playing.
-
Page 16: Multi-Display Setup
7.5 MULTI- DISPLAY SETUP Multiple Display: - Movie: Display movies with scrolling text. - Movie + PIC (L): Play movies & pictures with scrolling text, and the pictures are on the left. - Movie + PIC (R): Play movies & pictures with scrolling text, and the pictures are on the right. ... -
Page 17: Using The Hd Player Plus
8.1 PLAY MEDIA FILES ON THE CF CARD Step 1: Insert the CF card with media files, then turn on the HD Player plus and press the “ENTER” button on the remote control when “’mnt/CF” is highlighted to take you into the CF card. -
Page 18: Using The Remote Control When Media File Is Playing
8.1.1 Using the Remote Control When Media File Is Playing SETUP: Press the button to adjust the brightness, contrast or saturation while the movie or picture is playing. With the “+ VOLUME –” button. - First Press: Adjust the brightness. - Second Press: Adjust the contrast. - Page 19 Please turn on the Log Function first. (Refer to 7.4 Other Setup) The HD Player plus will automatically create log file on the CF card everyday. The log file (.txt) can be viewed on your PC using WordPad.
-
Page 20: Multiple Display Zones
8.3 MULTIPLE DISPLAY ZONES Step 1: Put movies, pictures (only supports PNG format/ size: 150x400/ 96DPI) and text file on CF card. Picture Files If you select the “By Slide Time” item of the picture slide mode; please name the picture files 0.png ~ 9.png. -
Page 21: Download Function
HD Player plus is downloading files. After finishing downloading files, the HD Player plus will display the files automatically. Screen Saver 8.4.2 Auto Download Function If there are more than one HD Player plus, you can use ftp tools to divide them into different regional group. - Page 22 “User ID: ipmedia”, “Password: 0000” and “Port: 21”. Please enter the “Network Timer NTP” window of HD Player plus, and set up the “Download Time”, then the HD Player plus will download all the files from the FTP server at the designated time.
- Page 23 NOTE: f the network connection is unstable or broken, a pop-up window will appear as shown below. The HD Player plus will attempt to resume downloading in 2 minutes. The user can terminate the download by pressing the “RETURN” button.
-
Page 24: Play The Media Files On The Pc
8.5 PLAY THE MEDIA FILES ON THE PC Using Windows Media Player Version 11 (Windows XP/ Vista only) Step 1: Please download and install Windows Media Player Version 11 on your PC first. Step 2: Launch the Windows Media Player Version 11 and the window below will appear. Step 3: Click the “Library”... - Page 25 Step 5: Click the “Library” tab, and then click “Media Sharing”. Step 6: Select the “Share my media”, and click “OK”. Step 7：In the Media Sharing dialog box, select the “Share my media” check box.
- Page 26 Step 8: Confirm that the HD Player plus is connected to the network. In the list of devices below the “Share my media to” check box, select the device (HD Player plus), and click “Allow” to share the media files.
-
Page 27: Download/ Upload Media Files
Step 1: Confirm the “IP Assigned by DHCP” has been disabled, then enter the “Network Setup” item, and type IP Address (example. 192.168.1.100), Mask and Gateway for the HD Player plus (refer to 7.1). Step 2: Confirm the “Local FTP Server” function has been enabled (refer to 7.1). - Page 28 Server. (Default User Name: root Default Password: admin) Step 6: After logging on, all the media files in the CF card on the HD Player plus will be listed. You can download and upload the media files between CF card and your PC.
- Page 29 CuteFTP - You can create all the HD Player plus, and only select the HD Player plus that you want to connect in the list. - Select the files you want upload to the HD Player plus, or download the files to your PC.
-
Page 30: Rs-232 Function
8.7 RS-232 FUNCTION (RS-232 cable is optional) Use the tool “Tera Term” or other tools to control the HD Player plus with ASCII command. NOTE. 1.Baud Rates: - Firmware Updating: Set up the baud rate as “115200”. - ASCII Command: The available baud rates is “38400”. -
Page 31: Http Command Function
Setup” set has been completed (refer to 7.2). Set your router or firewall, and open a port 80 for the HD Player plus. The following figure is an example, please refer to your user’s manual of router for opening ports. -
Page 32: Player Control
9.1 PLAYER CONTROL... - Page 33 (Default User Name: root, Default Password: admin) to log on. After logging on all the media files in the CF card on the HD Player plus will be listed. You can download and upload the media files between CF card and your PC.
-
Page 34: Network Setup
DHCP: Enable/ Disable the DHCP function. IP Address: Enter the fixed IP address, Mask, Gateway and DNS for the HD Player plus. FTP Server: Enable/ Disable the FTP Server function. You can also change the User ID, Password and port of the FTP Server. -
Page 35: Timer Setup
Remote FTP: Set the Remote FTP Server. Auto Power: Enable/ disable the auto power on/ off function and set the time of power on/ off.. Reboot System: After setting, click “Send” to reboot the HD Player plus. -
Page 36: Schedule Function
10. SCHEDULE FUNCTION NOTE: The “NTP Server” or “Local Time” must be set before using the Schedule Function. (refer to 7.2) 10.1 INSTALL THE SCHEDULE SOFTWARE Execute “setup.exe” to install the Schedule software in the CD driver, and finish the installation procedure in accordance with the illustration below. -
Page 37: Basic Schedule
10.2.1 Basic Schedule In the “Basic Schedule” mode, you can select files that you want to play and the set up the play times of each file. Add: Click this button to add a file. The following diagram appears: ... - Page 38 After the setup, press the “SAVE” button, and a pop-up window will appear. Select the path, then click the “SAVE” button to save your setup. NOTE: Do not rename the file (schedule.ini), otherwise the HD Player plus will not be able to read the file.
-
Page 39: Advance Schedule
10.2.2 Advance Schedule In the “Advance Schedule” mode, you can select files that you want to play, and can also set up the play times, and the initial and end time of each file. There are “Time Setup” and “File Setup” in the “Advance Schedule”. -
Page 40: Explanation Of The Warning Message
Step 4: After finishing all setup, press the “SAVE” button, and a pop-up window will appear. Select the path, then click the “SAVE” button to save. NOTE: Do not rename the file (schedule.ini), otherwise the HD Player plus will not be able to read the file. -
Page 41: Apply The Schedule On The Hd Player Plus
10.3 APPLY THE SCHEDULE ON THE HD Player plus Put the “schedule.ini” file and the associated media files on the memory card, and insert the memory card to the HD Player plus. The HD Player plus will auto play the files at the designated time. -
Page 42: Optional Auxiliary Equipment
Demo File 4：a01.xxx Demo File 5：b55.xxx Step 2: Insert the CF card to the HD Player plus, and the HD Player plus will play the default file automatically while powered on. Step 3: Press one of the buttons 1-5 to play the corresponding demo file. -
Page 43: Pir Sensor
Application 2: The PIR Sensor is a motion detector. 11.3.1 Using the PIR Sensor Step 1: Connect the PIR sensor to the HD Player plus, and insert the CF card with media contents to the HD Player plus. Step 2: Open the Setup Menu, and set the Play Button to the Repeat Default item (refer to 7.4 Other Setup). -
Page 44: Play The Demo Files
11.4.4 Play the Demo Files Step 1: Insert the CF card to the HD Player plus, and the HD Player plus will play the default file automatically while powered on. Step 2: Press one of the touch-sensor buttons 1-5 to play the corresponding demo file. -
Page 45: Troubleshooting
12. TROUBLESHOOTING Situation Check Point Insert the CF card before turning on the HD Player plus. Check power cable and power switches. Ensure the video cables are connected between the player and the HD Player plus. No Picture Press the “TV MODE” button on the remote control to select the correct output mode.
