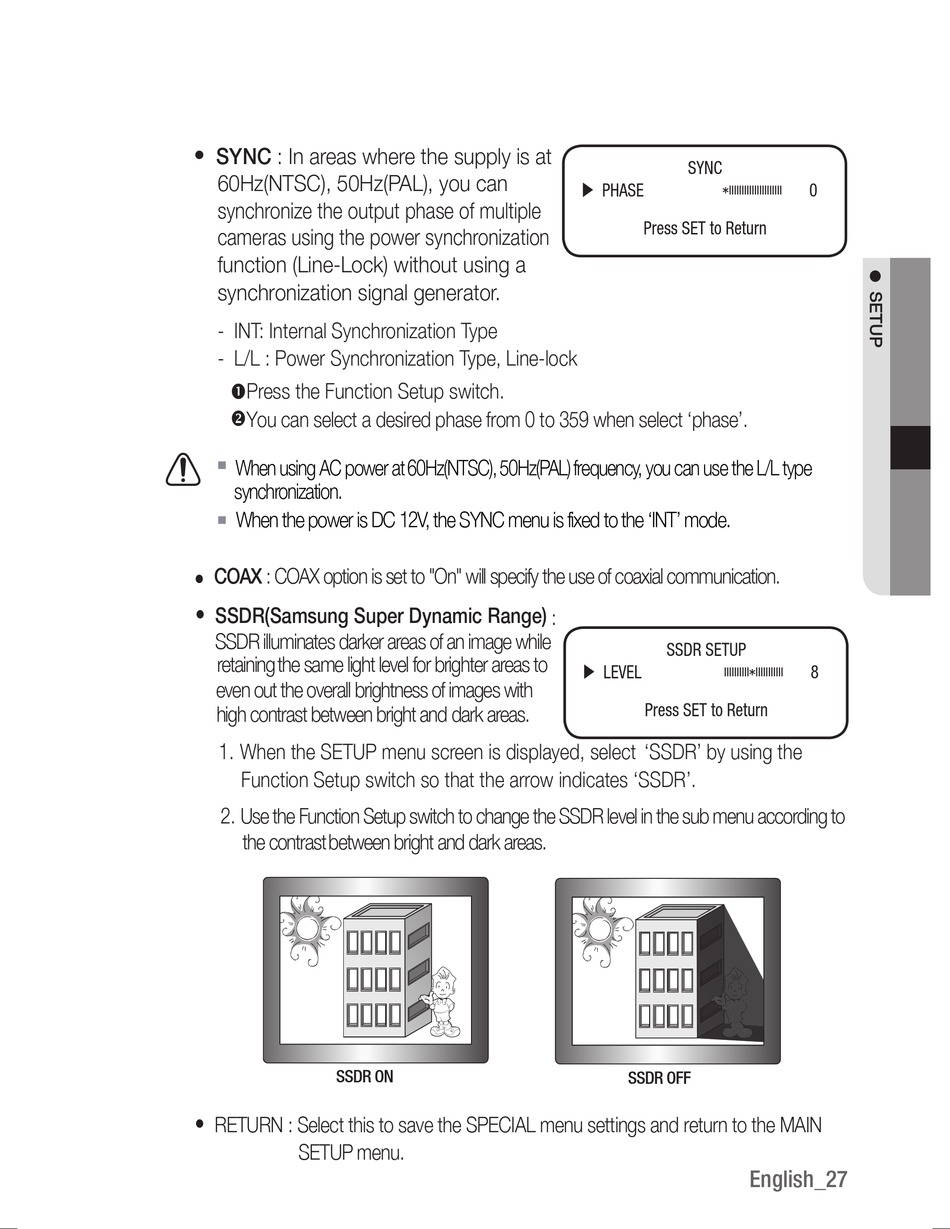

Samsung SCB-2005 User Manual page 27

 syNC : In areas where the supply is at
60Hz(NTSC), 50Hz(PAL), you can
synchronize the output phase of multiple
cameras using the power synchronization
function (Line-Lock) without using a
synchronization signal generator.
- INT: Internal Synchronization Type
- L/L : Power Synchronization Type, Line-lock
Press the Function Setup switch.
 You can select a desired phase from 0 to 359 when select 'phase'.
 When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the L/L type
synchronization.
When the power is DC 12V, the SYNC menu is fixed to the 'INT' mode.

 COaX : COAX option is set to "On" will specify the use of coaxial communication.
 SSDR(samsung super dynamic Range)
SSDR illuminates darker areas of an image while
retaining the same light level for brighter areas to
even out the overall brightness of images with
high contrast between bright and dark areas.
1. When the SETUP menu screen is displayed, select 'SSDR' by using the
Function Setup switch so that the arrow indicates 'SSDR'.
2. Use the Function Setup switch to change the SSDR level in the sub menu according to
the contrast between bright and dark areas.
SSDR ON
 RETURN : Select this to save the SPECIAL menu settings and return to the MAIN
SETUP menu.
SYNC
▶ PHASE
Press SET to Return
:
SSDR SETUP
▶ LEVEL
Press SET to Return
SSDR OFF
0
*IIIIIIIIIIIIIIIIIIIII
8
IIIIIIIIII*IIIIIIIIIII
English_27
