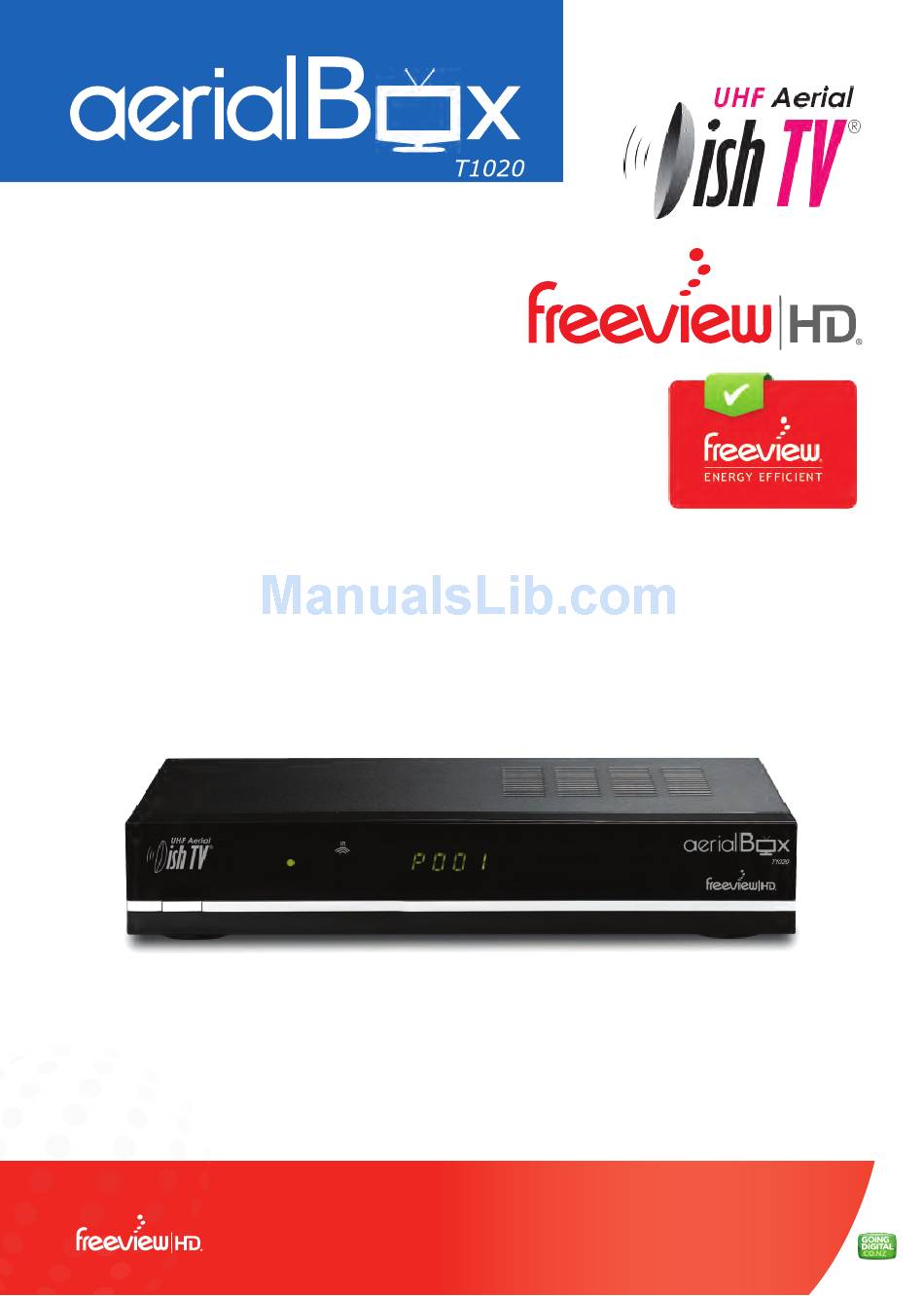

Page 1: User Manual
T1050PVR User Manual... - Page 2 Thank you for choosing this DishTV Freeview High Definition Digital Set Top Box. You will be be able to receive all Freeview|HD UHF High Definition and Standard Definition digital TV channels, as well as detailed Freeview program information with the Freeview 8 Day Electronic Program Guide.
- Page 3 AV Cable AC 230V Firmware Connect to AC 230V~50hz upgrade +HDD connection RF IN UHF Aerial input RF OUT UHF Signal output...
-
Page 4: Table Of Contents
- Recorded Book List - Media Information Connectivity - eNet Buttons - eWeather - eMap - eMail Recording 23,24 Recordings Library Bookmarking Editing Recordings Media Center Firmware Upgrade Frequently Asked Questions Freeview|HD Channel groups Troubleshooting Check your signal levels Technical Speci cations Warranty... -
Page 5: Your Remote Control
Holding the INFO button for 3 sec displays the Version page. Play or Pause Pause playback. Stops playback Stop Exit Fast Forward/Rewind playback. Shows your Recordings list. Library Holding the Library button for 3 sec Holding the Library button for 3 sec Holding the Library button for 3 sec Holding the Library button for 3 sec Holding the Library button for 3 sec... -
Page 6: Connecting Up
Connect that cable that comes from your Aerial to the RF IN socket in the back of your set top box. Connect the AV cable that came with your set top box between the yellow red and white sockets on the back panel of your set top box and the AV input on your TV. -
Page 7: Getting Started
Open the battery cover of the remote control and put two AAA size batteries so the ‘+’ and ‘-’ marks on the batteries match the ‘+’ and ‘-’ marks inside the remote control. Replace the battery cover. Switch your TV on and select the correct video input. Switch the aerialBox ultra on and wait for it to boot up. -
Page 8: Main Menu
Main Menu Main Menu: All other Settings and tuning menus are selected from this main menu. This menu is the gateway for all other menus. User can invoke the main menu by pressing the MENU key. This main menu contains several options User Settings Installation System Con guration... -
Page 9: Favourite View
Favourite View/Organizer Main Menu - User Settings - Favourite View: To enter this menu you will be prompted for your password (Default is 0000) This menu allows you to view your favourite channel list and allows you to classify channels and group them together to be viewed through favourites later. -
Page 10: User Preference
User Preference Main Menu - User Settings - User Preference: Note: To adjust a preference use the right arrow on your remote not the OK button. Here you can adjust your brightness and contrast levels. The Visual Impaired option turns discriptive audio on/o . This setting is for the sight impaired. OSD TimeOut or On-Screen-Display timeout, this option will adjust how long the information banners will stay on the bottom of your screen, these banners appear each time you change channel. -
Page 11: Auto Scan
To see a list of the channels in your area visit www.freeviewnz.tv and type in the search at the top of the page: freeview hd channel frequencies. Here you should be able to nd a list of channel frequencies used on the Freeview|HD® service. -
Page 12: Manual Scan
Manual Scan Main Menu - Installation - Tuning Wizard - Tuning Wizard: To enter the Tuning Wizard menu you will be asked to input your password - the default is 0000. Manual Scan: Allows you to select and scan a single UHF channel/frequency. -
Page 13: System Setting
System Setting Main Menu - Installation - Note: To adjust a setting use the right arrow on your remote. To select a setting use the OK button. HD Resolution – This is where you set the HDMI output resolution depending on what your TV can handle. Most newer TVs have upscalers and so therefore you can sometimes get a better picture by lowering the output resolution in this menu, It does however depend on the quality and type of upscaler your TV has. -
Page 14: Factory Default
Factory Default/ S/W upgrade via OTA Main Menu - Installation - Factory Default This will reset all settings back to factory, deleting all channels and user settings. Default password is 0000. S/W Upgrade via OTA This option can be used only if an Over The Air software update is broadcasted via the UHF transmitter. -
Page 15: Wakeup Timer
Wakeup Timer/Version Main Menu - System Configuration - Wakeup Timer You can set a service to be recorded at a speci c time. Even if the digital receiver is in standby mode, it will start recording at a speci ed time. When the recording comes to the end the unit will stay in standby until you press the standby button. -
Page 16: Esg
Main Menu - The ESG is an Electronic Service Guide. This is in addition to the freeview EPG (accessed using the GUIDE button) . Usually you will only use the ESG for non-freeview channels. The ESG will be displayed when selecting the ESG option from the Main Menu. -
Page 17: Thumbnail Browser
Thumbnail Browser Main Menu - Media Manager - Note: This menu requires that you have a compatible USB drive attached Here you can browse through your recorded programs as thumbnails, the title and information for your recording is displayed below for the selected thumbnail/recording. The information displayed icludes the duration of your recording, the size, the age rating(eg G, PGR, AO), the recordings created date and also the access date. -
Page 18: Recorded Book List
Recorded Book List/Media Information Main Menu - Media Manager - Note: This menu requires that you have a compatible USB drive attached To view the Record Booked List, Hold down the LIB button for 3 seconds while viewing a channel. Or if you are in the library press the Options button (Blue) and select it in the options list that appears. -
Page 19: Enet Buttons
eNet Buttons Main Menu - Connectivity - All of the eNet features require an internet connection via the LAN port on the rear panel of the aerialBox. The weather and map services are provided by secondary providers and are not under the control of DishTV. DishTV cannot guarantee the ongoing availablility of these free services. -
Page 20: Eweather
eNet Buttons - eWeather From the eNet Buttons menu you can select eWeather. Use Up/Down to navigate between eNet buttons Use SMS type keyboard to enter letters. (entry using number keys ) Type in the Country you desire and then the closest city name to you. -
Page 21: Emap
eNet Buttons - eMap From the eNet Buttons menu you can select eMap. Use Up/Down to navigate between eNet buttons Use SMS type keyboard to enter letters. (entry using number keys ) Type in the area you wish to search and press OK for the map to start loading. -
Page 22: Email
eNet Buttons - eMail To check your email on your TV choose the eMail button from the eNet menu. Pro le Entry - To keep your email account secure this digital receiver allows multiple secure pro les. The pro e has nothing to do with your email login or password. -
Page 23: Recording
This unit has a single tuner so this means there will be some limitations to what channels you can watch while you are recording. Freeview|HD has three channel groups, when recording a channel you can only watch another channel from the same group as the one you are recording. -
Page 24: Recording
Recording Note: This option requires that you have a compatible USB drive attached Once you have a recording set you will see a small R or S to the righthand side of your program. The R indicates the program will only be recorded once, the S indicates the program will be recorded every time it appears on TV. -
Page 25: Recordings Library
Recordings Library Note: This menu requires that you have a compatible USB drive attached To view recorded programmes, press the Library button. It will be labeled Library on the remote. From here you can select the programme you wish to play. To play a recording press the OK button, this will then ask you if you want to play from the beginning or from your last viewed position. -
Page 26: Bookmarking
Bookmarking What is Bookmarking? You can mark favourite parts of a recording by creating bookmarks, and then jump to them. You can also use bookmarks to skip ads, just place a bookmark at the end of each ad break and when you next play your recording you can easly skip the ads by pressing the Right Arrow button next to the OK button. -
Page 27: Editing Recordings
Editing Recordings To enter the Record Edit window select your recording from the Library or Thumbnail Browser, then push the Green button on your remote then the OK button. Here you can remove sections of your recordings. In the record edit window your recording will play in the top right of the screen, you can use all your normal play, fast forward, rewind, pause functions to get to where you want to edit. -
Page 28: Media Center
Media Center Main Menu - Connectivity - In the Media Center you can browse your USB drive, Hard Drive and Network connections for les. Under settings you will ne the IP settings for your unit. This can be set to AUTO or MANUAL, The manual setting allows you to set your IP address, Gateway, Subnet Mask, Primary DNS and Secondary DNS. -
Page 29: Firmware Upgrade
Firmware Upgrade Via USB: One way to perform a rmware upgrade of your receiver is via USB using the USB port in the back. To do this just follow the instructions below... 1. Download rmware from www.dishtv.co.nz and extract (unzip) onto a USB ashdrive in a folder called DISHTV_7162 2. -
Page 30: Frequently Asked Questions
Q. Cannot watch Prime TV when recording TV1 or TV3 A. Freeview signal is transmitted on 3 x di erent frequencies, with single tuner receivers you can only tune to and record 1 x frequency at a time and hence channels on the other frequencies are not available until recording is nished . -
Page 31: Troubleshooting
Troubleshooting Problem Possible Causes Solution Check the front panel. If nothing No picture T1020 is not plugged in or turned is illuminated then it is a power on at the wall. issue - please check power socket and plug socket. Please make sure that Main Menu - Your display isn’t able to display the Installation - System Setting - HD... -
Page 32: Technical Specification
Technical Specification T1020 Designed to receive Freeview|HD high definition broadcasts via a UHF antenna. YUV via RCA sockets Composite via RCA sockets For internet connection Max 10w... -
Page 33: Warranty
Warranty Please keep your receipt as proof of purchase. This product is warranted for any defect in materials or workmanship for one year after the original date of purchase. This product is for normal domestic use only. this warranty does not cover damage from misuse or neglect, accidental damage, vermin infestation, eccessive voltages such us lightning or power surges or any alteration that affects the performance or reliability of the product.
