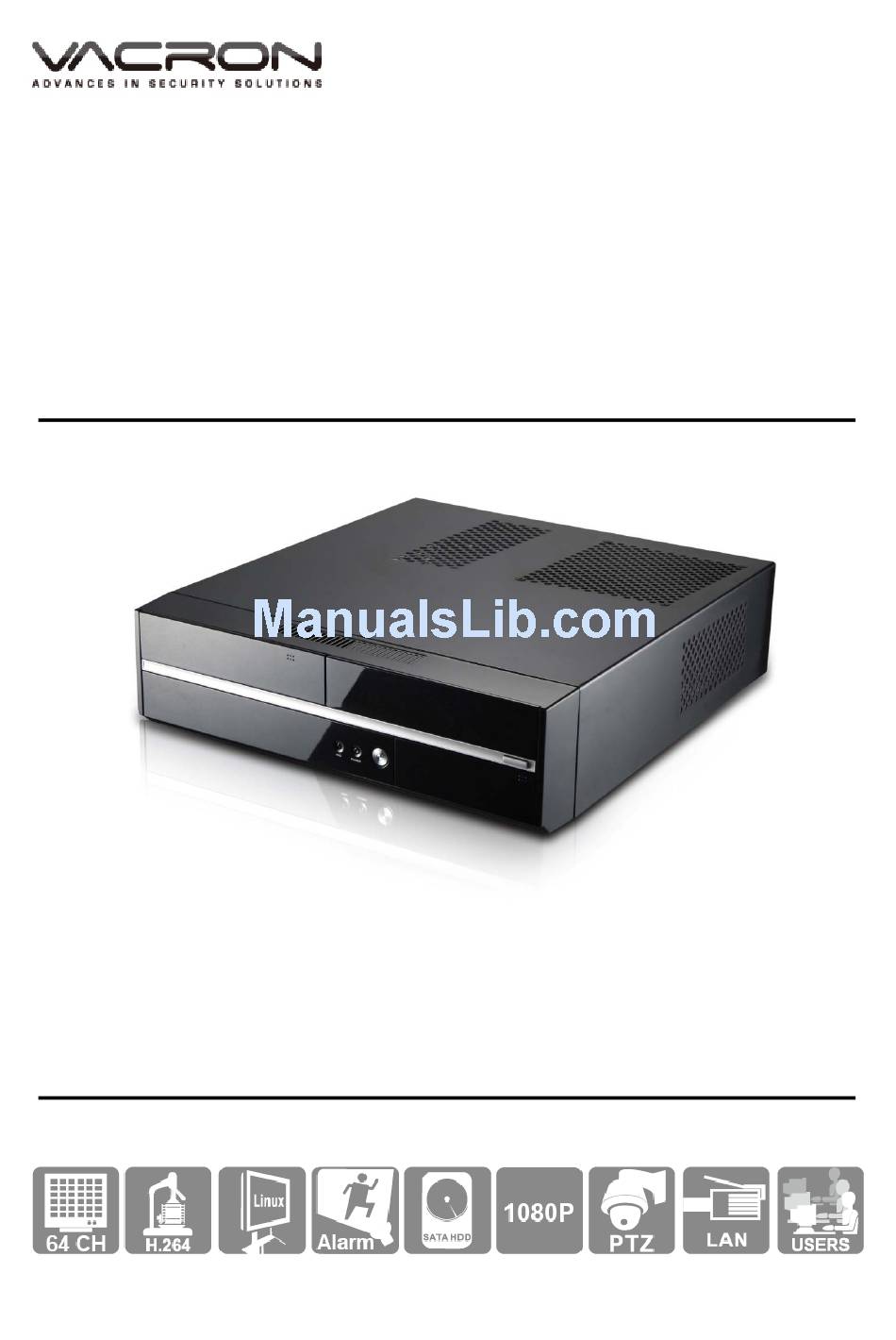

- Page 1 16 / 36 / 64 CH Linux NVR Network Video Recorder User’s Manual Network video recording system 2013 OCT V1.1...
- Page 2 Notice before use This authorization agreement of client’s software/hardware is legally effective to you(individual or single machine) and our company. This agreement covers components of software/hardware, media, print, online publication and electronic files. All the application through installation, duplication or the other way must be based on this agreement.
- Page 3 The provision of this paragraph is in effect to the maximum extent permitted by applicable law. In any situation Xia, VACRON or its dealer assumed any special, and accidentally of, and indirect of, and or any indirect loss (including but not limited to...
-
Page 4: Table Of Contents
CONTENTS Foreword 【Notices】 ........................1 I.【Specification List 】 ........................2 II.【Read before use】 ......................... 4 III.【Installation manual】 ........................5 IV.【Software instruction】 ....................... 6 V.【NVR function description by area】 ..................7 VI.【Set-up of interface operation】 ..................... 8 6.1 System settings: ......................... 8 6.2 setting of cameras ...................... -
Page 5: Foreword 【Notices
Foreword 【Notices】 WARNING Do not expose the DVR under the sunlight, heat or wet environment while installation. As it could decrease the performance of DVR and damage the machine. Do not touch the power plug or case with wet hands as this could result electric shock. -
Page 6: Specification List
I. 【Specification List 】 Hardware Specification Processor Intel® Core™CPU Core i5 3470 Memory 4GB DDR3 RAM,1GB Flash(DOM) HDD Capacity Storage: Maximum 2 x 3.5" SATA HDD,1 x 5.25" drive bay One 2T HDD included(support for 3T) Lan Port 1 x Gigabit RJ-45 Ethernet Port LED Indicators HDD, Power, Network LEDs 6 x USB 2.0... - Page 7 Play, pause, stop, reverse play, next/ previous video file, different Playback Control speed control Convert multiple recording files to the external USB device Export instantly Split-screen display model for 1, 4, 9, 16, 25, 36, 49 or 64 Remote Display Mode channels.
-
Page 8: Read Before Use
II. 【Read before use】 2.1 Front panel introduction： 1. Hidden hard drives (built-in 2T) 2. Indication light of hard drives. 3. Indication light of power supply. 4. Switch on button of system 5. 5.25 inch installation device; expandable CD burner(reserved) 2.2 Rear panel introduction：... -
Page 9: Installation Manual
III. 【Installation manual】 1． At the first turn-on, if fail to enter, please select SATA DOM as the first prior turn-on device in BIOS. 2． At the first entrance into system, if tip for HDD formatting, when you need recording, please click “yes”, if no need, please click ”no”. -
Page 10: Software Instruction
IV. 【Software instruction】 1. Login After installation and restart to enter the operation interface, if you proceed any operation, system will pop-up the dialogue box to tip login (some version will default and not to tip. If the user needs the tip, he may enter the function list for user and cancel the system permission right under the item of “default”... -
Page 11: Nvr Function Description By Area
V. 【NVR function description by area】 1， exit（exit system，auto power off） 2， channel switch option（1，2，4，9，16，25，36 channel switch） 3， the video display area （select the corresponding camera, double-click for amplification of single channel and return to multi-screen） 4， tool bar menu (enter system setup, camera setting, network setting, option of playback control., etc.）... -
Page 12: Set-Up Of Interface Operation
VI. 【Set-up of interface operation】 6.1 System Setup 6.1.1 General Setup: Click the setting button to enter setting interface. You may setup the flow time of video loss, alarm/audio alarm ; setup the shift time length of video image switch; start the loop video to set up the restart time each day;... - Page 13 6.1.2 Date/ Time Setup Set the current time, and then save it. Refer to the following figure. 6.1.3 Network Time Setup: Start auto calibration and setup the server address, port, time intervals and then click on “apply”, “immediate calibration”. And then click return. As the following figure:...
- Page 14 6.1.4 Disk Info: View the situation of hard drive mounting and usage...
- Page 15 6.1.5 Version information Enter to find the current software version. You may upgrade and renew the marquee pictures. As the follows:...
-
Page 16: Setting Of Cameras
6.2 setting of cameras 6.2.1 Click on setting button to enter into the interface of setup. click on ，you may turn on the different channels and set up the IP address/corresponding network port/user name and password(if the setup and network are no problem, camera will display on the corresponding channel)click on to apply. - Page 17 6.2.1.2 Select “Network”, you may revise the IP address of network cameras. As the following figure:...
- Page 18 6.2.1.3 Select “time/date” to revise the time date. As the following figure: 6.2.1.4 Select PTZ setting (only support IP speed dome). You can slect protocol as Pelco P and Pelco D. IP address is up to 4, baud rate can choose 1200,2400, 4800, 9600, 19200 and speed can support up to 23.
- Page 19 6.2.1.5 Select audio setting. You can choose turn on or off, mode can choose micro phone, horn or both. There are G.771 and PCM sound encoding. Sample sounds is 8K by default. You can select a higher level as 16K. Volume size defaults to 50, the output volume for 75, and noise level is 50 As the following figure：...
- Page 20 6.2.1.7 Select color to adjust brightness, color, contrast and saturation. Allow users to adjust the default value for reset. As shown in figure:...
- Page 21 6.2.2 In the settings menu, select “video program” to revise the video status of NVR as full time video, motion detection or non-video. Click on to setup one single channel of click on to set up for all channels. As the following figure: 6.2.3 Select “motion detection”...
- Page 22 6.2.4 In the camera settings, select automatic cruise (only support high speed dome). The default point can support up to 32 and stay for the high energy set 15 seconds. 32 default points default in a closed state. When you want to set the 5 default point, every arrival time needs to be clearly defined and select to open status As the following figure：...
-
Page 23: User Setting
6.3 User Setup: Click on to enter the setting interface. select , you may increase users, edit users and delete users. Only the user with administrator permission can carry out the revision. As the following figure: Click on “Add User” will pop-up the following dialogue box. In the white dialog box, you can increase new“Username”... -
Page 24: Network Setting
you can increase new“Username” , “Password ” and “Description”. The right side will come out the permission option of browsing, playback, management and remote access for new user. Click on to save. After setting, click on to exit. 6.4 Network Setup ，if you need to Click on to enter setting interface. - Page 25 6.4.2 Port Setup: Software default page communication ports: 80, video communication ports: 5500 (CMS remote ports use shall correspond), hand controlled communication port: 5577 (no function). As the following figure： 6.4.3 ADSL Setup: Enter the user account, the user's password, select the link, confirm, display status.
- Page 26 6.4.4 DDNS Setup: Select a DDNS service provider, software defaults to www.3322.org, input domain name, user-ID, login password, select the link, and press to confirm. As shown in figure: 6.4.5 E-mail Setup: Set up the time length of mail sent, input the mail address and then confirm. As the following figure:...
-
Page 27: Playback
6.5 Playback ，playback interface will show up（playback channels Click on playback button are up to 4） ，as the following figure： Click on the channel with record as the following figure： Click on the channels to check, display area to show the video you select. As the following figure: Sect the time mode (default), file mode, time mode: Firstly select the recording date, display split box and then select the camera number... - Page 28 to playback. Click on the camera twice or hold down the mouse left button to draw into the split box. Then you can playback the video file. The following figure shows video from 7:00~8:00 in the first split box. Select this split bar and it will turn into deep green.
- Page 29 6.5.2.1 Insert USB to back up.As the following figure: Playback buttons description： ：Play ：Pause ：Fast forward ：Backward reverse ：2、4 times fast forward ：1/2、1/4 、1/8 slow motion ：Stop ：Screenshot...
-
Page 30: Screenshot
6.6 Screenshot Click screen shot icon or click screenshot button of the playback interface to catch the current BMP picture from the monitoring or playback split box. As the following figure: In the blank dialog box of picture folder will display the time, lens information of BMP pictures through screenshot. -
Page 31: Exit From System
6.7 Exit from system Click system-exit system to pop up dialog box. As the following figure: After confirmation, system will automatically shut down... -
Page 32: Windows Cms Remote Monitoring Software
VII. 【Windows CMS remote monitoring software】 7.1Log on to remote monitoring software Please click on the mouse left button twice to install system to Microsoft on your computer (currently supports XP, 32-bit Vista, 32 bit WIN7). Then on your desktop after the installation or Assembly to see NetMonitorClient.exe perform the following figure Login window appears after implementation, as shown in Figure;... -
Page 33: Add Nvr
7.2 Add NVR Click the "Add current device" and back to "real-time" viewing. Then you have set the number of channels into the list, To see the picture, please click twice on the number of cameras so that the camera icon will turn into green. - Page 34 Click the right button of mouse to show your favorite settings by the function of listing.
- Page 35 For More Information Please check VACRON Website http://www.vacron.com Made in Taiwan...
