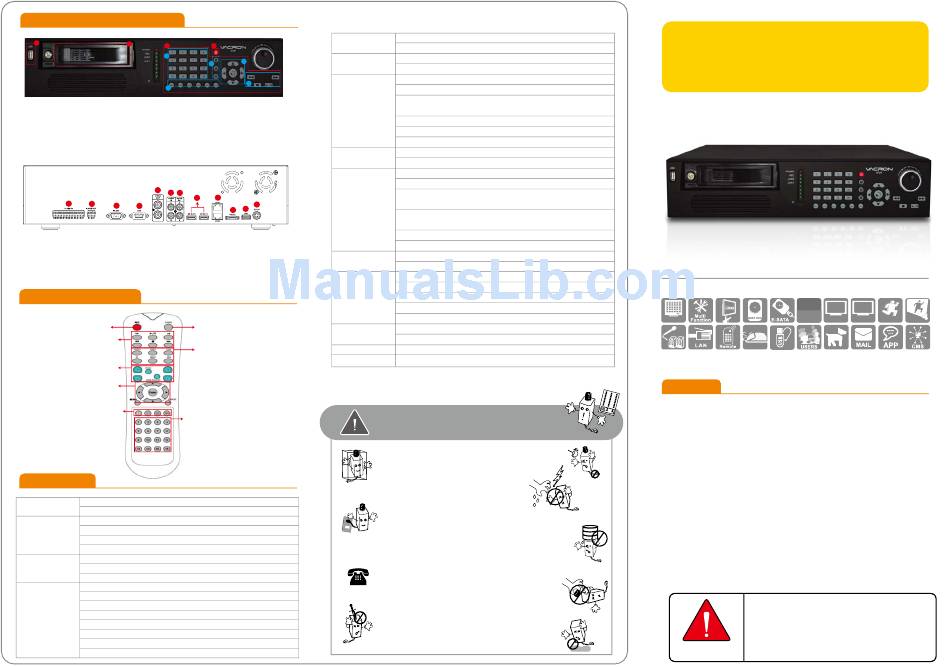

Vacron VIT-NK700 Quick User Manual

F ront Pa nel & Insta lla tio n
A
B
D
1
5
A) USB slot B) Lockable removable hard drive tray.
D) Operating on front panel is identical to operating on remote controller.
Please refer to section of remote controller for instructions.
1) Single channel buttons 2) Display mode: 4, 9, 16 channel viewing
3) Arrow keys / Enter
4) Playback keys: fast forward/rewind/play/pause/stop keys, and jog shuttle
5) Quick buttons: Record/Live/Play/Sequence/Next/Screen.
5
6 7
8
1 2
3 4
1) Alarm Input 7) Audio Output
2) Alarm Output 8) HD Output x 2 (For single display, please use HD OUT 1)
3) RS-232 9) LAN x2 port
4) XGA Output 10) E-SATA Output
5) Video Output 11) USB 2.0
6) Audio Input 12) DC12V
Rem ote Con tro lle r
Record
LOG
PLAY BACK
AUDIO: Record Audio
PREV: Prev. Page
LIVE: Live View
Ptz Controller
ID:NVR ID
NEXT: Next Page
Enter / Arrows Keys
SEQ: Sequential Mode
Display Mode
Single Channel Mode

Specification

System CPU: TI SoC
Operating system：Linux
Build in SATA interface x 4, compatible SATA/SATAII HDD( Max. 3TB)
Storage Device/
Interface Support E-SATA interface and External E-SATA RAID function
HDD Caddy x1
DVD burner x1(Optional) (DVG RW / DVD ±R；DVD burner occupied one interface of SATA)
35 operating buttons on Front panel / shuttle play controller
User Interface
NVR IR remote control x1
RS-232 x1 –support SMS sending device, SMS generate automatically when Alarm activated
3 Video outputs: HD output x2 and VGA x1 ;
Video And Other
I/O Interface The alternatives are HD1 and VGA;HD2 is reserved.
USB 2.0 x2 – connect to an external USB devices (mouse or USB flash)
Alarm OUT x4 / Alarm IN x16
Headphones (speakers) sound output x1 (left and right)
Microphone audio input jack x1 (left and right)
Ethernet x2 – 10/100/1000 (IEEE 802.3 Type 10Base-T /
IEEE 802.3u Type 100Base-TX / IEEE 802.3ab Type 1000Base-T)；Auto-MDIX.
Network Protocol
C
Video Format
3
2
Live / Playback
4
C) Power switch
Event Notification
Recording Mode
9
12
11
10
Backup Management
System Management
Support Equipment
Power
Operating Temperature
★Product specifications are subject to change without notice; please contact us for the latest information.
CAUTION
Do not expose the DVR under the sunlight, heat or wet
Do not touch the power plug or case with wet hands
Do not forcedly bend or put heavy object
Do not operate with damaged power cord or loose
Please use individual power instead of share electrical
Do not attempt to service this DVR by yourself as it may
Please do not remove the machine housing during operation.
Do not place the machine on an uneven surface
Avoid any shock or bumping of the DVR while recording.
IPv4、ARP、TCP、UDP、ICMP、DHCP、NTP、DDNS、SMTP、FTP、
HTTP、RTP、RTSP、RTCP
H.264 compression format
E-Map
Real-time Live View capable 16CH VGA @30fps or 4CH 1080P @23fps
4-CH 1080P @23fps Synchronous Playback
Recording Query: Time search, Event search (IP CAM displacement,
Alarm I / O triggered alarm notification)
Playback speed/ slow forward / fast forward in 5 different
speed, Play Frame by Frame mode (forward or backward)
Pentaplex operation: Live/ Record/ Playback
Support e-mail / SMS / Mobile App message notifications
Event Notification : Alarm I / O trigger, Motion detection, Video loss, HDD error
Constant recording
Schedule recording
Alarm triggered recording (include motion detection recording): Complete event
video reserved 10 seconds before and 60 minutes after event taken place.
Schedule alarm triggered recording (include motion detection recording): Complete
event video reserved 10 seconds before and 60 minutes after event taken place.
Manual recording
Only recording without live (depending on user authority)
Video output format: AVI
The dump media directly burn to CD / DVD (optional) USB mobile storage device or remote NAS
Remote Client software; live, playback set up by PC (remote side)
Authorization: Maximum 10 group accounts, Hierarchical authority
Support 3 users log on by Client-side software or browser.
Systems operation records, record login time, IP and selected video.
Browser: MS IE7-IE9 / Fire Fox / Safari / Chrome
Support megapixel IP Camera video
Support CCTV camera video via Video Server.
DC12V / 8.33A ( accessory 110V-240V 2.5A / DC12V 8.33A ADAPTER x 1)
0-45 ℃
For your safety, please read the manual
and follow the instructions carefully
before you install the DVR.
environment while installation. As it could decrease the
performance of DVR and damage the machine.
as this could result electric shock.
on power cable as this could result in injury to
personal or equipment.
electrical outlet as this could result in electric shock or accident.
outlets with other electrical equipment as this could
result in damage or accident.
expose you to dangerous voltage or other hazards.
Please refer all service to the qualified servicing distributor.
It may cause electric shock or accidental injury.
or it would decrease the DVR efficiency or malfunction.
Improper handling could damage the system.
16ch H.264
Network Video Recorder

Quick User Guide
Network video recording system
16 Channel

Features

•TI SoC CPU special design for NVR with the best image process efficiency.
•Support 4 units of SATA/SATA II device up to 12TB HDD recording capacity.
•Advanced H.264 compress technology provides the best HDD space usage.
•Embedded Linux system, to eliminate the threat from virus and hacking.
•Support 16CHs of IP camera (1080P) video and also support analogue
camera video with optional Video server.
•HD output and E-SATA.
•Support IP CAM position layout and editable user definition.
•Variety of backup management can directly burn to CD / DVDR-RW (optional),
USB storage device or NAS.
•Support 3 users log on by Client-side software or browser.
‧Please install the SATA HDD and connect all of SATA
‧Please check the voltage is fit for the NVR.
‧Please check the connection with other device is right or not.
‧Please insert the power line.
CAUTION
‧The power light is red after the NVR is power on.
H11ANK7001

2013 AUG V1.0
Full HD
1920x1080 1920x1080
1080P
Motion
VGA OUT HD OUT Alarm
power lead & data cable before switch on the machine.
