H1/1 ORANGE (-) ground-when-armed output: This wire supplies a (-) 500 mA ground as long as the system is armed.

This output ceases as soon as the system is disarmed. The orange wire is pre-wired to control the 8618 starter kill

relay.

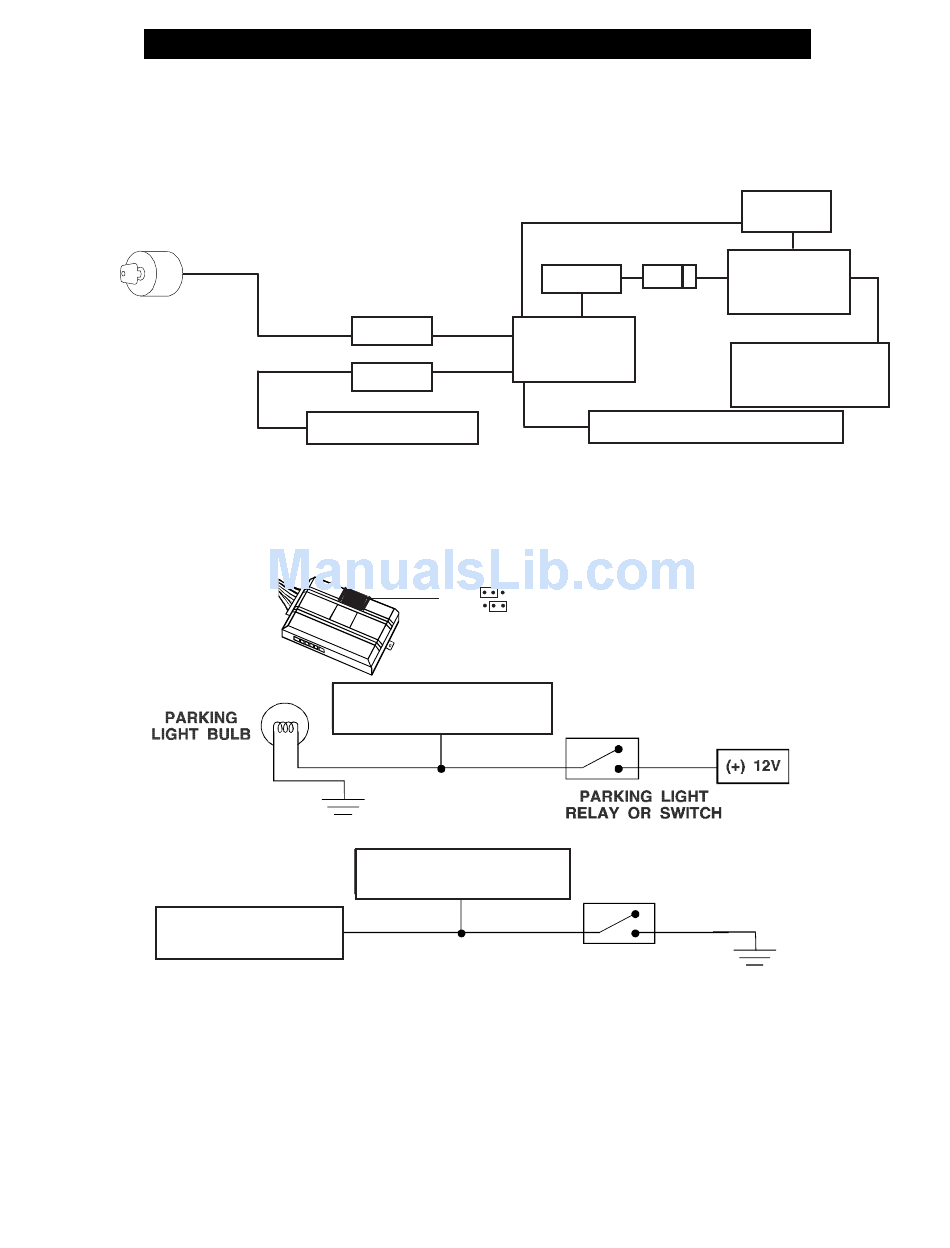

NOTE: If connecting the ORANGE wire to control another module, such as a 529T or 530T window controller,

a 1 amp diode (type 1N4004) will be required. Insert the diode as shown below.

IGNITION SWITCH

IMPORTANT! Never interrupt any wire other than the starter wire.

H1/2 WHITE light flash output: As shipped, this wire should be connected to the (+) parking light wire. If the light flash

polarity jumper under the sliding door is moved to the opposite position (see below), this wire supplies a (-) 200 mA

output. This is suitable for driving (-) light control wires in Toyota, Lexus, BMW, some Mitsubishi, some Mazda, etc.

FACTORY PARKING

LIGHT RELAY

H1/3 WHITE/BLUE channel 3 (-) output: This wire provides a (-) 200 mA signal whenever the transmitter code

controlling channel 3 is received. This signal will continue as long as that transmission is received. Use for options such

as the 551T Valet

Start system, the 529T or 530T power window controllers, etc.

IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! The transistorized output

can only provide 200 mA of current, and connecting directly to a solenoid, motor, or other high-current device

will cause it to fail.
