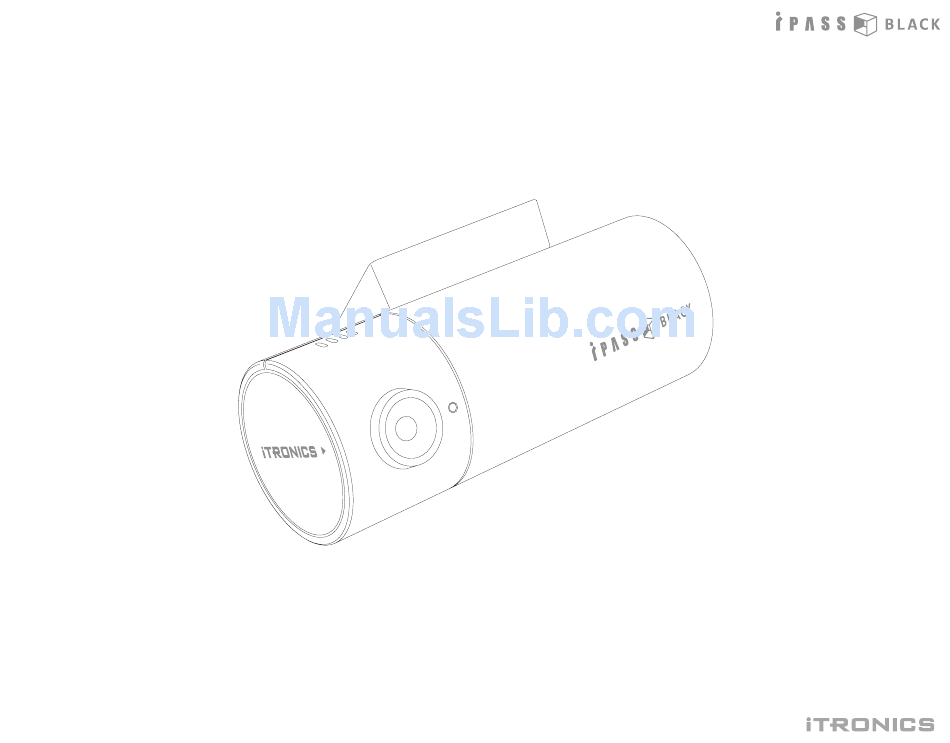

- Page 1 User Manual ITB-70 / 70G User Manual Vehicle Driving Recorder Distinctive Feature of each model : ITB-70 has no GPS / ITB-70G has built-in GPS...
- Page 2 The manufacturer shall not be liable for any damages due to the loss of data or any other malfunction occurred by the use of this product. • This user manual is applied to both ITB-70 and ITB-70G. If there is any sole feature corresponding to ITB-70G only, a remark of ‘ITB-70G only’ is added on it.
-
Page 3: Table Of Contents
Table of contents Main features Safety instruction – Warning Safety instruction - Caution Attention to SD memory card Attention to GPS Components Name of the product details Installation Operation of the product Installation of the PC player How to play the video Function keys in the PC player How to change the user settings How to change the time setting... -
Page 4: Main Features
Main features 1. The video and audio data are continuously recorded by H.264 high efficiency data compression method. Recording coverage is wide view angle 120 degree and recording resolution is 640x480. 2. When impact of collision, lightning acceleration or sudden brake is detected by the built-in impact sensor, the recorded data is marked as event file and stored in SD memory card. - Page 5 Main features 8. The front-view camera lens can be tilting up to 180 degrees and record the inside of the vehicle if necessary. 9. This Product is certified by major worldwide type approvals such as CE, E11 (Europe), FCC (USA), VCCI ( Japan). 10.
-
Page 6: Safety Instruction - Warning
Safety instruction - Warning 1. Do not try to operate the product when driving. 2. Do not disassemble, repair or modify the product. This void the warranty and the manufacturer takes no responsibility for the damage or problems to the product. Warning 3. -
Page 7: Safety Instruction - Caution
Safety instruction - Caution 1. Please remove any excessive window tinting or obstacles of windshields. This may cause poor recording quality. 2. Please clean the lens of camera regularly. Caution 3. If you need to re-install or change the location of the product, please ensure of the direction and angle of the camera lens for the proper recording position and confirm its recording status on playback. -
Page 8: Attention To Sd Memory Card
Attention to SD memory card 1. Check the SD Memory card regularly in order for its normal and right operation. 2. Do not remove the power source or pull out the SD Memory card from the product when recording the data into the SD Memory card. -
Page 9: Attention To Gps
Attention to GPS (ITB-70G only) 1. A certain amount of time (minimum 5 minutes to maximum 30 minutes) may take until the GPS reception starts. This is the processing time of the GPS receiver to communicate with GPS satellites floating in the sky and may vary depending on weather condition and surrounding circumstances. -
Page 10: Components
Adhesive tape Cable holder (spare) User Manual ITB-70 / 70G User Manual Vehicle Driving Recorder Distinctive Feature of each model : ITB-70 has no GPS / ITB-70G has built-in GPS Power cable User manual SD card reader Constant power source (Option) -
Page 11: Name Of The Product Details
Name of the product details ④ ① ③ ① Power-on LED Indicator ( common use for Event-recording, formatting and GPS status indicator button) ② Microphone ③ Sliding guide rail to mounting Cradle ④ SD memory card protection cover ② ⑤ ⑤... -
Page 12: Installation
Installation 1. Open the SD memory card protection cover and insert the SD memory card into the slot. Then close the cover. 2. Put the mounting cradle on the main unit and push forward it as shown on the left picture. You can hear the click sound if the mounting cradle fixed properly. 3. - Page 13 Installation 5. Align the direction of camera lens to the front referring to the arrow mark printed on the main unit. 6. Connect the power cable to the cigarette lighter jack of the vehicle. 7. Arrange the cable with cable holders. The installation is completed.
-
Page 14: Operation Of The Product
Operation of the product 1. Turn on the power of a vehicle, the POWER LED turns on. The POWER LED also indicates the status of the GPS connection for ITB-70G and it will blink with 2 seconds interval and stop to blink once the GPS is successfully connected. 2. - Page 15 Operation of the product 5. When turning off the power of a vehicle, the product process the last data for 5~10 seconds and turns off with the 3 scale beep sound. Please do not remove the SD memory card before you hear 3 scale beep sound. •...
-
Page 16: Installation Of The Pc Player
Installation of the PC player You can play back the recorded video and audio data on the PC via PC player supplied by the manufacturer. This PC player program is most optimized to run in Windows XP (32 bit) or Windows Vista (32 bit). 1. - Page 17 Installation of the PC player 3. Click the start button and the installation will start. 4. If the installation is finished, click the finish button. 5. If shortcut icon appears on desktop screen, the installation is completed.
-
Page 18: How To Play The Video
How to play the Video 1. Pull out the SD memory card from the main unit and insert it into the memory card reader as shown on the left picture. Then put the memory card reader into the USB port of the PC. 2. - Page 19 How to play the Video 4. Select the appropriate SD memory card and click the OK button. 5. All files in the SD memory card will be loaded on the right window and playback one by one in the sequential order of recording date and time (older comes first ).
- Page 20 How to play the Video 7. The graph shown under the playback screen means the degree of X axis ( front and back), Y axis (left and right), and Z axis ( up and down) impacts when an event occurs. ※...
- Page 21 How to play the Video 9. Built-in GPS records the driving coordinates and match it to the internet PC map. (ITEB-70G only) • Please note that the PC must be connected to Internet in order to use internet PC map service. •...
-
Page 22: Function Keys In The Pc Player
Function keys in the PC player SIZE FILE NAME DATE / TIME Hour 20090325_194518 11MB 2009-03-25 19:45 20090325_194618 11MB 2009-03-25 19:46 20090325_194718 11MB 2009-03-25 19:47 20090325_194818 11MB 2009-03-25 19:48 20090325_194918 11MB 2009-03-25 19:49 20090325_195018 11MB 2009-03-25 19:50 20090325_195118 11MB 2009-03-25 19:51 20090325_195218 11MB 2009-03-25 19:52... - Page 23 Function keys in the PC player Icon Description Go to previous or next file Jump to 10 seconds previous or after image Play Pause Play speed control ( 5 steps- frame by frame, x0.1 slow, x 0.5 slow, x1 normal, x2 fast) Video brightness control 180 degree rotate for reversed images Image capture...
- Page 24 Function keys in the PC player FILE NAME SIZE DATE / TIME Hour 20090325_194518 11MB 2009-03-25 19:45 20090325_194618 11MB 2009-03-25 19:46 20090325_194718 11MB 2009-03-25 19:47 20090325_194818 11MB 2009-03-25 19:48 20090325_194918 11MB 2009-03-25 19:49 20090325_195018 11MB 2009-03-25 19:50 20090325_195118 11MB 2009-03-25 19:51 20090325_195218 11MB 2009-03-25 19:52...
- Page 25 Function keys in the PC player Icon Description Select the SD memory card Open the file from the PC Delete the file (one by one) Save the file (one by one) Save all event files marked event icon Setting - For more details, please refer to next page...
-
Page 26: How To Change The User Settings
How to change the user settings You can control the following parameters on the setting menu in the PC player. User Settings Capture image format You can change the default Audio recording : setting values in the menu. I mpact sensor sensitivity : Press the value Window and select the value you want to Recording quality :... - Page 27 How to change the user settings - Route for file save : Select or change the PC folder where you want to save the file. - Capture image format : BMP or JPEG - Audio recording : ON or OFF - Impact sensor sensitivity : (sensitive) 0.4>0.6>0.8>1.0 (dull) OFF (auto event detection turns off ) - Illumination control : Standard or Bright (‘Bright’...
-
Page 28: How To Change The Time Setting
How to change the time setting If you need to change the time setting comparing the GMT world time zone or local summer time, you can change the time setting in the user settings menu as follows. 1. Go to the User Settings menu in the PC player and User Settings you can find the sub-title, ‘Time Zone”. - Page 29 How to change the time setting <World Time Zone> International Date Line +12 -12 International Date Line WEST EAST WEST...
-
Page 30: How To Manage The Recorded Files
How to manage the recorded files This products records video/audio with always-recording mode and the recorded files are stored at SD memory card as per the resolution of User Setting Menu. The list of files stored is shown as per sequential order of recorded date and time. The event recording files, out of all recorded files, which record events such as impact sensing and/or manual-recording, should be easily identified by the event icon be placed in front of the file name. - Page 31 How to manage the recorded files 3. In case that all ordinary recording files are deleted and only the event recording files are left, the event recording files are also deleted from the oldest after remaining 30 minutes of memory capacity for newer video recording. Thereafter, by repeating the deletion of older files and the recording of newer files, it records the newest 30 minutes of video.
-
Page 32: How To Update The Product Firmware
How to update the product firmware The firmware of the product can be updated easily if any new firmware is released for the purpose of improvement and / or correction of the product firmware. 1. Download the new firmware from the web site of local service provider. 2. - Page 33 How to update the product firmware 5. Please copy the “app.bin” file into the root directory of SD memory card. 6. Pull out the SD memory card from the PC and insert it into the product. Turn on the power and then firmware update will start automatically with the starting beep sound.
-
Page 34: How To Format The Sd Memory Card
How to format the SD memory card- method 1 Generally, a SD memory card has limited lifetime and may be unable to store new data after certain period of time. In order to extend its lifetime, we recommend you to format the SD memory card periodically. The recommendable format cycle is 2 times per week and the method of format is as follows. - Page 35 How to format the SD memory card- method 2 1. Press the REC button longer than 5 seconds then format will start with short beep sound. 2. When formatting, 3 single scale beep will sound. 3. If the format is completed, the beep sound will stop and the product will re-boot automatically.
-
Page 36: Product Specifications
Specifications Items ITB-70 ITB-70G Type of sensor CMOS Camera Coverage / Pixels 120 degree / 0.3 Mil pixels M i n imum I llumination 0.9 LUX D ata compression H.264 3 ax is impac t sensor Built-in Recording R esolution... - Page 37 REV.100727-1 Vehicle Driving Recorder Distinctive Feature of each model : ITB-70 has no GPS / ITB-70G has built-in GPS...
