iTronics ITB-500HD User Manual

Real 2ch hd vehicle driving recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
ITB-500HD User Manual
Real 2CH HD Vehicle Driving Recorder
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITB-500HD and is the answer not in the manual?

Questions and answers

Related Manuals for iTronics ITB-500HD

Summary of Contents for iTronics ITB-500HD

  • Page 1 User Manual ITB-500HD User Manual Real 2CH HD Vehicle Driving Recorder...
  • Page 2 <Warranty & Scope of Liability of Video Recording> This product is a supplementary device to increase driver awareness for safe • driving and assist in accident prevention, as well as reference about the circumstances of an accident. This product and it’s recorded data can not be used to legally judge any 3 party’s liability of an accident.

  • Page 3: Table Of Contents

    Table of contents Main features • Safety instruction – Warning • Safety instruction - Caution • Attention to SD memory card • Attention to GPS • Components • Name of the product details • Installation • Operation of the product •...

  • Page 4: Main Features

    Main features ITB-500HD records a front and rear view simultaneously with vivid HD resolution. It records video and audio continuously using H.264 high efficiency data compression method in the screen resolution 1280 x 720px. ITB-500HD contains an Uninterrupted-Power Cable (UPC) function for using the product as a surveillance camera when the vehicle engine is stopped (parking mode).
  • Page 5 Main features The devices generates 3 file types of data captured by the built-in 3 axis G-force sensor is displayed in the ITB PC Player software. When the memory capacity of the SD card has been filled, the oldest video data on the SD card will be overwritten to allow new footage to be recorded.

  • Page 6: Safety Instruction - Warning

    Safety Instructions - Warning Do not try to operate the product when driving. Do not disassemble, repair or modify the product. This will void the warranty and will result in the manufacturer not being held responsible for any issues or damage caused to the product.

  • Page 7: Safety Instruction - Caution

    Safety Instructions- Caution Place the product in an unobstructed place to optimize viewing performance. Mounting the cameras behind tinting or obstacles will effect the recording vision quality. Please clean the lens of camera regularly to ensure recorded footage is clear. If you need to re-install or change the location of the product, please recheck the angle of the camera lens to ensure proper recording and confirm its recording status on playback.

  • Page 8: Attention To Sd Memory Card

    Attention to SD memory card The SD memory card has a limited lifetime and may be unable to store new data after a certain period of time. In order to extend its lifetime, we recommend you format the SD memory card periodically (once per week). If the SD card fails please purchase a new SD Memory card and replace the old one.

  • Page 9: Attention To Gps

    Attention to GPS (optional for ITB500HD) Please note GPS connectivity can take up to 10 minutes to connect depending on the gps receiver’s view of the sky and position of satellites. The processing time for a gps connection will vary depending on certain factors such as weather conditions, the vehicles surroundings and the position of satellites.

  • Page 10: Components

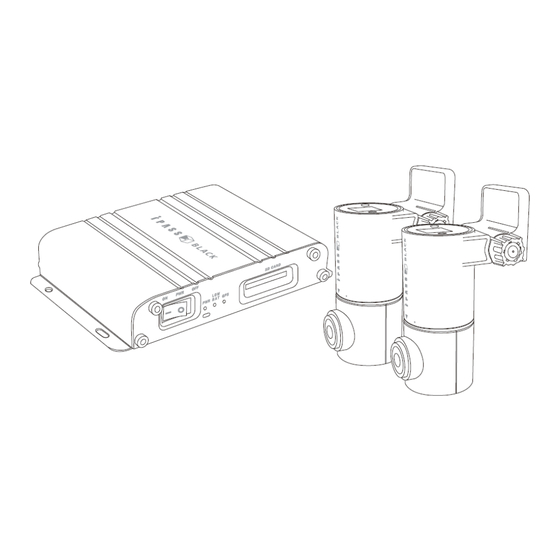

    Components Adhesive tape for Adhesive tape for Mounting Cradle Main unit Cameras (2) cameras main unit (spare, 2EA) (spare, 2EA) SD memory card SD card reader Cable holder User manual Power cable Camera Camera External GPS Video Out Cable Cigar jack type Connecting Cable Connecting Cable ( Option)

  • Page 11: Name Of The Product Details

    Name of the product details M a i n u n i t ( f r o n t ) 1 ) P o w e r o n / o f f s w i t c h 2 ) P o w e r - o n L E D I n d i c a t o r 3 ) L o w b a t t e r y w a r n i n g L E D i n d i c a t o r 4 ) G P S s t a t u s i n d i c a t o r 5 ) S D m e m o r y c a r d s l o t...

  • Page 12: Installation

    Installation Assemble the camera with mounting cradle and fix it to the window shield. (Clean the window shield before fixing it) Put the connecting cable into the camera port of main unit and connect it with each of the cameras. Please install two cameras (Front and Rear) in the same way as above procedure.
  • Page 13 Installation Fix the main unit to a suitable, accessible location with some ventilation. Use the provided 3M tape or mount with screws so the install is secure. Align the direct of the camera lens to the front referring to the camera direction alignment guide (arrow make printed on each camera.
  • Page 14 How to Connect Power This product contains an Uninterrupted-Power Cable (UPC) function for using the product as a surveillance camera when the vehicle engine is stopped. However, when you connect UPC, it is highly recommended to use our authentic UPC which has battery protection circuit in order to prevent the vehicle battery from discharging.
  • Page 15 Specifications of of connecting cables Type Images Specificaitons Diameter : 3.5 Power cable Diameter: 1.3 GPS cable 1. Video AV cable 2. GND Camera cable...

  • Page 16: Operation Of The Product

    Operation of the product Turn on the power of the vehicle, the POWER LED turns on. 3 low to high tone beep sounds will be heard after 30 seconds when the POWER LED turns on, the product starts recording. The video and audio data are continuously recorded and stored into SD memory card.
  • Page 17 Operation of Auto Parking Mode A n A u t o P a r k i n g M o d e S w i t c h i n g f u n c t i o n i s b u i l t i n t o t h i s d e v i c e . I n t h e i n s t a n c e o f l o n g - t e r m p a r k i n g , y o u c a n s w i t c h o r r e l e a s e a u t o p a r k i n g m o d e b y u s i n g t h e b u i l t - i n 3 - a x i s a c c e l e r a t i o n s e n s o r .
  • Page 18 * Table of error beeps Type of beep Root cause Troubleshooting No SD memory card or SD Insert the SD memory card or 4 times short beeps ( repeatedly ) memory card related error Format the SD card and try again Correct the time manually in the settings menu of the PC Player.

  • Page 19: Installation Of The Pc Player

    Installation of the PC player You can play back the recorded video and audio data on a PC via the ITB PC player supplied by the manufacturer. This PC player program is designed to run best in Windows XP, Windows Vista, and Windows 7 (32 bit).
  • Page 20 Installation of the PC player Once you have the PC player installation file located. Open and run the program and click Ok or Yes to allow the installation to start. Follow the prompts and allow the program to install the files onto your computer.

  • Page 21: How To Play The Video

    How to play the Video Pull out the SD memory card from the main unit and insert it into the memory card reader as shown on the left picture. Then put the memory card reader into the USB port of the PC. Click on the shortcut icon of the PC player.
  • Page 22 How to play the Video If no footage is shown straight away. Firstly try to select the appropriate SD memory card and click the OK button. If no footage is shown, please check to make sure data has been recorded onto the SD memory card All files on the SD memory card will be loaded onto the right window and will playback one by...
  • Page 23 How to play the Video The graph shown under the playback screen means the degree of X axis ( front and back), Y axis (left and right), and Z axis ( up and down) impacts when an event occurs. The driving speed and GPS status displays on the top of the playback screen if the external GPS receiver is connected.
  • Page 24 How to play the video • You can move, select, play, or delete the recorded files by using your PC Keyboard in the File List Window of the PC Player. Please refer below for more details. (1) “Shift” Key + File Selection: Select the continuous group of files of the list. (2) “Ctrl”...

  • Page 25: Function Keys In The Pc Player

    Function keys in the PC player...
  • Page 26 Function keys in the PC player Icons Description Go to previous or next file • Jump to 10 seconds previous or after image • Play • Pause • Video brightness control • Night Vision (*) • 180 degree rotate for reversed images •...

  • Page 27: File Management In The Pc Player

    File management in the PC player...
  • Page 28 File management in the PC player B u t t o n F u n c t i o n D e s c r i p t i o n S e l e c t S D M e m o r y C a r d w h i c h s a v e s R e c o r d e d I m a g e t o p l a y o r S e l e c t S D M e m o r y C a r d t o f o r m a t R e a d R e c o r d e d F i l e s...

  • Page 29: How To Change The User Setting

    How to change the user setting Setting Driving Mode Version of the PC Player: Displays the version of the PC player. Recording Mode: Set the Recording Resolution Front Brightness: Set the brightness of Recording Image of Front camera Rear Brightness : Set the brightness of Recording image of Rear camera. Shock-sensitivity while driving: Set the sensitivity of 3-axis acceleration sensor while driving.
  • Page 30 How to change the user settings General Setting Shock-Sensing Sound Alarm : Set the Sound Alarm announcement when recording Event File by impact sensing on the vehicle. However, you can not use this function in case the shock sensing menu while driving is set to OFF at Driving Setting Mode.

  • Page 31: How To Manage The Recorded Files

    How to manage the recorded files-PC Player...
  • Page 32 How to manage the recorded files-PC Player...
  • Page 33 How to manage the recorded files-PC Player This product saves the image based on always-recording type except parking mode. However, as per the circumstances at the time of image recording, it classifies by normal recording while driving/event recording while driving or while parking and saves to memory allocation as per user setting values.
  • Page 34 How to manage the recorded files-PC USB Disc This product saves the image based on always-recording type except parking mode. However, as per the circumstances at the time of image recording, it classifies by normal recording while driving/event recording while driving or while parking and saves to memory allocation as per user setting values.
  • Page 35 How to update the product firmware The firmware of the product can be updated easily if any new firmware is released for the purpose of improvement and/or correction of the product firmware. Download the new firmware from the web site of your local authorized product supplier.
  • Page 36 How to update the product firmware Please copy the firmware file into the root directory of SD memory card. *Please format the SD card before copying the new firmware file to the SD card. Pull out the SD memory card from the PC and insert it into the main unit.

  • Page 37: How To Format The Sd Memory Card

    How to format the SD memory card- method 1...
  • Page 38 How to format the SD memory card- method 1...
  • Page 39 How to format the SD memory card- method 2 You can format the SD memory card while the system is operating in your car. Press and hold the mic off/on button for more than 5 seconds, the format will start with a short beeping sound. 2.
  • Page 40 Setting Audio Recording On/Off *As this product has a built-in microphone, in case of privacy invasion when recording voice of people inside the vehicle, you can easily change the setting of audio recording in the vehicle. For more details, please refer to the informaiton below. Press Microphone On/Off button at the bottom of the front camera short.

  • Page 41: Specifications

    Specifications Items Description Type of sensor CMOS – 2Mil pixels Diagonal 120 degrees Camera Recording Coverage Camera spins up to 360 degrees Minimum Illumination 0.9 Lux Data compression H.264 3 axis impact sensor Built – in Recording Resolution 1280 x720 (HD) Frame per second Each 15 fps for Front and Rear Power input...
  • Page 42 User Manual ITB-500HD User Manual Real 2CH HD Vehicle Driving Recorder...
