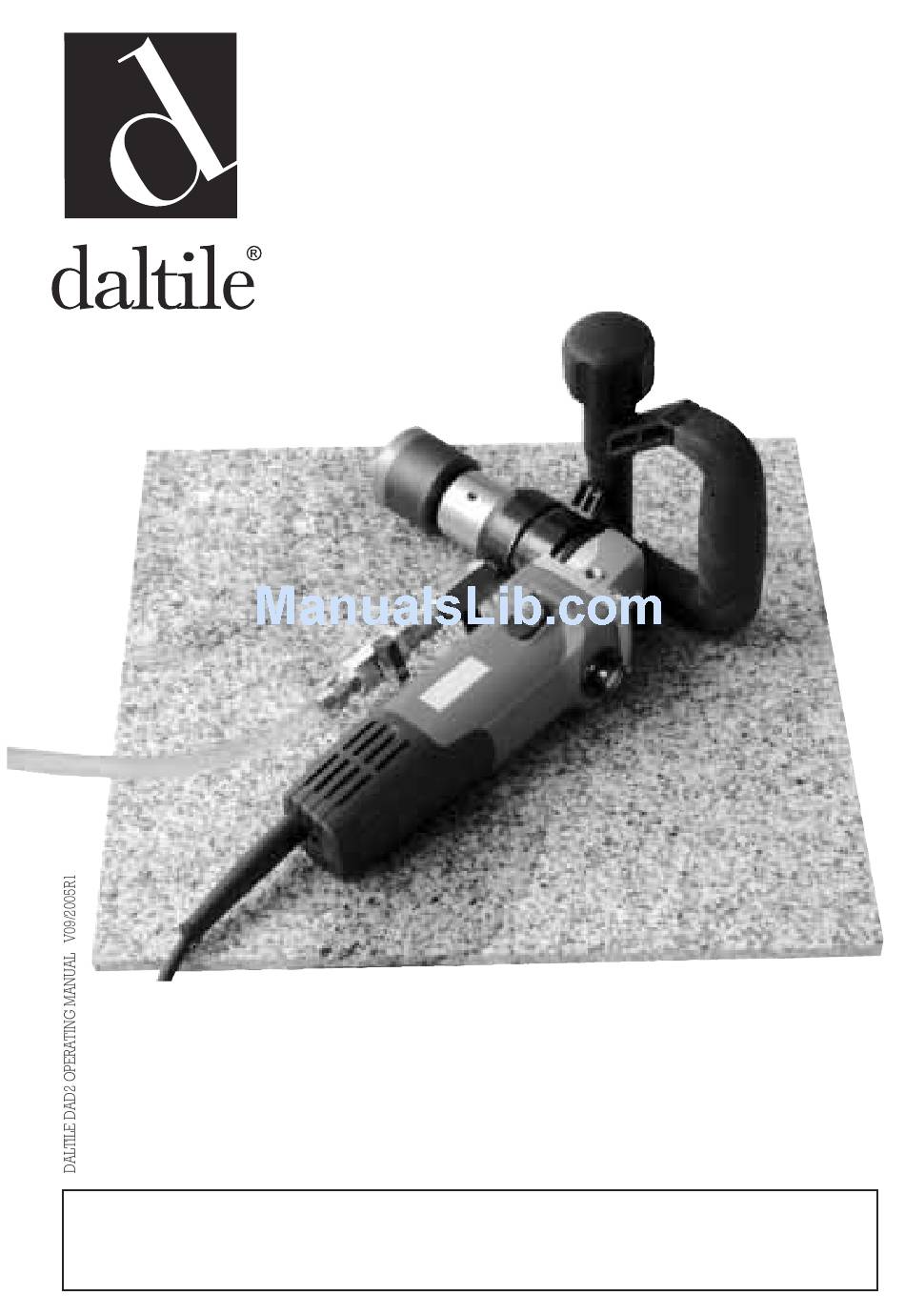

- Page 1 ANGULAR TILE DRILL DAD2 OPERATING MANUAL...
- Page 2 Keep this Manual in a safe place for future reference. Enter the Serial Number of your new Daltile ® Angular Tile Drill DAD2 in the box below. The Serial Number is located on the machine hou- sing PAGE 2 DALTILE DAD2 OPERATING MANUAL V09/2005R1...
-
Page 3: Table Of Contents
3. REPAIR & MAINTENANCE Installation of the diamond bits ........................11 Ventilation Openings in the housing of the machine ................11 Storage after use ............................11 Defects and Faults ............................11 4. DIAMOND TILE BITS Diamond Bits ..............................12 DALTILE DAD2 OPERATING MANUAL V09/2005R1 PAGE 3... -
Page 4: Daltool Safety
It is important that all instructions within this manual be followed. Failure to follow these instructions can lead to irreparable damage. PAGE 4 DALTILE DAD2 OPERATING MANUAL V09/2005R1... - Page 5 There will be no warranty claim. FORCING THE TOOL. The equipment was designed to do a certain job. Do not force the equipment to do something that it wasn’t designed to do. DALTILE DAD2 OPERATING MANUAL V09/2005R1 PAGE 5...
- Page 6 Any part of the machinery that is damaged should be checked carefully to determine whether or not it should be used and whether or not it can function properly for its intended use. PAGE 6 DALTILE DAD2 OPERATING MANUAL V09/2005R1...
-
Page 7: Hazard Symbols
TURN OFF DRILL BEFORE PLUGGING IN It is important to make sure that the switch is in the OFF position before plugging in the machine to prevent accidental starting of the machine. DALTILE DAD2 OPERATING MANUAL V09/2005R1 PAGE 7... -
Page 8: California Proposition 65 Message
TILE DRILL SPECIFIC WARNINGS: Do not touch the diamond bit during operation. Do not leave the machine turned “ON” when not in use. Unplug the machine before changing tools or performing maintenance. Always use coolant water. PAGE 8 DALTILE DAD2 OPERATING MANUAL V09/2005R1... -
Page 9: Machine Specifications
[V DC] Motor [W/HP/Amp] 750/1/7 No Load Speed (stageless) [RPM] 3,000 - 10,000 Max. Bit Capacity [Inch-Metric] 2-51 Spindle Lock Weight [lbs] Accessories: PRCD Cable Dress Stick Diamond Tile Bits see page 12 DALTILE DAD2 OPERATING MANUAL V09/2005R1 PAGE 9... -
Page 10: Check Before Use
Never have the machi- ne rotating when trying to take out the drill. This can damage your machine. Setting the RPM: The DAD2 is equipped with a stageless speed control. (No Load Speed 3000 - 10000 RPM) Use... -
Page 11: Repair & Maintenance
Continuing to use the machine can result in damage to your machine DALTILE DAD2 OPERATING MANUAL V09/2005R1 PAGE 11... -
Page 12: Diamond Tile Bits
9999 540963 ® DalTool 1 1/2” (40 mm) 9999 540964 ® DalTool 1 3/4” (45 mm) 9999 540965 ® DalTool 2” (51 mm) 9999 540966 ® DalTool ® 2 5/8” (68 mm) 9999 541876 PAGE 12 DALTILE DAD2 OPERATING MANUAL V09/2005R1...
