Summary of Contents for LG Art Cool PREMIER

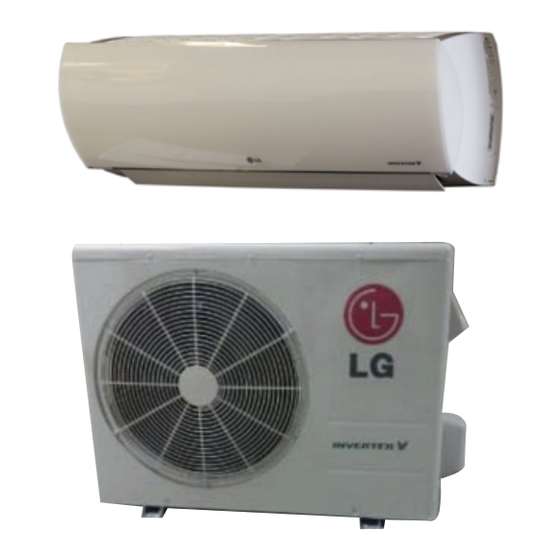

- Page 1 Cool prEMiEr Wall MountEd EnginEEring Manual Art Cool Premier Wall Mounted 3/4 and 1 Ton...
- Page 2 LG Electronics U.S.A., Inc., and are disclosed by LG Electronics U.S.A., Inc., only in confidence. This document is for design purposes only. DFS-EM-AG-001-US_013M12 For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice. ©LG Electronics U.S.A., Inc.
- Page 3 For more information, visit www.lg.com. Quality Commitment duct-Free Split (dFS) Systems LG is committed to the success of DFS projects. We provide industry leading technical support during installation and commissioning. LG LG HVAC systems offer a range of solutions that are cost efficient, offers a variety of classes designed for installers and servicers to quiet and attractive.
-
Page 4: Table Of Contents
Equipment Selection Procedure ............28 ProdUcT dATA ................7 Building Ventilation design Guide ..........29 Product Features and Benefits ............8 Placement considerations .............31 Single Zone Art Cool Premier ............31 Unit nomenclature ................9 Outdoor Installation ...............32 GeneraL data ...................10 rEFrIGErAnT PIPInG dESIGn & Art Cool Premier Pairing Table ............10 LAyoUT BEST PrAcTIcES ............35... -
Page 5: Introduction
InTRoDUCTIon “architectural appeal” on page 6... -
Page 6: Wall Mount
Single Zone inverter Benefits of Single Zone Wall Mount Art cool Premier Wall mount System The Single Zone Art Cool Premier Wall Mount Duct Free Split (DFS) System is • Inverter technology among the industry’s best air-condition- ing units. Choosing an LG Single Zone Wall Mount product provides a system • Available in 9,000 and 12,000 Btu/h capacities... -
Page 7: Product Data
PRoDUCT DATA “product Features and benefits” on page 8 “unit nomenclature” on page 9 “general data” on page 10 “Electrical data” on page 12 “outdoor unit dimensions” on page 13 “indoor unit dimensions” on page 14 “acoustic data” on page 15 “refrigerant Flow diagram”... -
Page 8: Product Features And Benefits
(17dB(A) in sleep mode) and outdoor units product simplify and reduce the mechani- GoldFin™ anti-corrosive coating designed as low as 45 dB(A) at full load. LG custom- cal and control system design time. The to prevent natural surface corrosion of the... -
Page 9: Unit Nomenclature
Single Zone Wall Mount indoor and outdoor units Family LA= Art Cool Premier/ Gallery / Mirror LS= High Efficiency Wall Mount / Standard/ Mega Type n = Indoor Wall Mount Unit U = outdoor Heat Pump Unit nominal Capacity... -
Page 10: General Data
Art Cool Premier Pairing Table The following table shows the available outdoor and indoor unit, along with the factory provided controller. Table 1: Single Zone Art Cool Premier Pairing Table outdoor Unit Model/Btu/h Indoor Unit Model/Btu/h Controller LAU090HYV / 9,000... -
Page 11: Art Cool Premier Specifications
Art Cool Premier Specifications Table 2: Unit General Data Type Art Cool Premier Art Cool Premier System (Model) LA090HYV (LAn090HYV/LAU090HYV) LA120HYV (LAn120HYV/LAU120HYV) nominal Cooling Capacity (Btu/h) 9,000 12,000 Cooling Power Input (kW) 0.56 0.85 nominal Heating Capacity (Btu/h) -
Page 12: General And Electrical Data
This data is rated 0 ft above sea level, with 24.6 ft of refrigerant line per indoor unit and a 0 ft level Piping lengths are equivalent. difference between outdoor and indoor units. Table 3: 208-230V, 60Hz, 1-Phase Single Zone Art Cool Premier Electrical Data Table nom. Compressor(A) Unit Model nos. -
Page 13: Outdoor Unit Dimensions
outdoor unit diMEnSionS LAu090HYV, LAu120HYV Due to our policy of continuous product innovation, some specifications may change without notification. ProduCT dATA | 13... -
Page 14: Indoor Unit Dimensions
indoor unit diMEnSionS LAn090HYV, LAn120HYV Due to our policy of continuous product innovation, some specifications may change without notification. 14 | ProduCT dATA... -
Page 15: Acoustic Data
aCouStiC data Sound Pressure Levels Figure 1: LAn090HYV, LAn120HYV Figure 2: LAU090HYV, LAU120HYV ASNW093MMB8(LAN090HYV) ASUW093MMB8(LAU090HYV) ASNW123MMB8(LAN120HYV) ASUW123MMB8(LAU120HYV) NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 Approximate NC-20 Hearing Threshold NC-15 1000 2000 4000 8000 1000 2000 4000 8000 Octave Band Center Frequency (Hz) Octave Band Center Frequency (Hz) Due to our policy of continuous product innovation, some specifications may change without notification. -
Page 16: Refrigerant Flow Diagram
rEFrigErant FloW diagraM LAn090HYV, LAn120HYV LAu090HYV, LAu120HYV Liquid Side 2-Way Valve Heat Heat Exchanger Exchanger (Evaporator) (Condenser) Gas Side Reversing Valve Accumulator 3-Way Valve Cooling Compressor Heating LOC. Description PCB Connector Indoor air temperature thermistor CN-TH1(Indoor) Water level sensor (Option) CN-TH2 (Indoor) Evaporating middle temperature thermistor CN-TH3 (Indoor) -
Page 17: Wiring Diagram
Wiring diagraM LAn090HYV, LAn120HYV Due to our policy of continuous product innovation, some specifications may change without notification. ProduCT dATA | 17... - Page 18 Wiring diagraM LAu090HYV, LAu120HYV Due to our policy of continuous product innovation, some specifications may change without notification. 18 | ProduCT dATA...
-
Page 19: Accessories
Allows control of indoor unit on / oFF, fan Mode Selection speed, and temperature setpoint. PQRCHCA0QW White Allows control of indoor unit on / oFF, operation LG Programmable mode, occupied / unoccupied temperature PREMTB10U White Thermostat setpoints, fan speed, and airflow direction. - Page 20 aCCESSoriES Table 6: Summary Data—Specialty Application Devices Specialty Application Connects Binary Signals name Model no. Application Description Device Input / output Dry Contact Unit on / oFF, Run Status, PQDSB1 1 / 2 24 VAC Error Status Enables the indoor unit to be controlled and monitored by third-party controls using on / oFF, Mode,...
- Page 21 Monitoring View (lgMV) diagnostic Software and Cable LGMV software allows the service technician or commissioning agent to connect a computer USB port to the outdoor unit main printed circuit board (PCB) using an accessory cable with- out the need for a separate interface device. The main screen for LGMV allows the user to view the following real time data on one screen: • Actual inverter compressor speed...
- Page 22 LG monitoring View (LGmV) diagnostic Software and cable - continued The software is available in a high version with all of the features listed above. The low version has all features as the high version without Target High Pres- sure and Target Low Pressure values shown on main screen.
-
Page 23: Performance Data
PERFoRMAnCE DATA “Cooling Capacity table” on page 24 “heating Capacity table” on page 25... -
Page 24: Cooling Capacity
pErForManCE data Cooling Capacity lan090hyV/lau090hyV Indoor Air Temp. °F DB/°F WB outdoor air temp. 64/53 68/57 72/61 77/64 80/67 86/72 90/75 (°F DB) 5.51 5.82 0.24 5.92 5.74 0.24 6.33 5.65 0.25 6.75 5.57 0.26 6.94 5.49 0.27 7.57 5.38 0.28 7.99 5.30... -
Page 25: Heating Capacity
pErForManCE data Heating Capacity lan090hyV/lau090hyV Indoor Air Temp. °F DB/°F WB outdoor Air Temperature (°F DB) (°F WB) 5.08 0.48 4.93 0.47 4.88 0.47 4.83 0.47 4.79 0.47 4.69 0.46 4.58 0.46 5.90 0.55 5.72 0.55 5.67 0.55 5.61 0.54 5.57 0.54 5.45... - Page 26 26 | ProduCT dATA Due to our policy of continuous product innovation, some specifications may change without notification.
-
Page 27: Application Guidelines
APPLICATIon GUIDELInES “Equipment Selection procedure” on page 28 “building Ventilation design guide” on page 29 “placement Considerations” on page 31... -
Page 28: Equipment Selection Procedure
Cooling / heating Correction Factors For the Art Cool Premier system, calculate the equivalent length of the liquid line from the outdoor unit to the indoor unit. Also, determine the elevation difference of the indoor unit above or below the outdoor unit. Find corresponding cooling or heating capacity correction factors as shown in Figure 5 and Figure 6. -
Page 29: Building Ventilation Design Guide
LG Electronics, U.S.A., Inc., In all cases, the designer, installer, and contractor should understand if the suggested method is used, it is used at their own risk. LG Electronics U.S.A., Inc., takes no responsibility and offers no warranty, expressed or implied, of mer- chantability or fitness of purpose if this method fails to perform as stated or intended. - Page 30 building VEntilation dESign guidE Method 2: unconditioned outdoor air (non-ducted, natural Ventilation) natural ventilation devices, such as operable windows or louvers may be used to ventilate the building when local code permits. The open area of a window or the free area of a louver must meet the minimum percentage of the net occupied floor area. Advantages disadvantages • occupants control the volume of the ventilation air manually.
-
Page 31: Placement Considerations
ConSidErationS Single Zone Art Cool Premier Selecting the best location Select a location for installing the outdoor unit that will meet the following conditions: • Where the unit will not be subjected to direct thermal radiation from other heat sources. -
Page 32: Outdoor Installation
Wind restraints The strength of the Single Zone Art Cool Premier frame is adequate to be used with field-provided wind restraint tie-downs. The overall tie- down configuration must be approved by a local professional engineer. Always refer to local code when designing a wind restraint system. - Page 33 All units are in inches Figure 10: Art Cool Premier outdoor Unit Clearance Figure 11: Art Cool Premier outdoor Unit next to Wall - Clearance Outdoor Unit Clearance...
- Page 34 Due to our policy of continuous product innovation, some specifications may change without notification. 34 | APPLICATIon GuIdeLIneS...
-
Page 35: Refrigerant Piping Design & Layout Best Practices
REFRIGERAnT PIPInG DESIGn & LAYoUT BEST PRACTICES “refrigerant piping design” on page 36 "Selecting Field-Supplied Copper tubing" on page 37 "refrigerant piping System layout" on page 38 "piping Connection" on page 41 "Electrical Connections" on page 43 "Mechanical Specifications" on page 44 "acronyms"... -
Page 36: Refrigerant Piping Design
A Single Zone Art Cool Premier Wall Mount system consists of one outdoor unit and one indoor unit. one of the most critical elements of a Art Cool Premier Wall Mount system is the refrigerant piping. Table 8 below lists pipe length limits that... -
Page 37: Selecting Field-Supplied Copper Tubing
rEFrigErant piping dESign Selecting Field-Supplied Copper Tubing Table 9: Linear Thermal Expansion of Copper Tubing in Inches Fluid Temperature °F Pipe Length 35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 95° 100° 105° 110° 115° 120° 125° 130° 0.04 0.04 0.05... -
Page 38: Installation & Layout Best Practices
inStallation & layout bESt praCtiCES Refrigerant Piping System Layout definitions Physical Pipe Length: Actual length of straight segment(s) of pipe. Equivalent Pipe Length: Actual length of pipe plus equivalent lengths of elbows and valves. layout procedure 1. Draft a one-line diagram of the proposed piping system connect- ing outdoor unit to indoor unit. - Page 39 Components such as oil traps, solenoid valves, filter-dryers, sight glasses, tee fittings, and other after-market accessories are not permitted on the refrigerant piping system between the outdoor unit and the indoor unit. Art Cool Premier Wall Mount air-source systems are provided with redundant systems that assure oil is properly returned to the compressor.
-
Page 40: Pipe Sleeves At Penetrations
Sleeves at penetrations LG requires that all pipe penetrations through walls, floors, and pipes buried underground be properly insulated and routed through an appropriate wall sleeve of sufficient size to prevent compression of refrigerant pipe insulation and free movement of the pipe within the sleeve. -
Page 41: Piping Connection
& layout bESt praCtiCES Piping Connection Single Zone art Cool premier Connections Figure 21: Heat Pump outdoor Unit Removal of Connection Cover Pipe connection for a Single Zone System 1. Remove the connection cover from the unit by loosening the fastening screw (Figure 21). - Page 42 / brazing practices Keep the piping system free of contaminants and debris such as copper burrs, slag, or carbon dust during installation. All joints are brazed in the field. Art Cool Premier refrigeration system components Figure 23: Refrigerant Pipe Brazing...
-
Page 43: Electrical Connections
ElECtriCal ConnECtionS outdoor unit Electrical Connection Figure 24: Electrical Connection to outdoor Unit Procedure 1. Remove the conduit cover from the unit by loosening the fastening screws (Figure 24). 2. Take off the caps on the conduit panel. 3. Connect both the power supply and low volt- Terminal Block 1(L1) 2(L2) 1(L1) 2(L2) -
Page 44: Mechanical Specifications
An LG Single Zone Art Cool Premier system Controls is a DFS system that can operate in either refrigeration oil Control cooling or heating mode. The system... -
Page 45: Acronyms
aCronyMS Table 15: Table of Acronyms Acrylonitrile Butadiene Styrene Kilo Watts Air Conditioner Light Emitting Diode Advanced Control Platform LEED Leadership in Energy and Environmental Design American Society of Heating, Refrigeration, and Thousands BTUs per hour ASHRAE Air Conditioning Maximum Circuit Ampacity American Wire Gauge Maximum overcurrent Protection BLDC... - Page 46 20001747 ISO 9001: 2008 LG ELECTRONICS INC. LG Electronics Commercial Products Support LG Electronics Commercial Air Conditioning Division 1-888-865-3026 USA 11405 old Roswell Road Follow the prompts for commercial A/C products. Alpharetta, Georgia 30009 www.lg-vrf.com DFS-EM-AG-001-US_014A07 Supercedes: DFS-EM-AG-001-US_013M12...
