Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. User Memo: Date of purchase: Dealer name: Dealer address: Dealer website: Dealer email: Dealer phone no.: Please visit us on facebook or twitter! https://www.facebook.com/Maxspect http://twitter.com/maxspectled...

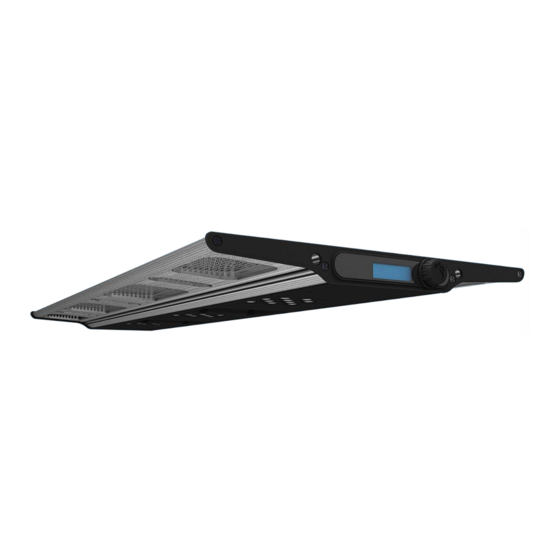

Package Content Please check the content in the package. R420R LED Module Power Supply Unit Stand Self-Adhering Velcro Thumb Screws Hanging Kit (Optional)
Page 4
Precautions Before using this Maxspect™ R420R LED Lighting System please read these operating instructions carefully. Take special care to follow the safety suggestions listed below. Afterwards keep this manual handy for future reference. Before using the Maxspect R420R LED Lighting System ™...
Assemble the Stand. Assemble the stand by inserting the rails into the two holes located to the side of the R420R LED Module, as illustrated in the following diagram. Tighten the Thumb Screws. Tighten the thumb screws to secure the position of the stand.
Page 6
Installation Mounting the LED Module on your Aquarium. Using the provided self-adhering Velcro tapes, attach the stand onto the rim of the aquarium, as illustrated in the following diagrams:...
You can also suspension mount the R420R unit, as illustrated in the following diagram: Mounting the R420R using Ball-Joint System (Sold Separately) If you already own a set of Maxspect™ ball-joint frame stand, you can mount the R420R onto the frame using the same ball-joint system, as illustrated in the following diagrams:...
Operating Instructions Basic Operations Follow the instructions below to operate and program the R420R LED Module. Note The LED Module turns on automatically when power is connected, and turns off when power is cut. When power is resumed, the LED Module will restore to the previous saved setting automatically, whether it was last set at Manual, Preset or Automatic Mode, and the intensity level of all the LED channels.
Operating Instructions Manual Mode “M” Under Manual mode, user can adjust the brightness of the two channels by using the control dial. 1. Press the control dial once to enter setup. Channel A will be selected by default. 100% 100% LED: ON 2.
Page 11
Operating Instructions 4. Rotate the dial to adjust its brightness. (e.g. 100% 85%) LED: ON 5. Press the control dial again to switch to ON/OFF toggle. LED: 6. Rotate the control dial to turn the fixture ON or OFF. LED: 7.
Operating Instructions Preset Mode “P” Under Preset mode, the fixture will be running the following predefined photo-period profiles. Under Preset mode, the LCD panel will display the current time and time-point. (e.g. the following diagram illustrates the current time lies between time-point 3 and 4.) 100% 100% 1.
Operating Instructions Automatic Mode “A” Under the Automatic mode, users can program their own photo-period profile using 6 Time-Points. Understanding Time Points There are a total of 6 Time Points. You can program different luminous output intensity at each Time Point to control the photoperiod and brightness of the system. For example, the following table demonstrates how you could program the Time Points such that the system would increases light gradually from 8:00am, peaks at 10:00am-2:00pm then slowly decreases light until it is turned off at 10:00pm.
Page 14
Operating Instructions Under Automatic mode, similar to the Preset mode, the LCD panel will also display the current time and time-point. (e.g. the following diagram illustrates the current time lies between time-point 3 and 4.) 100% 100% 1. Press the control dial once to enter setup. TIME PROGRAM 2.
Operating Instructions Automatic mode – Setting the clock Once you are in the clock setting mode, the hour digit is selected by default. TIME: Rotate the dial to set the hour. (e.g. 06:30 08:30) TIME: 3. Press the control dial to change to the minute digit. TIME: Rotate the dial to set the minute.
Page 16
Operating Instructions Automatic mode – Programming the Photo-Period Once you are in the program setting mode, Time Point 1 is selected by default. 8:00 100% 100% Rotate the control dial to select the Time Point you want to modify. (e.g. TP1 TP2) 9:00 100%...
Page 17
Operating Instructions 5. Press the control dial to change to Channel A. TP: 2 10:00 A: 100% 100% 6. Rotate the dial to change the brightness. (e.g. 100% 80%) TP: 2 10:00 100% Press the control dial to change to Channel B. TP: 2 10:00 100%...
FROM MISUSE OR ABUSE. DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES: You and any other user of Maxspect Ltd. products shall not be entitled to any consequential or incidental damages, including without limitation, loss of use of the unit, inconvenience, damage to personal property, phone calls, lost income or earnings. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
Specifications LED Module Dimensions (L x W x H) R420R – 160w 690mm × 265mm x 25mm (27” x 10” x 0.9”) R420R – 120w 520mm × 265mm x 25mm (20.5” x 10” x 0.9”) Weight 2 kg (4.4 lb)
