Device Connection Instruction; Boot State - Rikomagic MK802 IIIS User Manual

2. Device connection Instruction

a) Take out the device insert into your TV HDMI port(if there is no enough space
around HDMI interface for MK802IIIS, please use HDMI extend cable), make sure
source is HDMI input mode.(Refer to TV set user manual).
b) Power supply connection: take out Micro USB cable to USB cable, connect the
MK802IIIS with TV via this cable; If the TV USB port can't provide enough current,
please take USB power supply.(Any USB power supply among 5V/1A to 5V/2A are
available).
c) Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host
connector, if only mouse plugged, the device will provide soft keyboard during
operation; If the device detected the physical keyboard, the soft keyboard will be
hidden automatically.
d) Mouse left button for "ok", right button for "return", rolling for page up and page
down, Keep holding left button to drag icon or copy/paste file. Keep holding middle
button to pop up properties.

3. Boot state

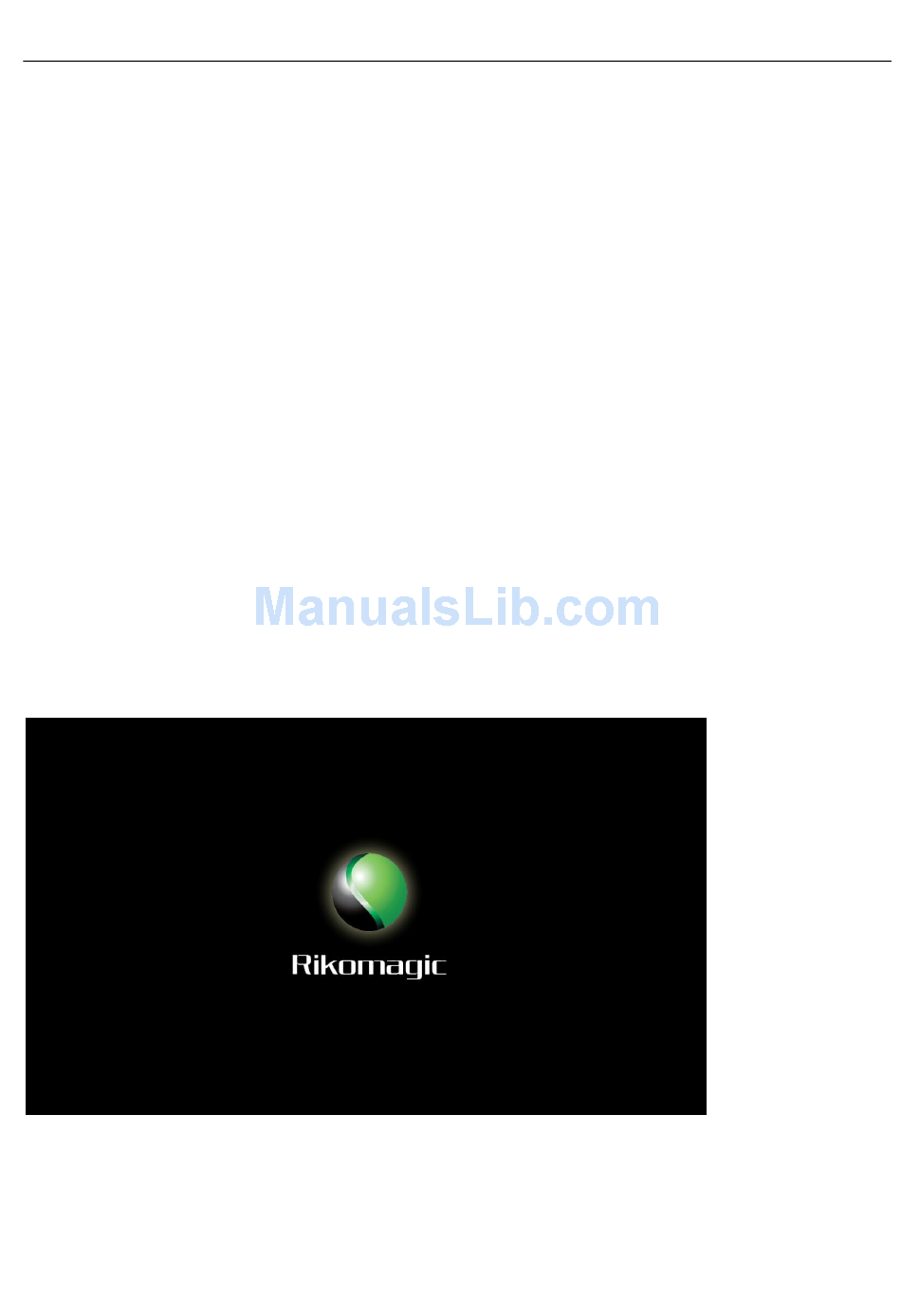

After powered around 10 seconds, the boot screen would appear.
Rikomagic MK802 IIIS User Manual
Page4
