Summary of Contents for Rikomagic MK808 B

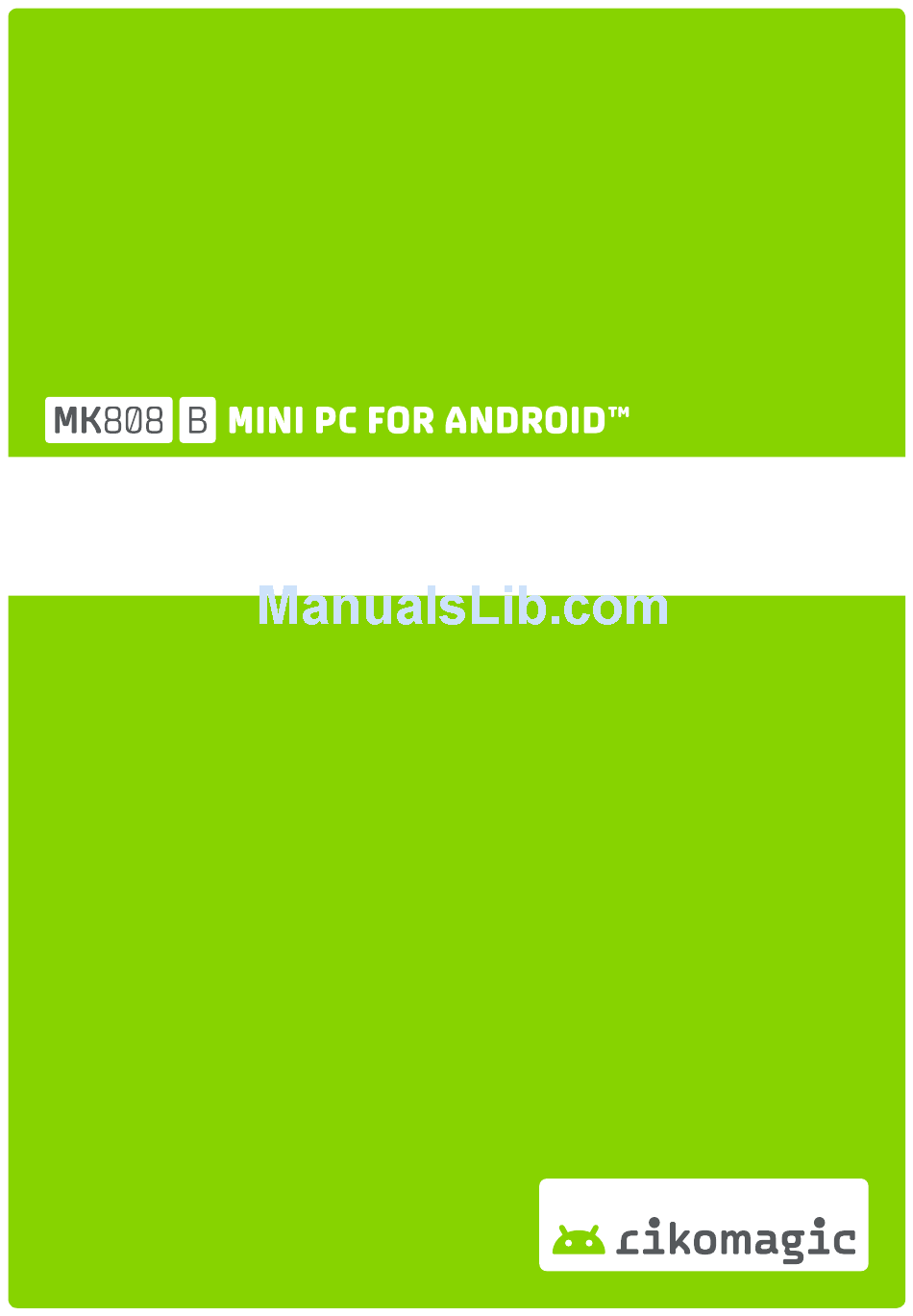

- Page 1 users guide...
-
Page 2: Table Of Contents
Declaration ....................3 Disclaimer ...................... 3 Examples of use ....................3 Product and Accessories ..................3 Interface ......................4 Quick install guide ................... 5 Device connection Instruction ................5 Boot state ...................... 5 Your Homescreen ..................... 6 Settings ...................... 7-9 Applications ....................10 Airplay ......................11 Bluetooth .......................11... -
Page 3: Declaration
The product is not water-proof. All the pictures in the instruction are just for reference. ExAmPlES Of uSE rikomagic mk MK808 B is based on Android OS. You can use it: · Surf the Internet via Wi-Fi · Communicate with your friends via SNS applications ·... -
Page 4: Interface
InTErfAcE 1 = Mini USB support OTG/HOST 2 = TF card slot 3 = Physical button 4 = LED 5 = Mini HDMI port 6 = Standard USB support USB mouse and keyboard 7 = Mini USB for charging... -
Page 5: Quick Install Guide
QuIcK InSTAll GuIDE Normal Condition Insert MINI TV Dongle into TV’s HDMI input interface. Connect Dongle mini USB port to adapter via USB power supply wire for power supply. DEvIcE cOnnEcTIOn InSTrucTIOn Take out the device insert into your TV HDMI port (if there is no enough space around HDMI interface for MK808B, please use HDMI adapter connect), setup the TV data receive mode to HDMI port (Refer to TV set user manual). -
Page 6: Your Homescreen
YOur HOmEScrEEn 1 = Browser 2 = Google Play Store 3 = E-mail program 4 = App manager 5 = File manager 6 = video, music and pictures 7 = Settings 8 = Return button: click to return to the upper level directory 9 = Homepage button: click it anytime to return to homepage 10 = Program button: click to check all the running program 11 = click to increase volume... -
Page 7: Settings
SETTInGS Settings contains most of the customizing and configuration options, such as language, as- pect ratio and network settings. Wireless & networks · Wi-Fi enable and disable · Bluetooth enable and disable · Ethernet enable and disable · Data usage ·... - Page 8 Screenshot-Setting · Select delay time to capture the screen · Set the location of screenshot storage · Show the screenshot button in the statusbar Speicher · Information about storage Apps · Downloaded · On SD card · Running · All users ·...
- Page 9 Accounts · Add Account for Google, Corporate, E-Mail and more Data & time · Automatic data & time · Automatic time zone · Set date · Set time · Select time zone · Use 24-hour format · Choose data format Developer options ·...
-
Page 10: Applications
APPlIcATIOnS Install from uSB flash Drive / Tf card 1. Open the File manager 2. Choose your USB flash drive or any other mass storage’s folder 3. Find you application, and press it 4. Press the install button 5. You can find the application in tab Download &... -
Page 11: Airplay
AIrPlAY/DlnA Airplay By Airplay function, you can take iPhone, iPad music, video and images through wire- less transmission to the MK802 III equipment, and finally appear in the big screen. DlnA DLNA can through the specific applications let you share music, video and images with smart cell phones and tablet PC. -
Page 12: Question And Answer
QuESTIOn & AnSWEr Screen flicker or unstable working please check if the HDMI cable has been connected tightly. Cannot start device please download FW file from Rikomagic official website: www.rikomagic.de / www.rikomagic-forum.de to refresh the device FW. Make sure all the important data has been backup before process it. If the issue still cannot be solved, please contact the distributor which you bought from. -
Page 13: Specifications
SPEcIfIcATIOnS Android-Version 4.2.2 Jelly Bean Processor RK3066 Dual Core 1.2 GHz Cortex-A9 (max. 1.6 GHz) RAM DDR3 1 GB NAND Flash 8 GB¹ TF card slot up to 32 GB Video format WMV, ASF, MP4, 3GP, 3G2, M4V, AVI, MJPEG, RV10, DivX, VC-1, MPEG-2,MPEG-4, H.263, H.264, 1280 x 720p HD 30 fps, 720 x 480 D1 30fps Audio format MP3, WMA, APE, FLAC, AAC, OGG, AC3, WAV Pictures max. -
Page 14: Principal Office And Distribution
Hans-Böckler-Straße 55 58638 Iserlohn Germany DEAlEr InQuIrIES E-Mail: info@satkontor.de TEcHnIcAl SuPPOrT E-Mail: info@satkontor.de OTHEr InfOrmATIOnS Webpage www.rikomagic.de Support-Forum www.rikomagic-forum.de Software-Support www.rikomagic-forum.de Online shop www.rikomagic-shop.de © Satkontor GmbH 2013 all rights reserved, rikomagic and MK802 are registered trademark by Satkontor GmbH...
