Summary of Contents for Rikomagic MK802 III
-
Page 1: Users Guide
Users gUide... -
Page 2: Table Of Contents
Declaration ..............................Disclaimer ..............................Connector ............................... Boot state ..............................Device connection Instruction ......................Main Screen Introduction ........................Settings ..............................Web Browsing ............................Use Android™ Smartphone/Tablet as control system ............Question and Answer ..........................Specification ............................. Principal office and distribution ....................Dealer inquiries ............................ -
Page 3: Declaration
Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. Do not drop or crash the product. -

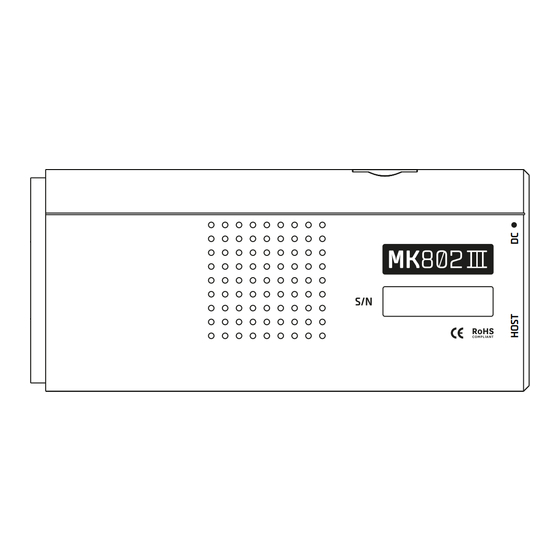

Page 4: Connector
Connector 1 = HDMI High Definition Multimedia Interface Output 2 = USB-2.0 Host Connect with other USB device 3 = USB-Power Connect with TV USB port for charge the unit. 4 = T-Flash Support expanded 2GB-32GB TF card... -
Page 5: Boot State
& paste file. Hold middle button for Properties. Boot state After connect with power adapter for about 10 seconds, the boot screen would appear. Then access to Rikomagic boot logo, for about 30 seconds, device would access to main screen. -
Page 6: Main Screen Introduction
Main Screen Introduction 1 = Move/Delete desktop icon Long-press any icon in the main interface, you could put it in any position as you like, at the same time you could put the other apps shortcut to the main interface. Long press the icon and move it to the right above ×... -
Page 7: Settings
If there is no wireless and have to use cable to access internet. But first, you should buy a USB2.0 LAN Adapter and plug it on USB Host or OTG ports. We recommend the rikomagic RE800 Ethernet Adapter. Notice: The USB2.0 LAN Adapter supported is limited, please reference related type. - Page 8 Storage In this option, user could view local storage space and external storage space, besides, user could uninstall or format storage equipment. Notice: System divided the whole storage into seven area, only two areas vis- ible, the other five areas are taken up by Android system not visible. All the free space are the two visible areas(0.98GB INTERNAL STORAGE + 1.60GB NAND FLASH=2.58GB) Apps...
-
Page 9: Settings
Airplay: By Airplay function, you can take iPhone, iPad music, video and images through wire- less transmission to the MK802 III equipment, and finally appear in the big screen. DLNA: DLNA can through the specific applications let you share music, video and images with smart cell phones and tablet PC. -
Page 10: Web Browsing
Web Browsing When connected Internet, you could use the following android built-in browser, or install other browser 1 = add new webpage 2 = lose opened webpage 3 = back 4 = forward 5 = refresh 6 = Favorites... -
Page 11: Use Android™ Smartphone/Tablet As Control System
3. Install the APK, which you can get from our Database or in the Board (APK name is “RKRemoteControl V1.1.0.apk”) into your Smartphone or Tablet first 4. Access this apk to find rikomagic, then you can control the unit by Android™ Smartphone or Tablet Note:... -
Page 12: Question And Answer
HDMI cable has been connected tightly. Cannot start device please download FW file from Rikomagic official website: www.rikomagic.de / www.rikomagic-forum.de to refresh the device FW. Make sure all the important data has been backup before process it. -
Page 13: Specification
Specifications RK3066 Dual Core 1,6GHz Cortex-A0 Quad- Core 2D/ 3D/ OpenGL ES2.0(AMD Z430)/ OpenVG1.1 Android 4.1 Main Frequency Cortex-A9 up to 1.6GHZ 1024 MB DDR3 RAM Memory 4GB/8GB Expand Micro SD T-Flash (Maximum support 32GB) Ports HDMI(male), Micro SD slot, USB host, USB power port Video Format play various formats Music... -
Page 14: Principal Office And Distribution
Hans-Böckler-Straße 55 58638 Iserlohn Germany Dealer inquiries E-Mail: reseller@satkontor.de Technical support E-Mail: support@satkontor.de Other informations Webpage www.rikomagic.de Support-Forum www.rikomagic-forum.de Software-Support www.rikomagic-forum.de Online shop www.rikomagic-shop.de © Satkontor GmbH 2012 all rights reserved, rikomagic and MK802 are registered trademark by Satkontor GmbH...
