1. Connecting The Serial MODBUS Gateway Hardware
1. Connect Antenna
2. Use communication select jumper to set RS-485 or RS-232C
3. Connect wires from MODBUS to SCADA / PLC / Master

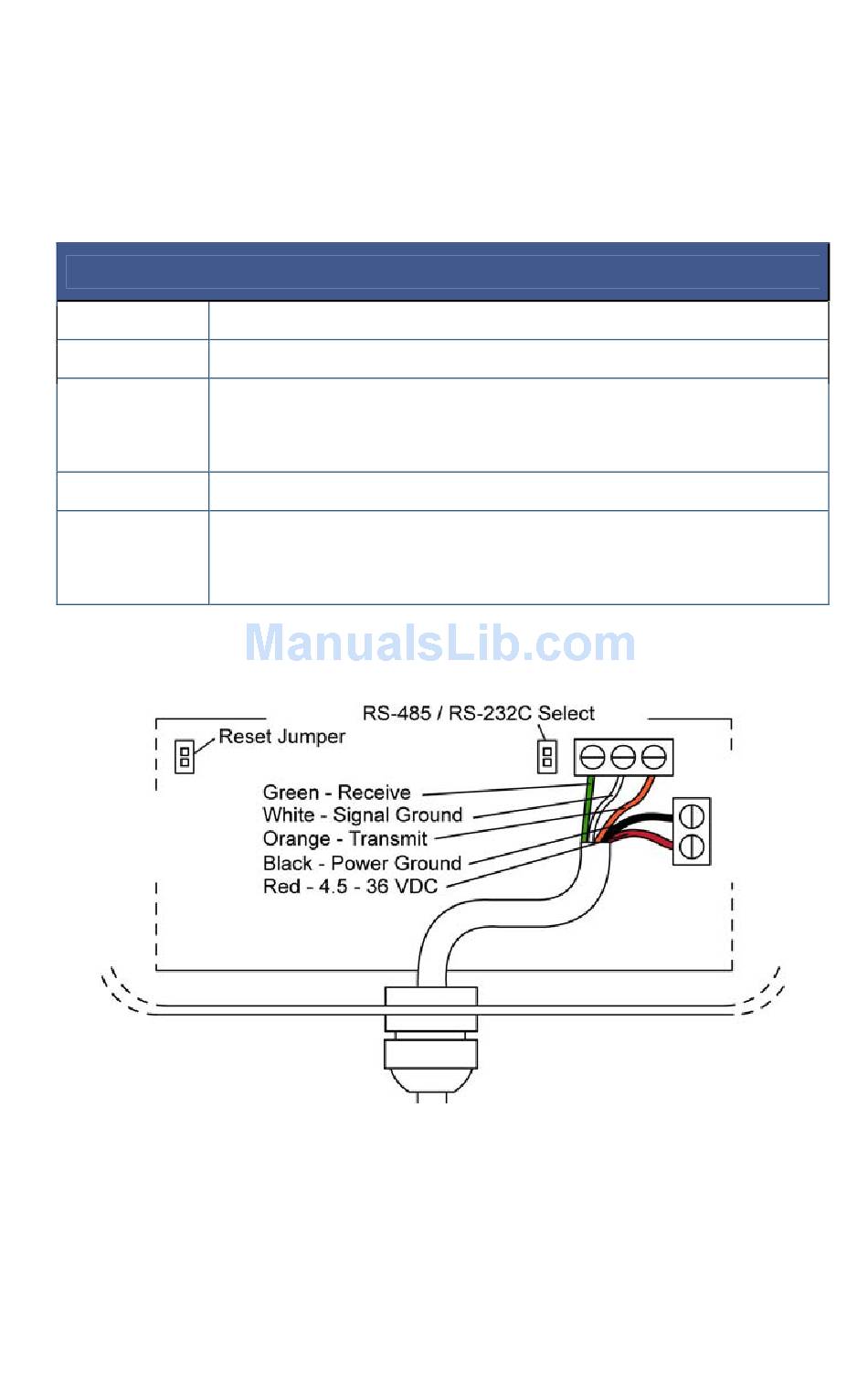

SMG 5-Wire Connector
Red:
Black:
Orange:
White:
Green:
4.5 – 36 VDC
Power ground
RS-232C: TXD gateway's transmitter data connection.
Connect the MODBUS master's receiver.
RS-485: D+ Non-inverting 485 transmitter/receiver.
Signal ground, internally connected to power ground.
RS-232C: RXD gateway's receiver data connection.
Connect the MODBUS master's transmitter.
RS-485: D- Inverting 485 transmitter/receiver.
- 3 -
