JK Audio innkeeper PBX User Manual

Desktop digital hybrid
Hide thumbs Also See for innkeeper PBX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version

Warranty

Innkeeper PBX is covered by a 2-year warranty to be free
from defective workmanship and materials. In the event that
the innkeeper PBX needs repair, you must call us to get an
authorization, and then carefully pack and ship it to us. You
will pay for shipping to us and we will pay for return back to
you, UPS ground. No free repairs will be made if the defect
innkeeper PBX
was caused by misuse, weather conditions, or other cause,
except for defective workmanship or materials. THERE ARE
NO EXPRESSED OR IMPLIED WARRANTIES WHICH

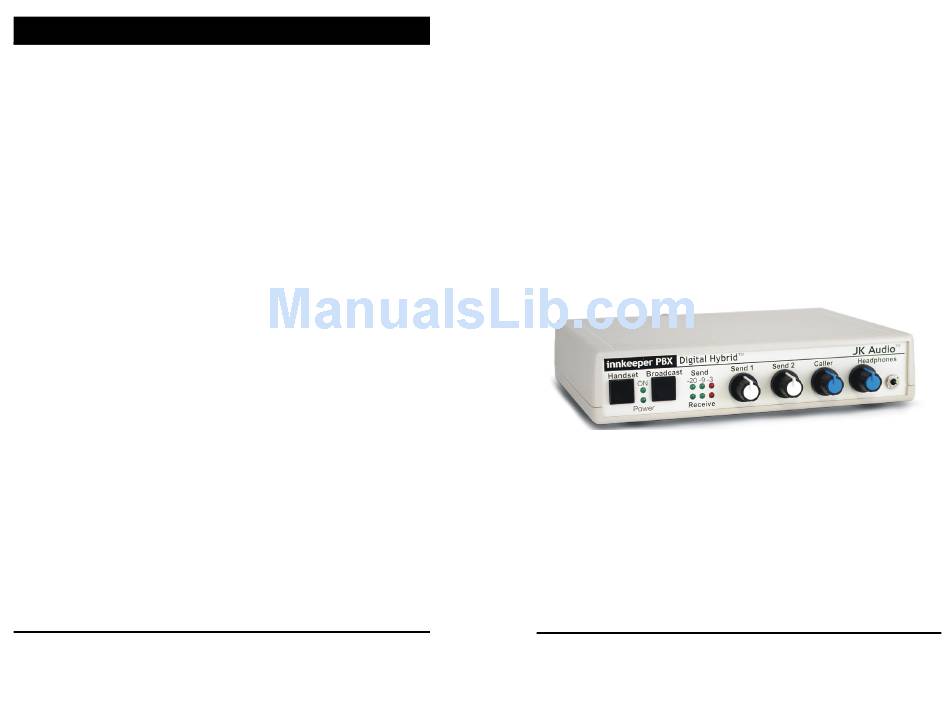

Desktop Digital Hybrid
EXTEND BEYOND THE WARRANTY HERE MADE.

User Guide

03/07
JK Audio
JK Audio, Inc.
1311 E 6th Street, Sandwich, IL 60548
USA
Voice: (815) 786-2929
Toll Free: 800-JK-Audio
Fax: 815-786-8502
info@jkaudio.com
www.jkaudio.com
Copyright © 2007 JK Audio, Inc.
All Rights Reserved.
