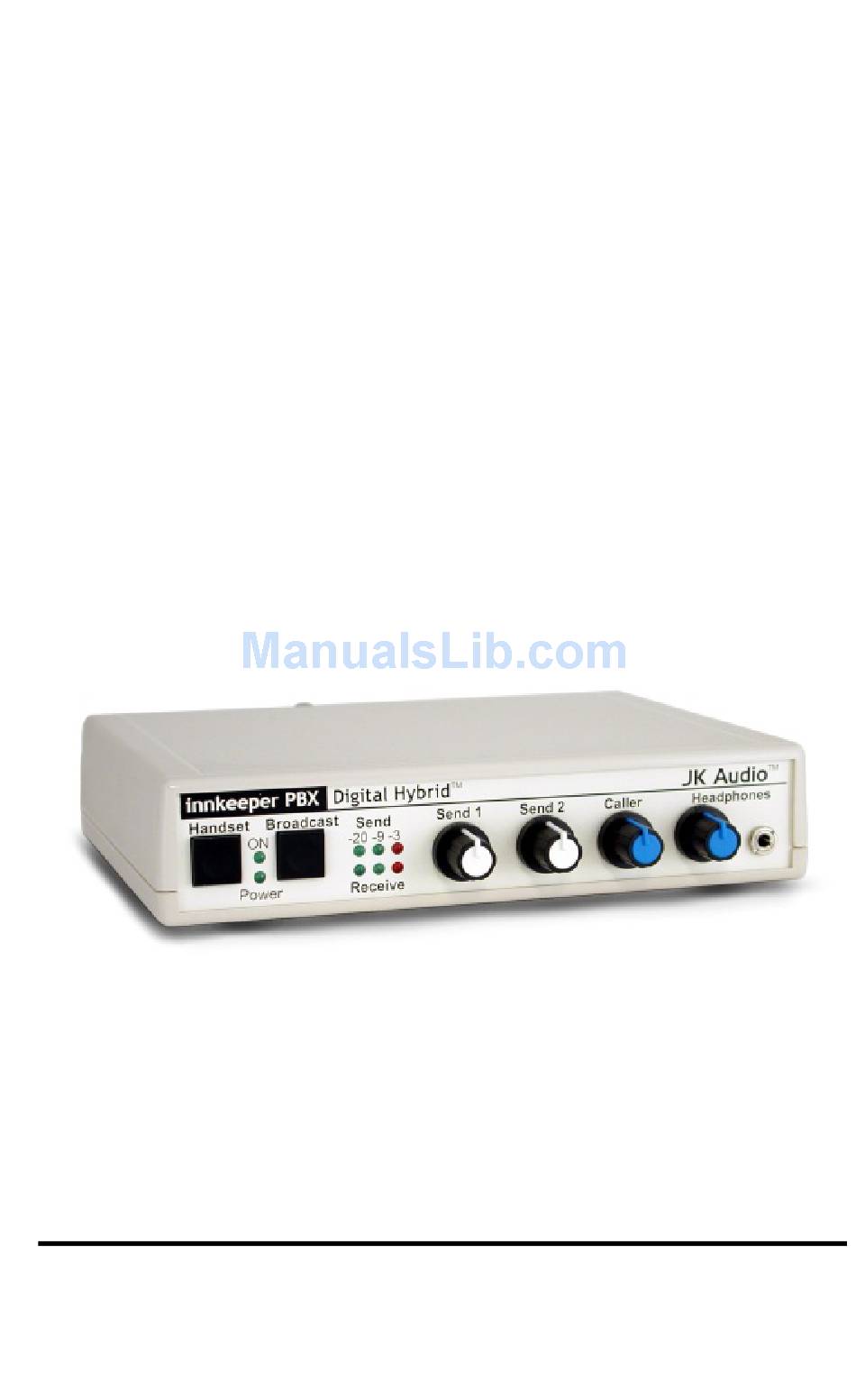

- Page 1 Innkeeper PBX Desktop Digital Hybrid User Guide JK Audio...
- Page 2 Introduction Innkeeper PBX will allow you to send and receive audio through your multi-line PBX, ISDN or analog telephone. While this may seem like a simple task that any telephone can do, the challenge is getting the best quality audio from such a limited audio path.
- Page 3 Features 12 13 17 18 19 20...
- Page 4 Handset Button - Press this button to use the handset as if you were on a normal call. Broadcast Button - Press this button to disable the handset and activate the Innkeeper PBX for use as a digital hybrid. Send 1 Level - Adjusts the signal level that you are sending down the telephone line, through the female XLR input.
- Page 5 Features (cont) Handset Jack - Connect your telephone handset to this jack. Phone Jack - Connect this jack to the handset jack on your telephone using the supplied handset jumper cable. Handset Type Selector Switch - Use this switch to select the correct type of handset microphone that your telephone uses.
- Page 6 Innkeeper PBX marked "Handset". Send Audio - Connect a microphone or mixing console output XLR cable to the Send jack on the Innkeeper PBX. Be sure to set the Innkeeper PBX mic/line switch to the proper position for your application.
- Page 7 Headphone Mix The 3.5 mm headphone jack on the front of Innkeeper PBX is used for monitoring your call. This stereo jack contains a mix of both sides of the conversation on each headphone channel.
- Page 8 A=Electret, B=Carbon, C=Dynamic. Trial and error seems to work best in determining which handset type to use. Your Innkeeper PBX will only function correctly if the handset type selector switch is in the correct position. This switch changes signal level, impedance, and wiring to accommodate the differences in handset microphone types.
- Page 9 Specifications Inputs: Send 1: Balanced Female XLR, 1k ohm, -10 mV RMS (-35 dBv nom) Mic/Line pad switch = +4 dBv max Send 2: 3.5mm mono,20k ohm, 250 mV RMS (-10 dBv nom) Outputs: Balanced: Male XLR, 200 ohm, 500 mV RMS (+4 dBv max) Unbalanced: 3.5mm stereo, 50 ohm, 250 mV RMS (0 dBv...
- Page 10 Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment.
- Page 11 Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified. If this telephone equipment is to be used with a telephone that is leased or owned by another party, permission to connect this telephone equipment to their telephone must first be obtained.
- Page 12 Warranty Innkeeper PBX is covered by a 2-year warranty to be free from defective workmanship and materials. In the event that the Innkeeper PBX needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground.
