Summary of Contents for JK Audio innkeeper PBX

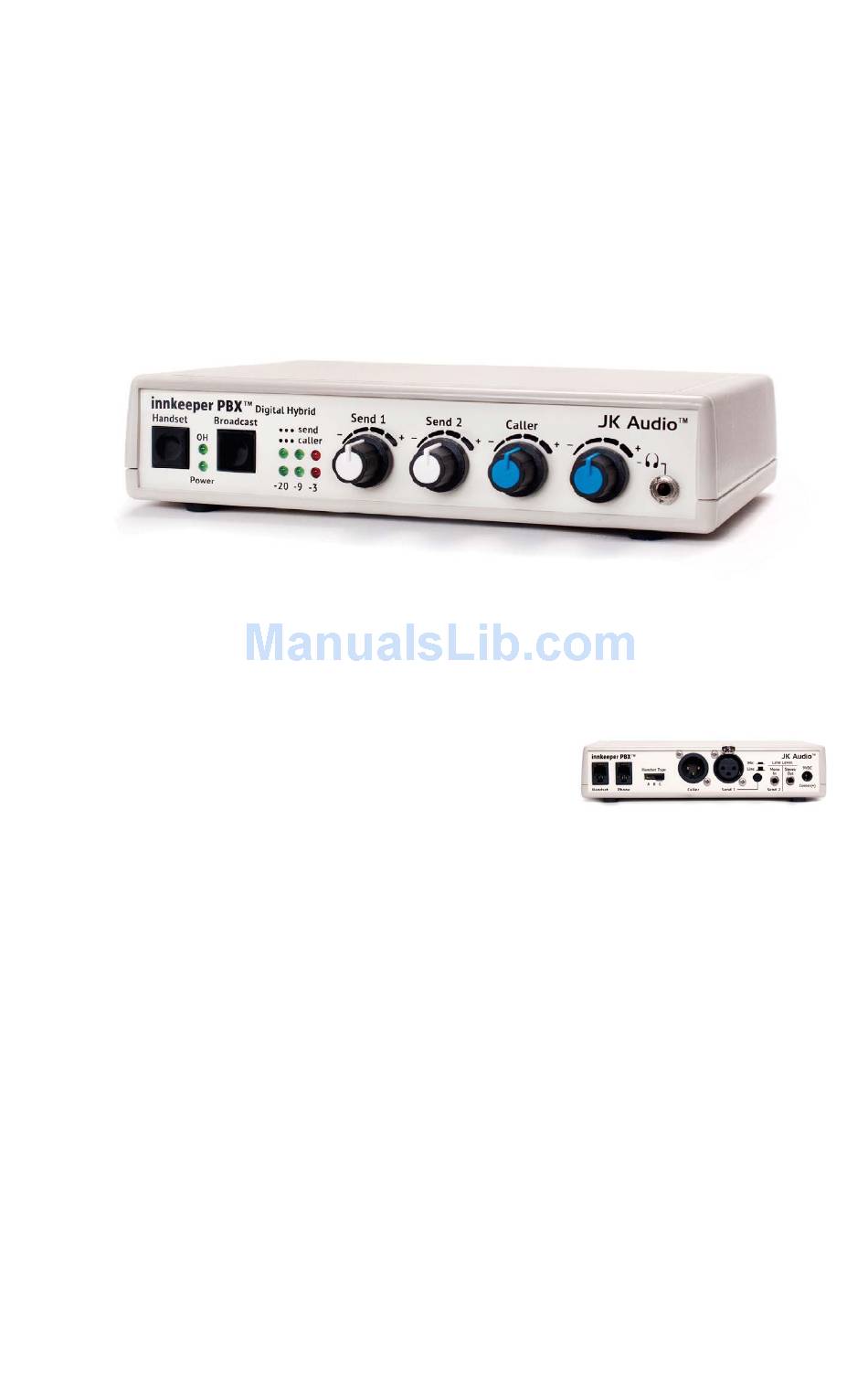

- Page 1 ™ innkeeper PBX VOIP/PBX DESKTOP DIGITAL HYBRID User Guide JK Audio...
-
Page 2: Limited Warranty
Or, check out our FAQ section for answers to common questions. Limited Warranty The innkeeper PBX is covered by a 2 year warranty to be free from defective workmanship and materials. To obtain service, contact JK Audio by phone or email for return authorization. -
Page 3: Table Of Contents
Contents Contents Overview Getting to know your innkeeper PBX ™ 2 Controls & Indicators 4 Inputs & Outputs Getting Connected Operation Configuration FAQs Technical Information Contents... - Page 4 Send XLR Line Input Send and Caller Volume Controls Mic/Line Switch Handset Selector Switch 3.5mm Mono Line Input (Electret, Carbon, Dynamic) Caller XLR Line Output In the Box Universal Power supply with RJ22 Phone Cord detachable cord innkeeper PBX™ VOIP/PBX Desktop Digital Hybrid...
-
Page 5: Overview
What is a Digital Hybrid? The innkeeper PBX digital hybrid connects audio signals to and from the handset side of a telephone without the variations in quality found with analog hybrids. The main function of a hybrid is to bring in the caller’s voice from the phone line as clear and clean as possible. -
Page 6: Getting To Know Your Innkeeper Pbx
Press this button to use the handset as if you were on a normal telephone call. Broadcast Button Press this button to disable the handset and activate the innkeeper PBX for use as a digital hybrid. Send 1 Level Adjusts the signal level that you are sending down the telephone line, through the female XLR input. - Page 7 Getting to Know Your innkeeper PBX Indicators Cont’d OH LED Lit when you are on line with a call (Off-Hook). Send LEDs Displays the signal level going to the phone line. The goal is to drive the phone line audio at levels high enough to avoid phone line noise, but not so loud as to cause excessive clipping.
-
Page 8: Inputs & Outputs
Getting to Know Your innkeeper PBX Inputs & Outputs Handset Jack Connect your telephone handset to this jack. Phone Jack Connect this jack to the handset jack on your telephone using the supplied handset jumper cable. Handset Type Selector Switch Use this switch to select the correct type of handset microphone that your telephone uses. - Page 9 Getting to Know Your innkeeper PBX Inputs & Outputs Cont’d Send 2 Mono Input 3.5mm mono mini jack input for signals going into the phone line. Line level. Stereo Output 3.5 mm stereo mini jack output contains both Send and Caller audio channels with levels determined by the Send 1 and Send 2 level controls and the Caller level control.
-
Page 10: Getting Connected
Setting Up Connect the supplied RJ-22 phone line cable between the jack marked Phone on the back of the innkeeper PBX and to handset jack on the base of your telephone. Connect your telephone handset to the RJ-22 jack on the back of the innkeeper PBX marked “Handset”. - Page 11 Right outputs. Pan all the microphones, etc. to the Left output and pan the Caller to the Right output. Then connect only the Left output to the Innkeeper PBX Send 1. Or, you may use an external Mix-Minus box that will create this signal for you.
-
Page 12: Operation
Broadcast button. Use your telephone to place or screen a call. When you are ready to take the call on innkeeper PBX, simply press the Broadcast button. Innkeeper PBX will automatically release the Hold (if Hold is used). Make sure you do not put the telephone handset back in it’s cradle while you are on a... -
Page 13: Configuration
PBX . While doing this, switch between the three different handset type positions. Choose the position that works best by monitoring the audio quality and Send LEDs. -
Page 14: Faqs
I can’t dial out on my phone and I hear a lot of noise on the call. The innkeeper PBX will not work with any telephone that has a keypad in the handset. You need to use a telephone with a standard handset. - Page 15 PBX phone system as a line selector switch. When the innkeeper PBX is on line, simply select which phone line you want to talk to, either dropping the last caller, or putting them back on hold.
-
Page 16: Technical Information
Phone Line Connector RJ22 Isolation 1500 VAC Frequency Response Telephone Side 200 Hz-3600 Hz Power 120-240 VAC Power Supply Size 7” x 6” x 1.6” (18 x 15 x 4.2 cm) Weight 2.2 lbs. (1kg) innkeeper PBX™ VOIP/PBX Desktop Digital Hybrid... - Page 17 Technical Information innkeeper PBX Block Diagram Block Diagram...
- Page 18 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you’ll be notified by your telephone company.
- Page 19 Changes or modifications not expressly approved by JK Audio can void the user’s authority to operate the equipment. FCC Part 15 Compliance...
- Page 20 ™ innkeeper PBX BROADCAST FIELD MIXER User Guide Version 9/26/13 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2013 JK Audio, Inc. All rights reserved. JK Audio...
