Glazing Cover
(SC204COVER)
SK26 Installation Kit
A
2
1
" - 1
1
2
B
2
Threaded PVC End Caps
C
4
1
1
" Stainless Steel Clamps
2
D
1
3
" Long Rubber Hose
3
4
E
1
Teflon Tape 1/2"
F
4
12" L-Shaped Spikes
G
2
12" Long 1/2" PVC Legs
H
2
1
" FF PVC Couplings
1
2
I
1
6' Flex Hose
J
2
Soft-Sided Pool Adapters
1
Installation Manual w/Warranty Statement
Your SolarArc has been engineered and manufactured in the USA to our highest standards for dependability, durability, ease of
operation and safety. Follow these instructions, and it will heat your pool for many years to come. Thank you for purchasing SolarArc.
Caution:
The SolarArc is designed to be installed on the ground next to your pump and filter system. Please ensure that the installation does not provide children
access to the pool. The recommended installation is on the ground and not mounted on a roof or standing structure. Doing so could damage the
SolarArc and the mounting surface and void your warranty.
Important
• Carefully read this manual. Failure to comply with these instructions can cause injury, death, or damage to the unit.
• Do NOT allow children to operate SolarArc
• Always turn the filter system off when installing, working on, or servicing the SolarArc.
• Install SolarArc far enough away from the pool to prevent children from using it as a way to access the pool.
• When loosening any threaded connections on your filter, pump or pool, be sure that the filter hoses are closed or blocked to prevent water flow.
NOTE: Be sure to place your solar blanket on at night to help retain the heat generated by the SolarArc.

How SolarArc Works:

Water flows from your pool's filter into the bottom left corner (inlet) of the
SolarArc. A baffle built into the lower header pipe of the SolarArc forces the water
up through the left half of the unit. When the water reaches the SolarArc's upper
header pipe, it flows to the right and back down through the right half of the
SolarArc. As the water travels through the SolarArc, it is heated by the sun. The
heated water then flows out of the bottom right corner (outlet) of the SolarArc and
back to your pool.
(732) 730-9880

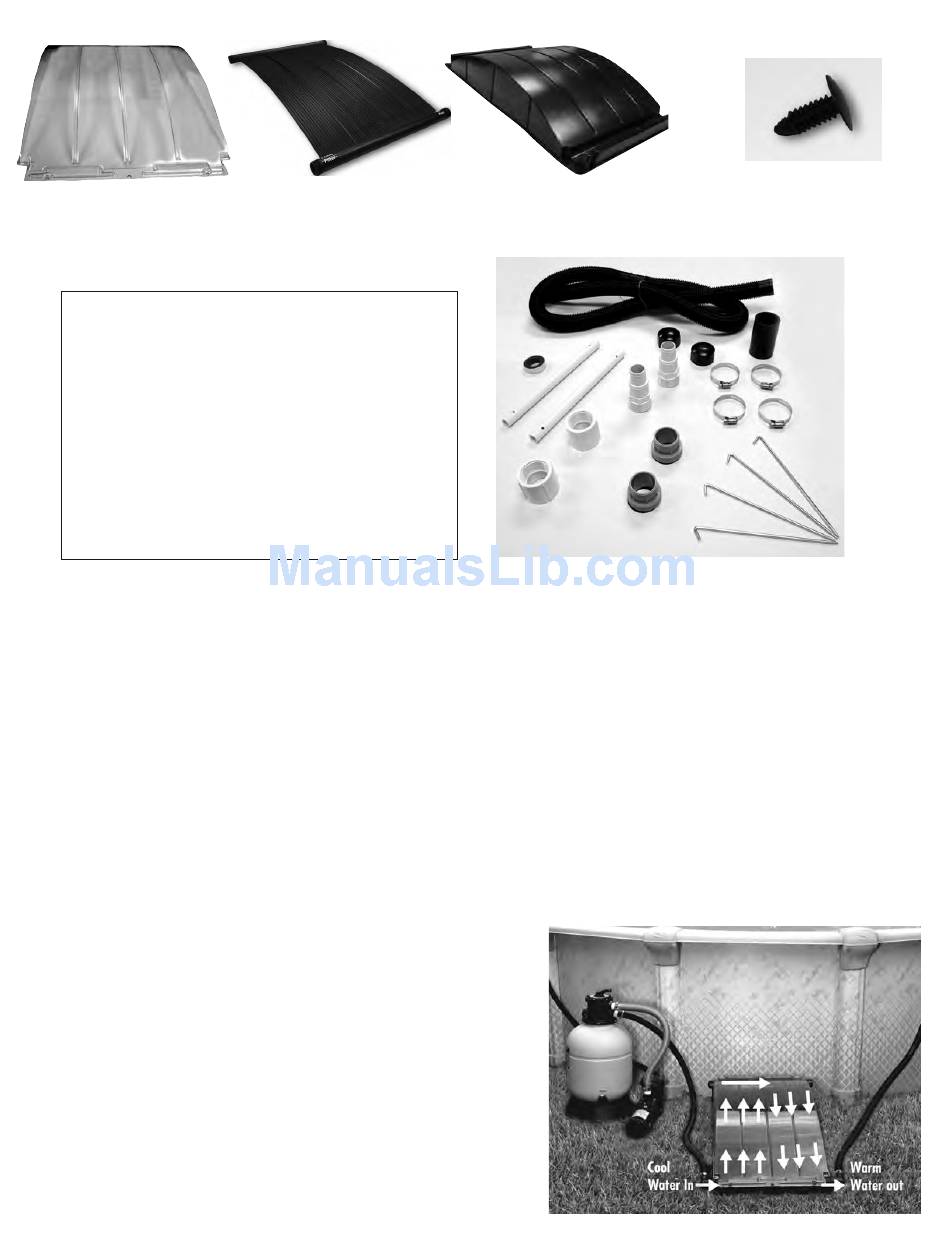

SOLARARC COMPONENTS
2' x 4' Solar Collector
(SCPNL204)
" Pipe Adaptors
1
4
Base
(SC204BASE)
E
G
H
2
16 x Plastic push-in rivets
(SC204FASTENER)
I
D
B
C
A
J
F
