Slope distance

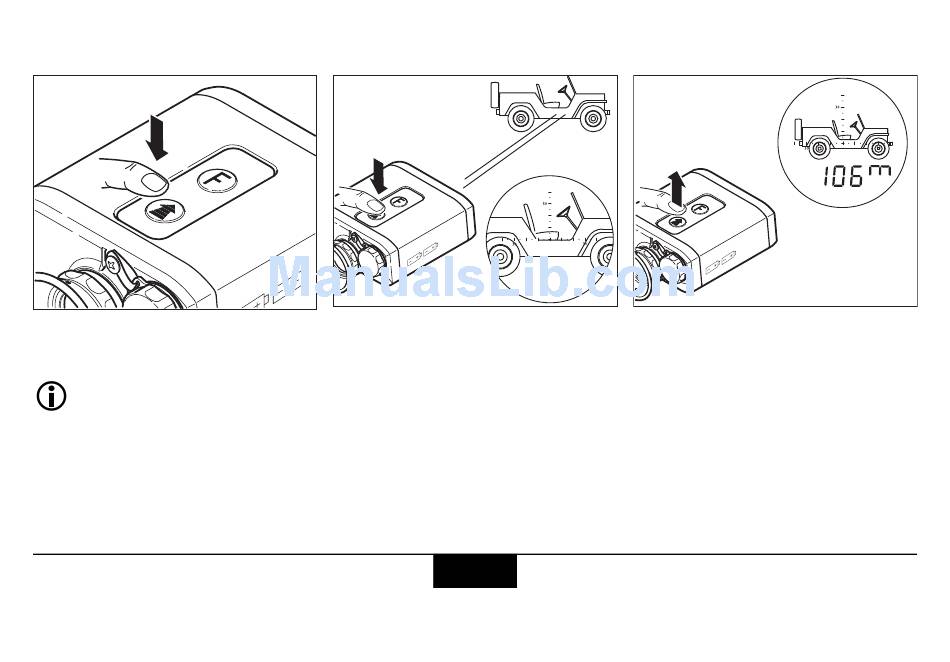

Press and hold the distance
key.
To activated the
illuminated reticle press
the distance button for
at least one second.
Distance Measurements
Sight the object with the reticle. Hold the instrument steady as
www.
Shop for Vectronix products online at:
16
SCOUTBASECAMP
1.877.766.5412
.com
you release the key.
The slope distance appears.
If "- - - -" is displayed, the object
lies outside the measuring
range or the measuring
conditions are poor.
TERRAPIN-1.0en
